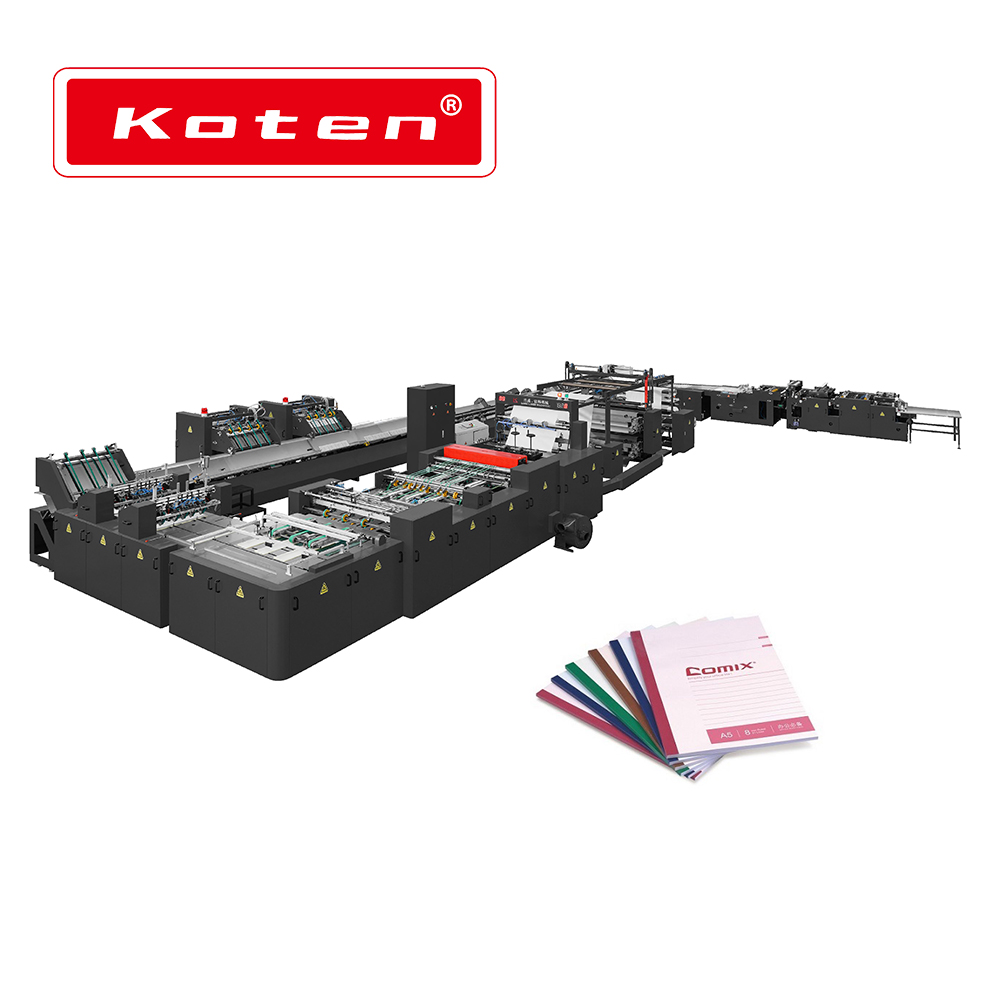

LK-GNB760
Koten
LK-GNB760
Negotiable
One set
T/T,L/C
3sets/month

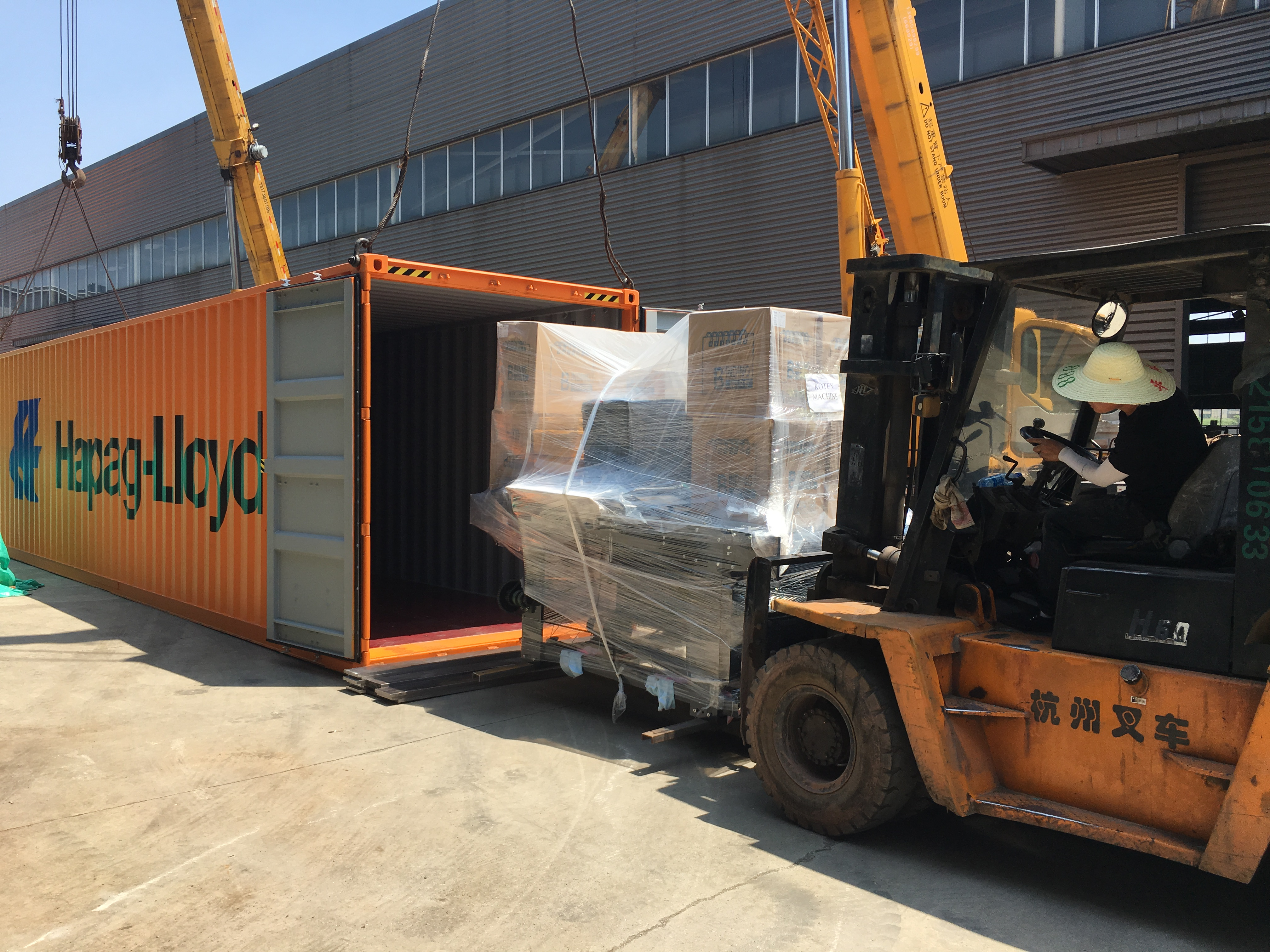

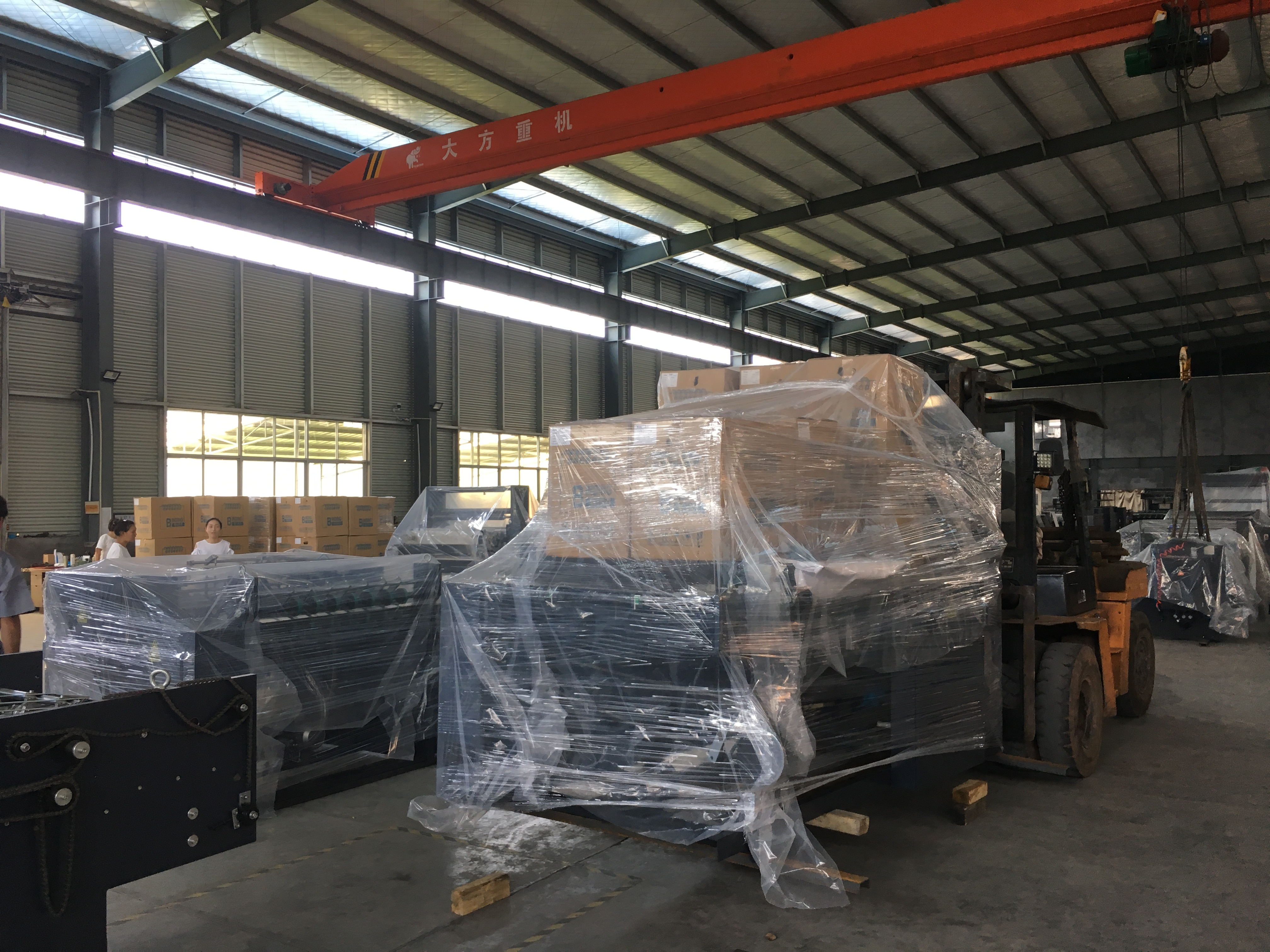

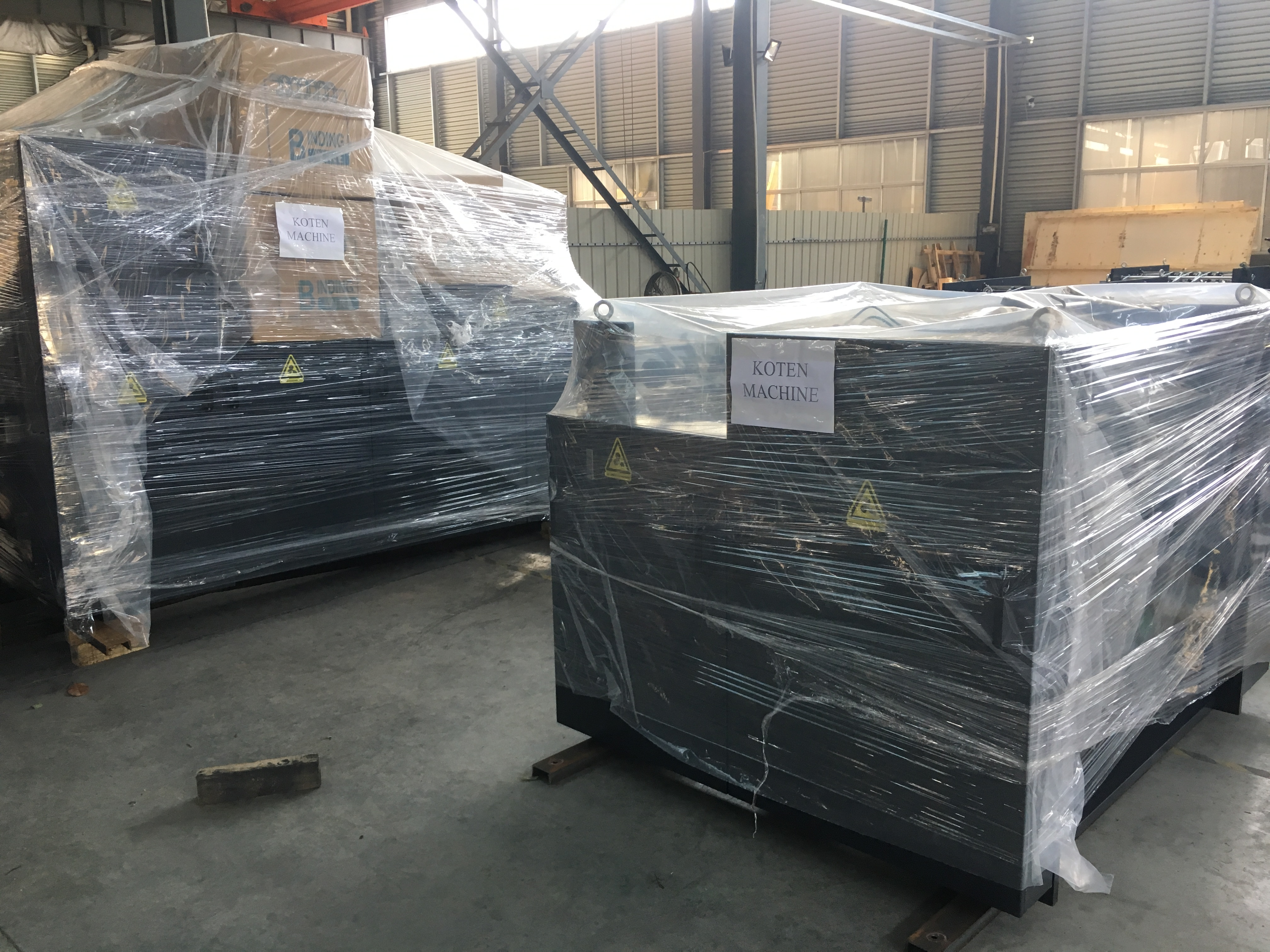

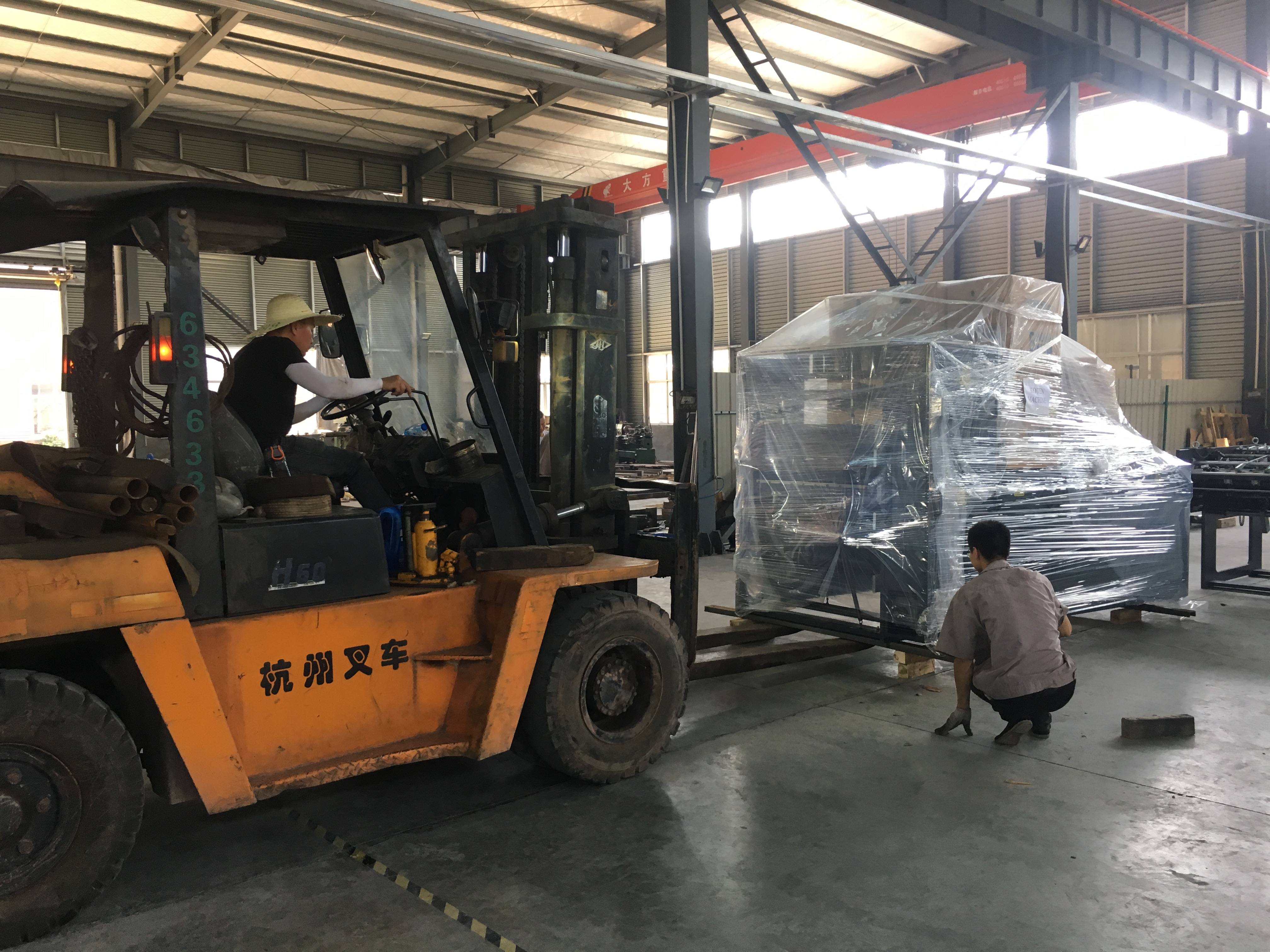

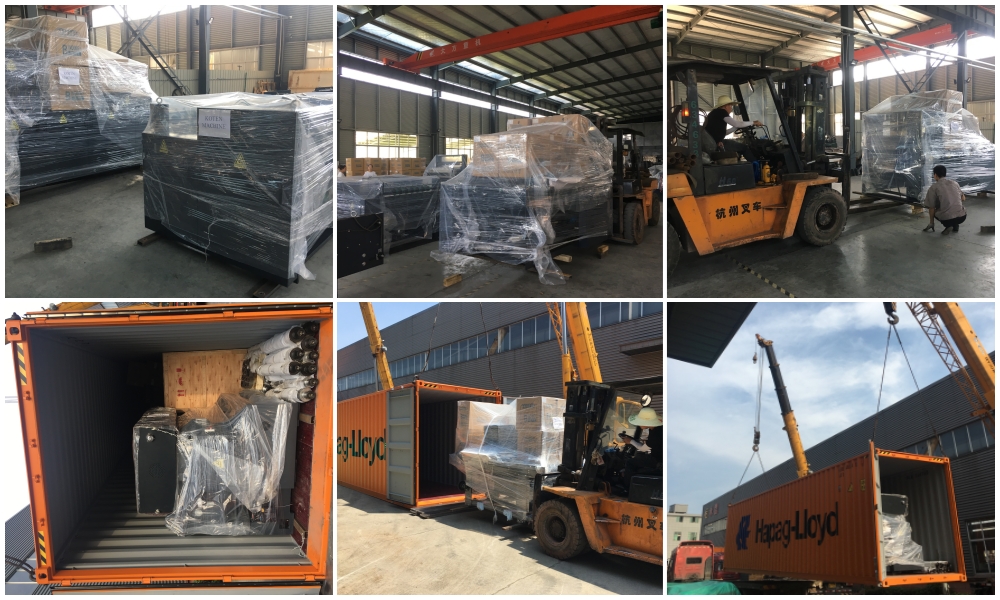

By strong wooden cases
Within 45days after get the deposit.
China
5061
| Quantity: | |
|---|---|
1. High Speed Water Based ink Flexo. ruling
2. Folding and counting
3. Cover feeder for bottom and top covers
4. Feeding, Gluing, Drying, Tape binding
5. Hot stamping(option), sheeting, slitting, finished book collection
Specification/model | LK-GNB760 |
Reel width | 390-1200（mm） |
Max.diameter of web | 1300（mm） |
Printing speed | 0-350 m/min |
Printing-cutting length | 300-800（mm） |
Cutting length | 450-800（mm） |
Counting and collecting | 16-100pages |
MAX.EB.making speed | 40times/min |
Binding size | 120-300（mm） |
Thickness of paper | 43-180gsm |
Cover thickness | 60-500gsm |
Distance of the each binding book | 30-60（mm） |
Width of the paper tape | 20-40（mm） |
Max. Binding thickness | 15（mm） |
Drying Temperature | 0-100 C |
Total power | 50kw |
Machine weight. | 38T |
1. High Speed Water Based ink Flexo. ruling
2. Folding and counting
3. Cover feeder for bottom and top covers
4. Feeding, Gluing, Drying, Tape binding
5. Hot stamping(option), sheeting, slitting, finished book collection
Specification/model | LK-GNB760 |
Reel width | 390-1200（mm） |
Max.diameter of web | 1300（mm） |
Printing speed | 0-350 m/min |
Printing-cutting length | 300-800（mm） |
Cutting length | 450-800（mm） |
Counting and collecting | 16-100pages |
MAX.EB.making speed | 40times/min |
Binding size | 120-300（mm） |
Thickness of paper | 43-180gsm |
Cover thickness | 60-500gsm |
Distance of the each binding book | 30-60（mm） |
Width of the paper tape | 20-40（mm） |
Max. Binding thickness | 15（mm） |
Drying Temperature | 0-100 C |
Total power | 50kw |
Machine weight. | 38T |
