DG-2600
KOTEN
Negotiate
One Set
T/T, L/C at sight
30sets/month
By strong seaworthy export packing
Within 30 days after get the deposit.
China
6165
| Quantity: | |
|---|---|

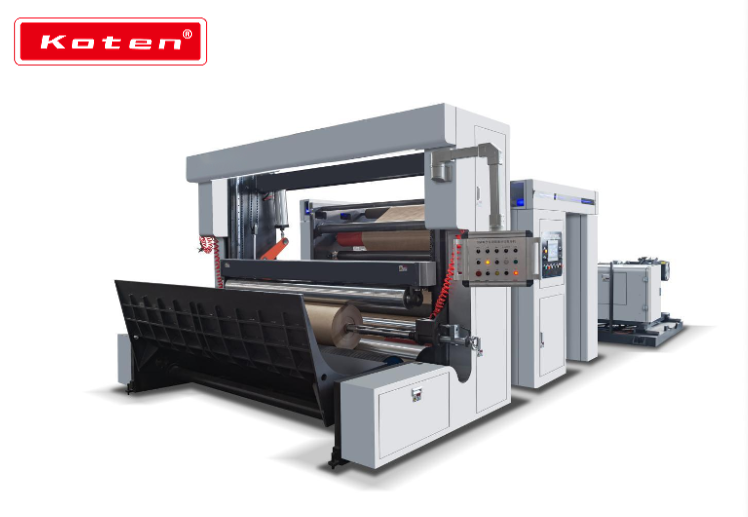

High Speed Rolling Type Slitting Machine
This machine is used for slitting and rewinding various large rolling paper,（60g/m2~550g/m2 non-carbon paper, capacitance paper,Kraft paper）laminated material ,, coated paper etc.
Model | DG-2600 |
Max width of unwinding | 2600mm |
Max diameter of unwinding | Φ1600mm |
Min.width of slitting | 400mm |
Max.diameter of rewinding | Φ1500mm |
Max Speed | 600m/min (according to material) |
Total power | 85KW |
Power supply | 380v.50hz |
Weight | 23000kg |
Overall dimension(LXWXH) | 7500X4800X2650 |
Name | Specification | Qty | Brand name |
Casting frame | Thickness of wallboard 60mm | 1set | |
Airtshaft rewinding 1unit | 1 | SHANGHAI hangdong | |
Main traction roll(mirror steel roller) | Φ500* | 1pcs | Hard chromium plating with glazing. Dynamic balance 500m/min. Precision G1.6 |
Rubber press roller | Φ250* | 1pcs | Imported silica gel, the hardness reach to 70degree, Dynamic balance 500m/min. Precision G1.6 |
Hardness aluminum oxide running roller | φ150* | 8PCS | Hardness oxidation treatment, Dynamic balance 500m/min. Precision G1.6 |
Main machine servo motor | 22KW | 2sets | SNMA |
Rewinder airshaft motor | 1.8KW | 1set | Innovance |
Unwinding Motor brake | 15KW | 2sets | SNMA |
Main traction drive | 22KW | 2sets | GTAKE |
Unwinder servo drive | 15KW | 1set | GTAKE |
Slitting servo drive | 3.7KW | 1set | GTAKE |
Rewinder rise servo drive | 1.8KW | 1 set | Inovance |
Knife motor | 3.7KW | SNMA | |
Motor for blowing the slitter edge | 5.5KW | 1set | Wenzhou |
bearing | some | NSK HRB(guider roller) | |
Electric proportional valve | 2pcs | SMC | |
epc system | 1set | Pausource | |
PLC | SIMATIC S7-200 SMART | 1pcs | SIEMENS |
Slitting air knife | 6 pcs | Taiwan | |
Rewinder air brake | Yishida | ||
10” touch screen | TPC1061Ti | 1pcs | MCGS |
Proximity switch | 1pcs | OMRON from Japan | |
Low-voltage apparatus | some | Schneider | |
Power supply | S100-24 | 1pcs | Taiwan meanwell |
