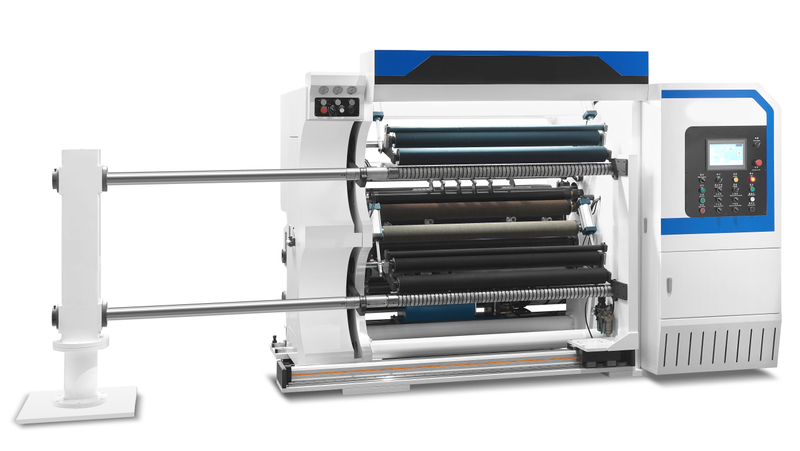

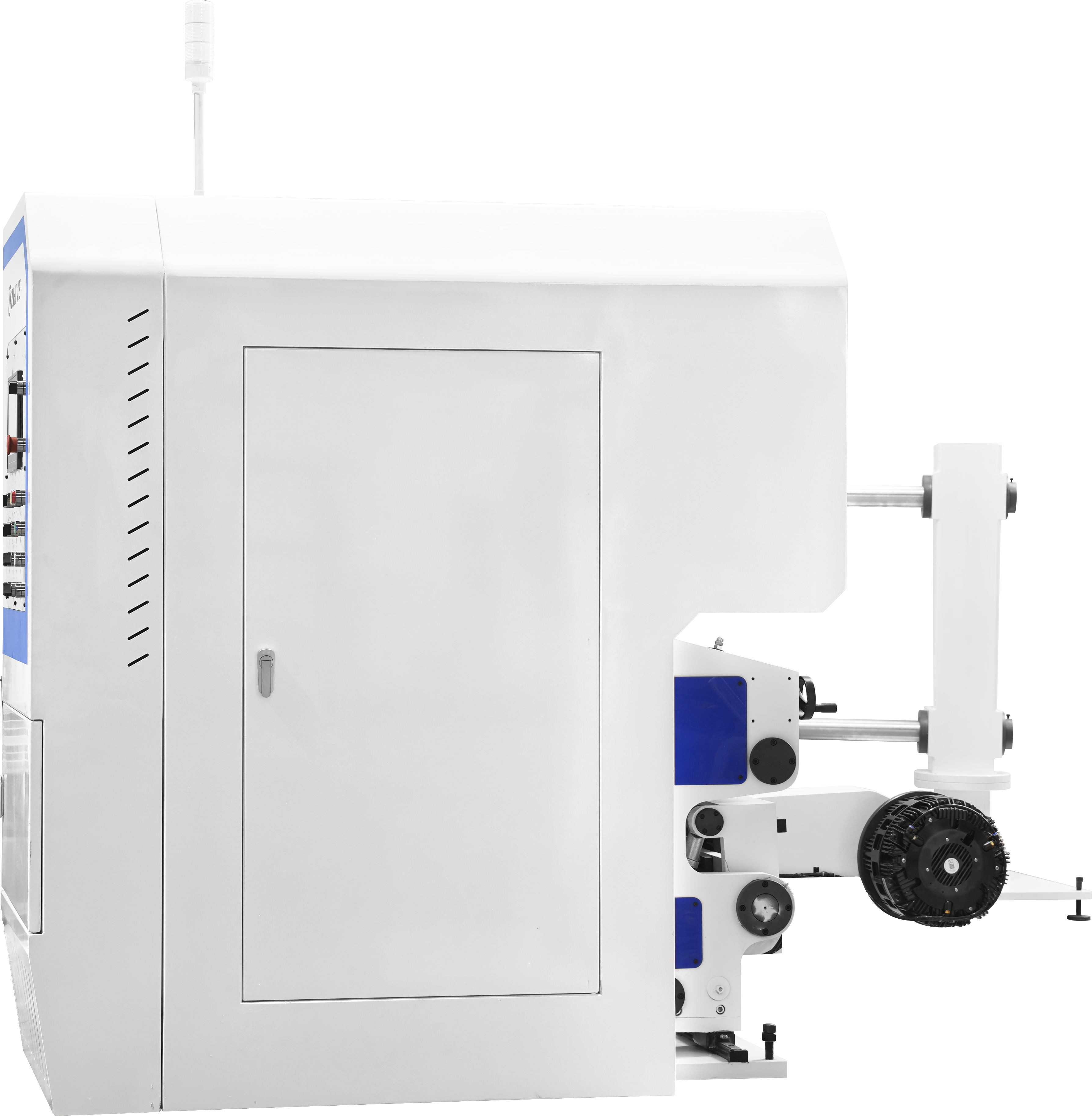

High Speed Slitter Rewinder for Jumbo Roll Paper With 400m/min

Quantity:
  • KTFQ-1300/1600
  • Koten
  • KTFQ-1300/1600
  • Negotiable
  • One Set
  • T/T
  • 50sets/month
  • Strong seaworthy wooden cases
  • Within 30 days after get the deposit.
  • China
  • 293

Usage:
The machine applies to slit cellophane, PET, OPP, CPP, PE, PS, PVC and computer security labels, electronic computers, optical materials, film roll, foil roll, all kinds of paper rolls, film and printing of various materials.,etc

光影魔术手拼图

Main mechanical configuration:

1, Main body unit:

  1. Machine’s main body adopts cast iron and steel structure.(cast iron after secondary operation and setting treatment)

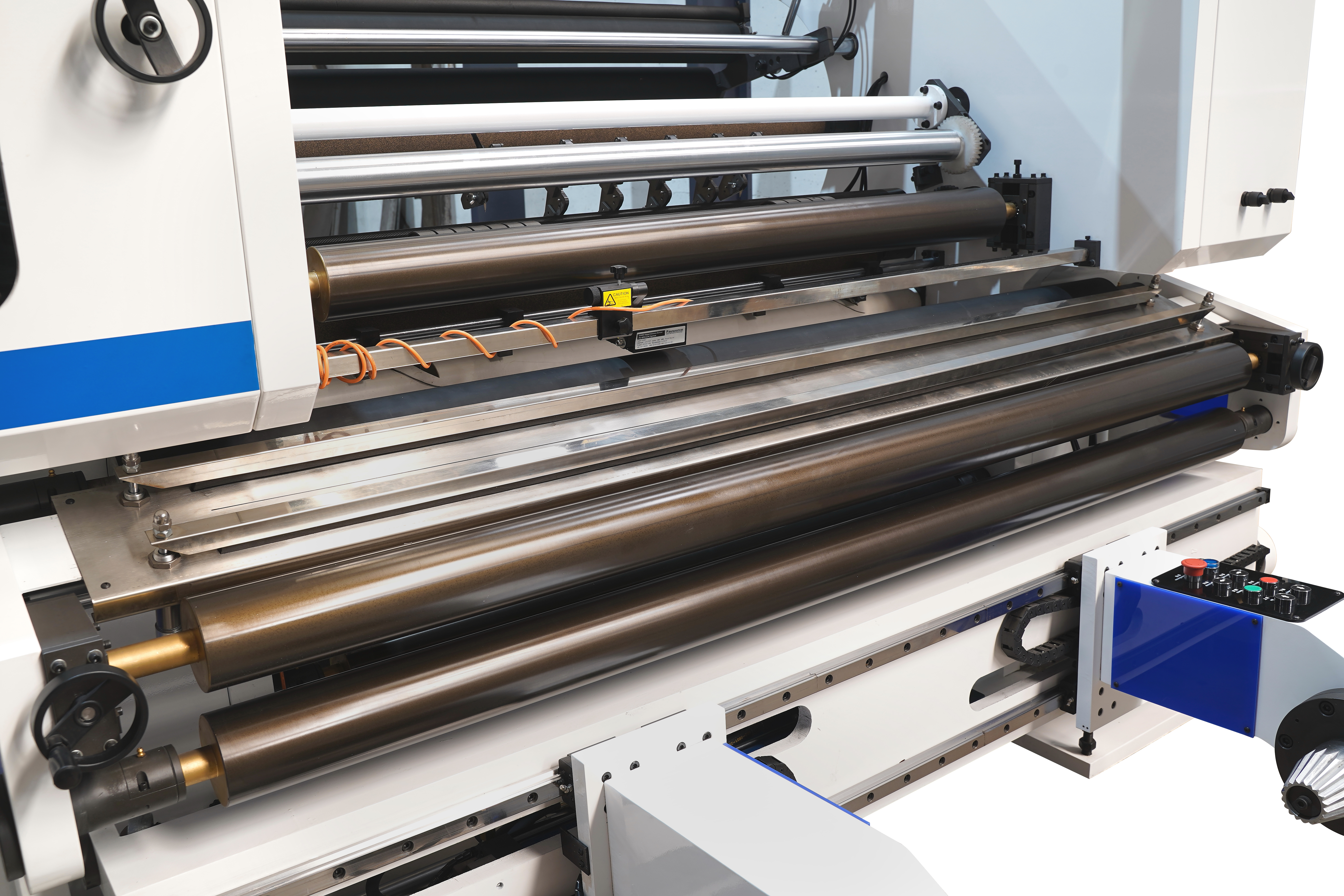

  2. Main driving roller adopts seamless steel pipe (after tempering, surface hardening, chrome plated, mirror surface, dynamic balance treatment)

  3. Main driving press roller adopts rubber roll (nitrile-butadiene rubber)

  4. Material guide rollers adopts steel rolls (aluminum alloy) and rubber roll (nitrile-butadiene rubber)

  5. Driving mode of main body and rewind shafts adopt synchronizing wheel and belt.



2, Unwinding unit:

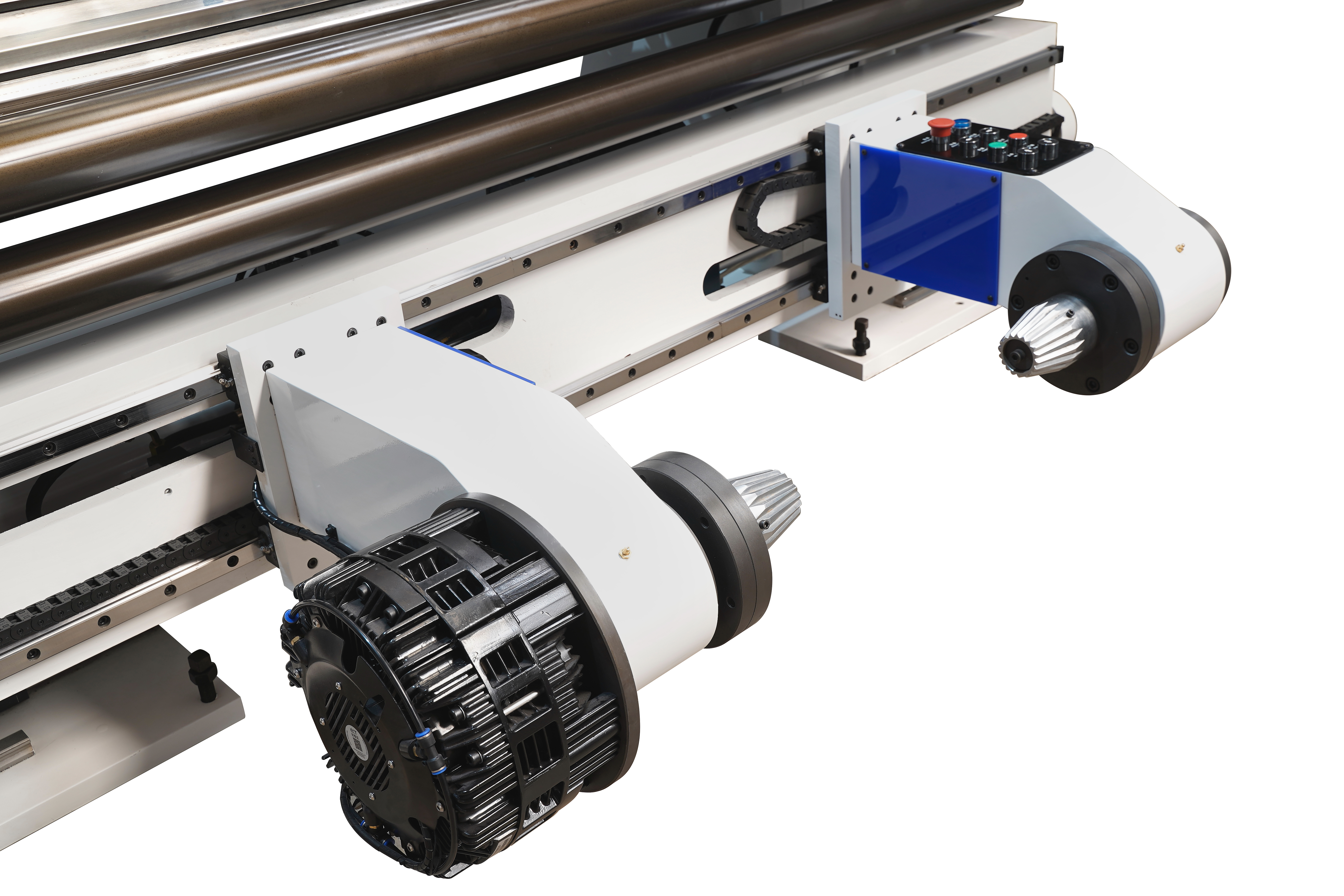

  1. Unwind unit adopts one-piece structure.

  2. It adopts removable bracket with ball slider.

  3. Non-axial Air pressure and get way with Air Chuck, who is caught taking raw materials fast, easy loading, single-person operation

  4. 1 set bias adjustable device can fine tune left and right, forward and backward through hand wheel.

  5. Unwind tension’s actuator is 2 sets 50N/M magnetic powder brake. through PLC to achieve a constant tension.

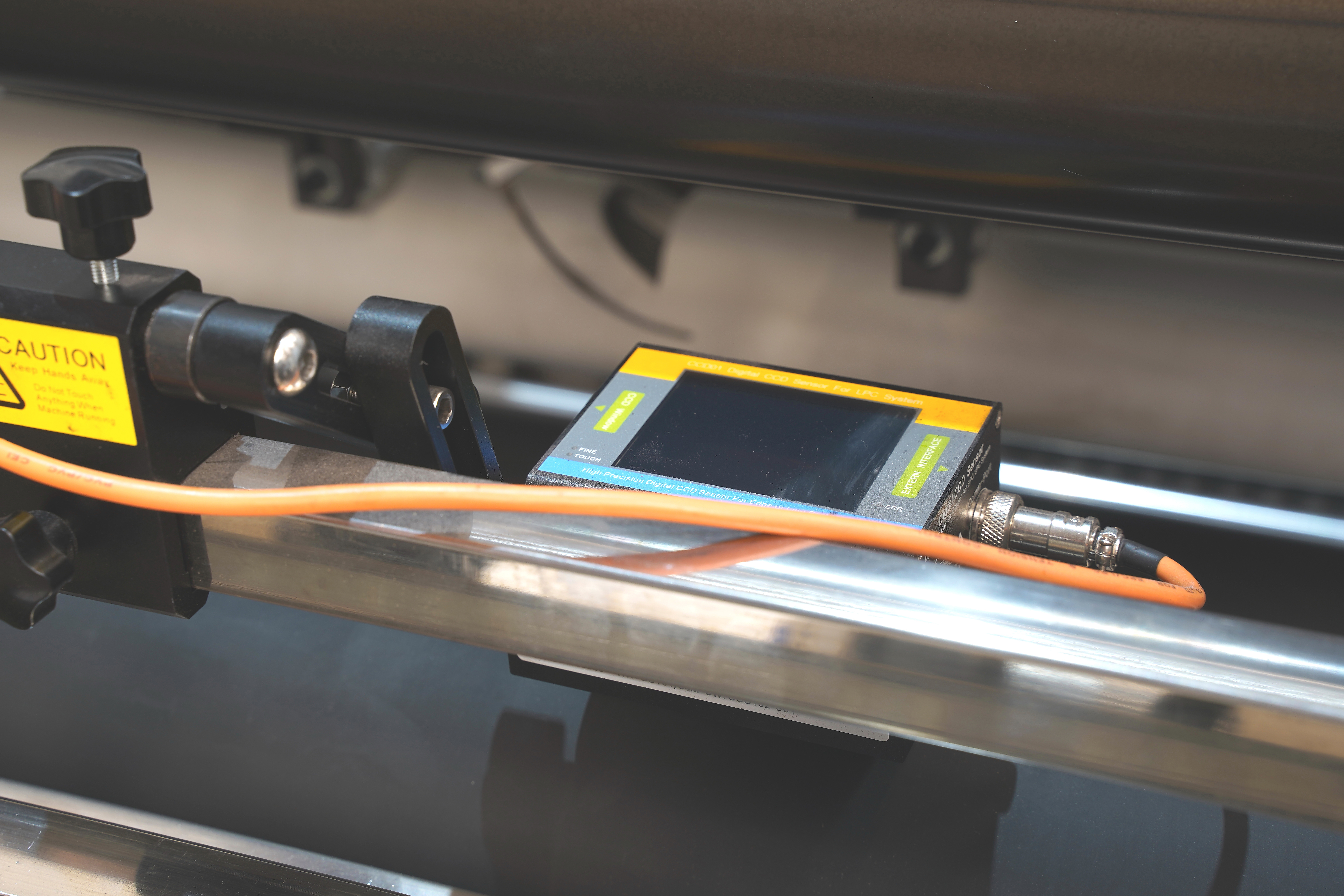

   6. EPC uses Germany brand E+L corrective device, it can achieve guide function by material’s edge



3.  Rewinding unit:

   1. Shafts adopt 3 inch pneumatic fall slip shaft which is controlled by proportional valve.

   2. Lock mode adopts pneumatic control.

   3. Rewind tension’s actuator is 2 sets Japanese brand SMC proportional valve. through PLC to achieve a constant tension.

   4. Rewind press rollers provided by customers demand (2 sets)

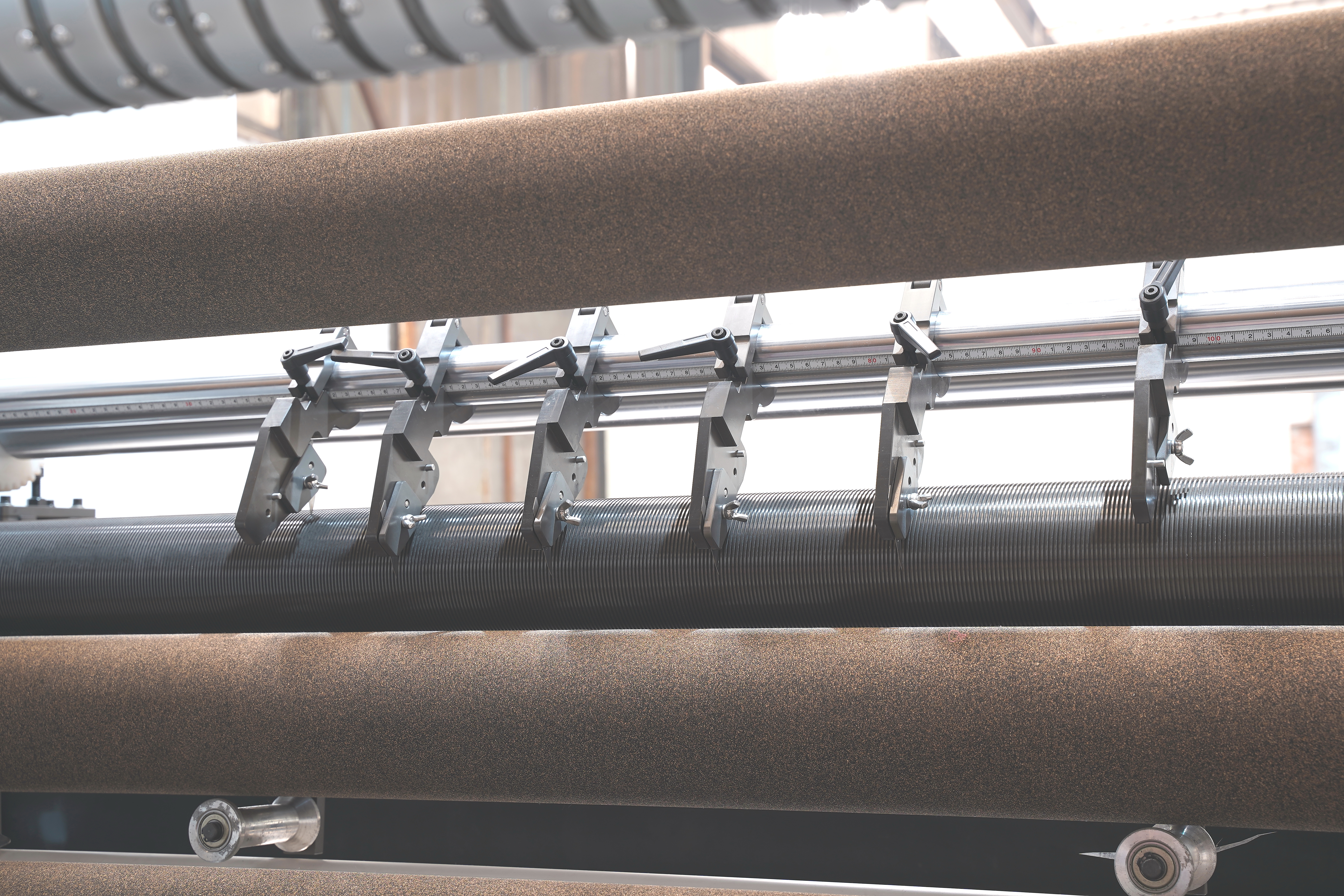

   5. Slitting knives are controlled by pneumatic cylinder (10 sets). Can be fine tuned. (Circle knife is optional).

   6. Equipped with a vacuum-type waste edge exclusion system, use the strong force adsorb the waste edge out away

   7. Equipped with a discharge rack which can provide a larger diameter of the finished product. Simple and efficient to operate and save time for the next feed.



4.  Electrical equipment unit:

   1. Main motor inverter adopts 1 pc Japanese brand Yaskawa vector inverter.

   2. Main motor adopts 1 pc Germany brand Siemens vector motor.

   3. Rewind motor inverter adopts 1 pc Japanese brand Yaskawa vector inverter.

   4. Rewind motor inverter adopts 1 pc Germany brand Siemens vector motor.

   5. EPC adopts analog control. Driving by servo motor through ultrasonic signal.

   6. Adopts imported PLC to achieve accurate and stable control, true color touch screen display to enable simple and beautiful images. Interactive parameter setting the environment, eliminating the complicated configuration can start the job: The user pre-start only need to input the material thickness, width, density, diameter and speed parameters, the next will be done automatically by a computer calculation to complete.

7. With the functions of automatic and manual acceleration and deceleration.

    8. Electrostatic elimination Unit(optional device): The machine equipped a group of static brush apart on up and down rewinding shaft , which can effectively eliminate the static between slitting and rewinding .

Main technical parameter:

Jumbo roll width

1300mm

1600mm

Diameter of roll

800mm

800mm

Diameter of   rewinding

600mm

600mm

Inner dia.of paper   core

3’’or 76mmoptional:  6’’ or 152mm

3’’or 76mmoptional:  6’’ or 152mm

Slitting speed

10-400m/min

10-400m/min

Tolerance of EPC

≤0.1mm

≤0.1mm

Min.width of   produce

30mm

30mm

Total power

12KW

16KW

Weight

4500Kg

5000Kg

overall dimension   (L X W X H)

2300mm×4300mm×1900mm

2300mm×4600mm×1900mm



Main configuration:

PLC

MITSUBISHI(JAPAN)

INVERTER

YASKAWA(JAPAN)

TOUCH SCREEN

SIEMENS(GERMAN)

LPC CONTROLLER

E+L(GERMAN)

LPC DRIVER

E+L(GERMAN)

LPC SENSOR

E+L(GERMAN)

ADHESIVE TAPE OF   DEFENDING SLIP

USA

MAGNETIC POWDER   BRAKE(2)

WEIZHENG(TAIWAN)

MAIN MOTOR

SIEMENS(GERMAN)

REWINDING MOTOR

SIEMENS(GERMAN)

MAIN PNEUMATIC   ELEMENT

AIRTEC(TAIWAN)

MAIN BEARING

NSK(JAPAN)

GUIDE RAIL

TBI(TAIWAN)

PNEUMATIC FALL   SLIP SHAFT FOR REWINDING

LILIN(KOREA)

SMALL GEAR   REDUCER(2)

LIMING(TAIWAN)

LOW-VOLTAGE   APPARATUS

SCHNEIDER(FRANCE)

BUTTON AND SWITCH

SCHNEIDER(FRANCE)
