Horizontal Screen Printing Machine

Name: Horizontal Screen Printing Machine
Brand: Koten
Rating: 5.0 (53 reviews)

Model:
JB-PYC
Brand:
Koten
Model:
JB-PYC
FOB Price:
Negotiate
Min.Order Quantity:
One set
Payment Terms:
T/T, L/C at sight.
Supply Ability:
50sets/month
Packaging:
By strong seaworthy wooden cases.
Delivery Time:
Within 15 days after get the deposit.
Place Of Origin:
China
Views:
262

Quantity:
Availability:





Inquire Add to Basket

Details

Process.

Screen Printing Machine

A. UV ink.
B. Ink return scraper
C. Design of printing logo
D. Silk screen
E. Frame
F. Printed material

Characteristics:

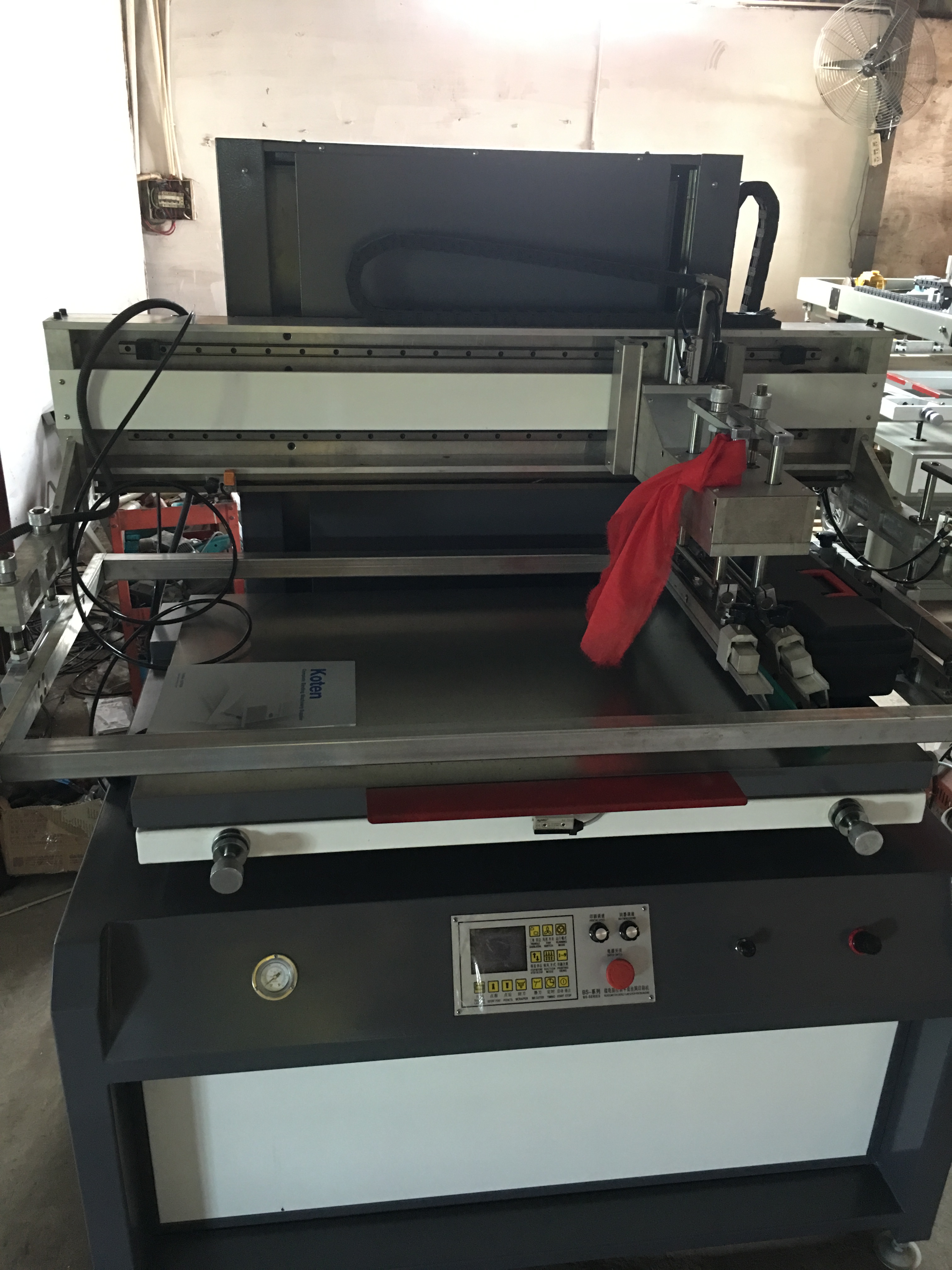

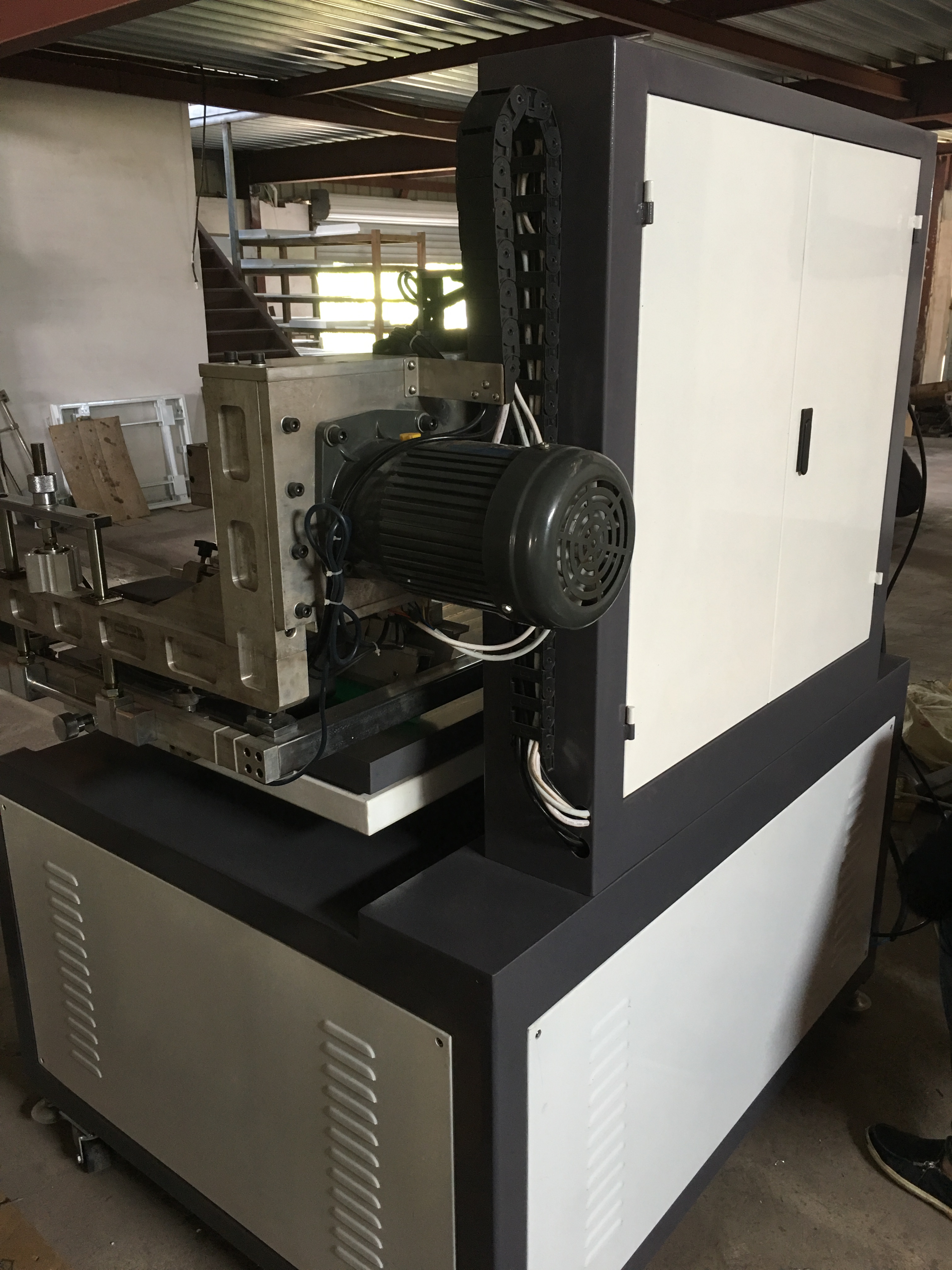

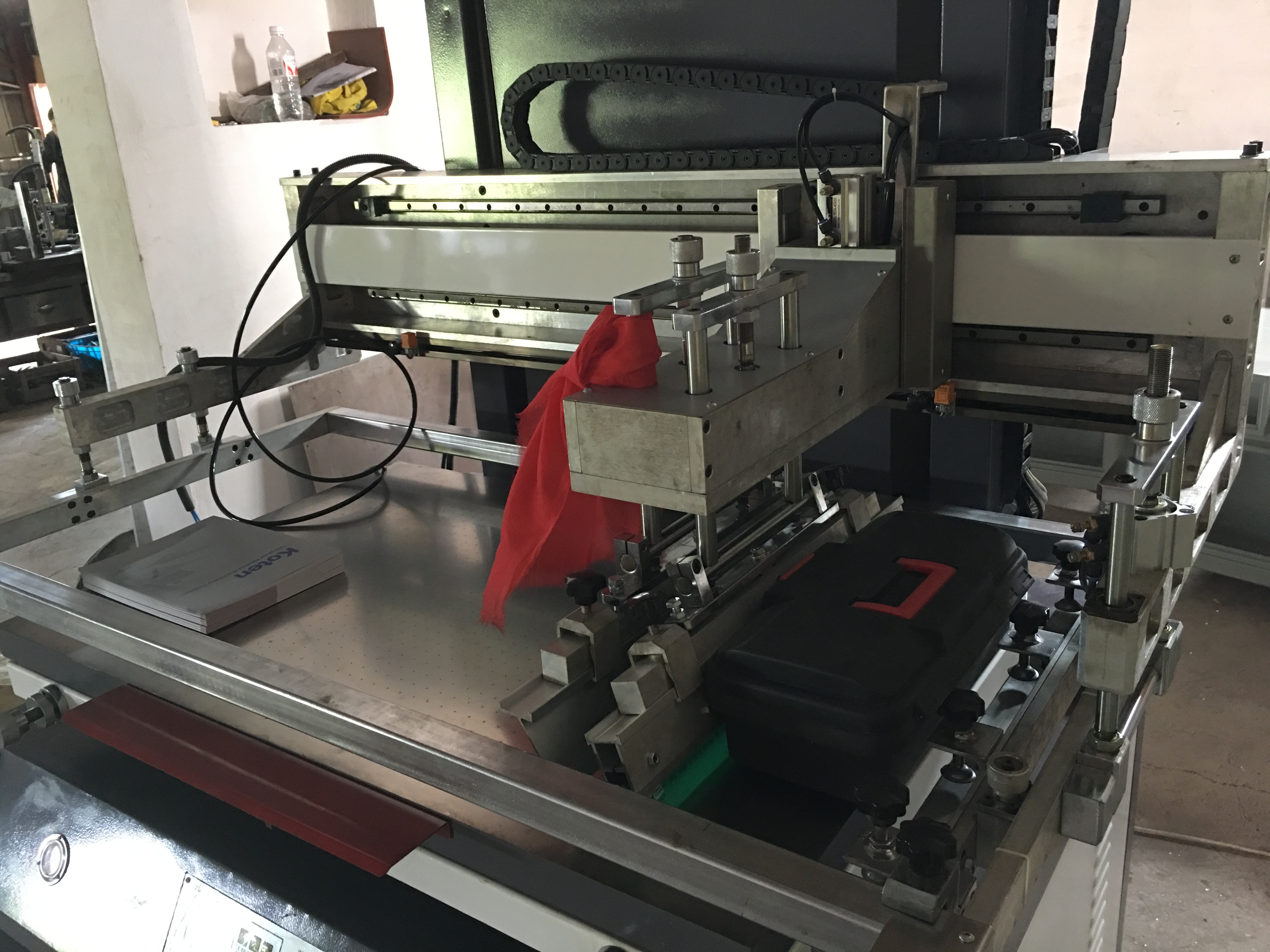

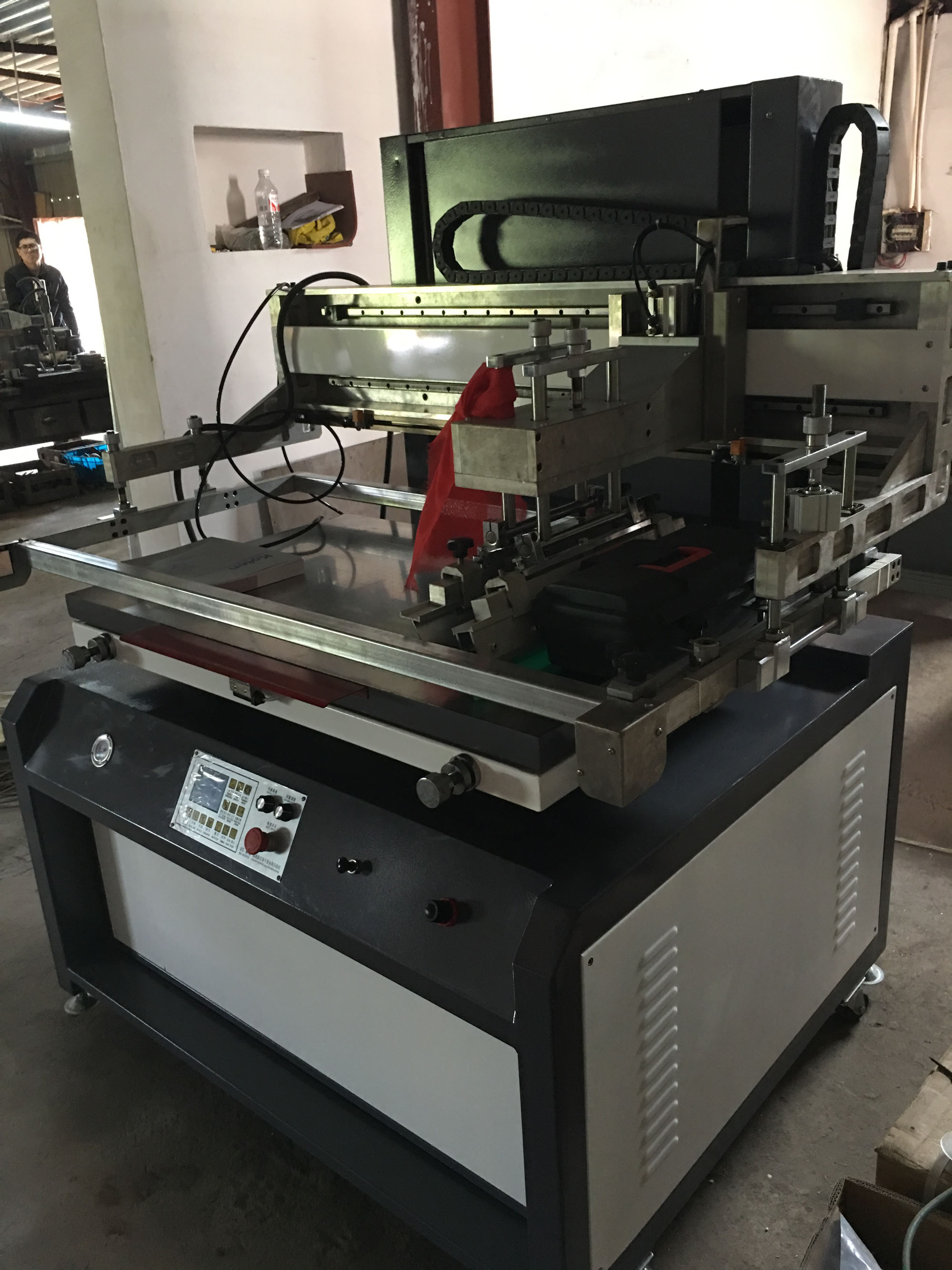

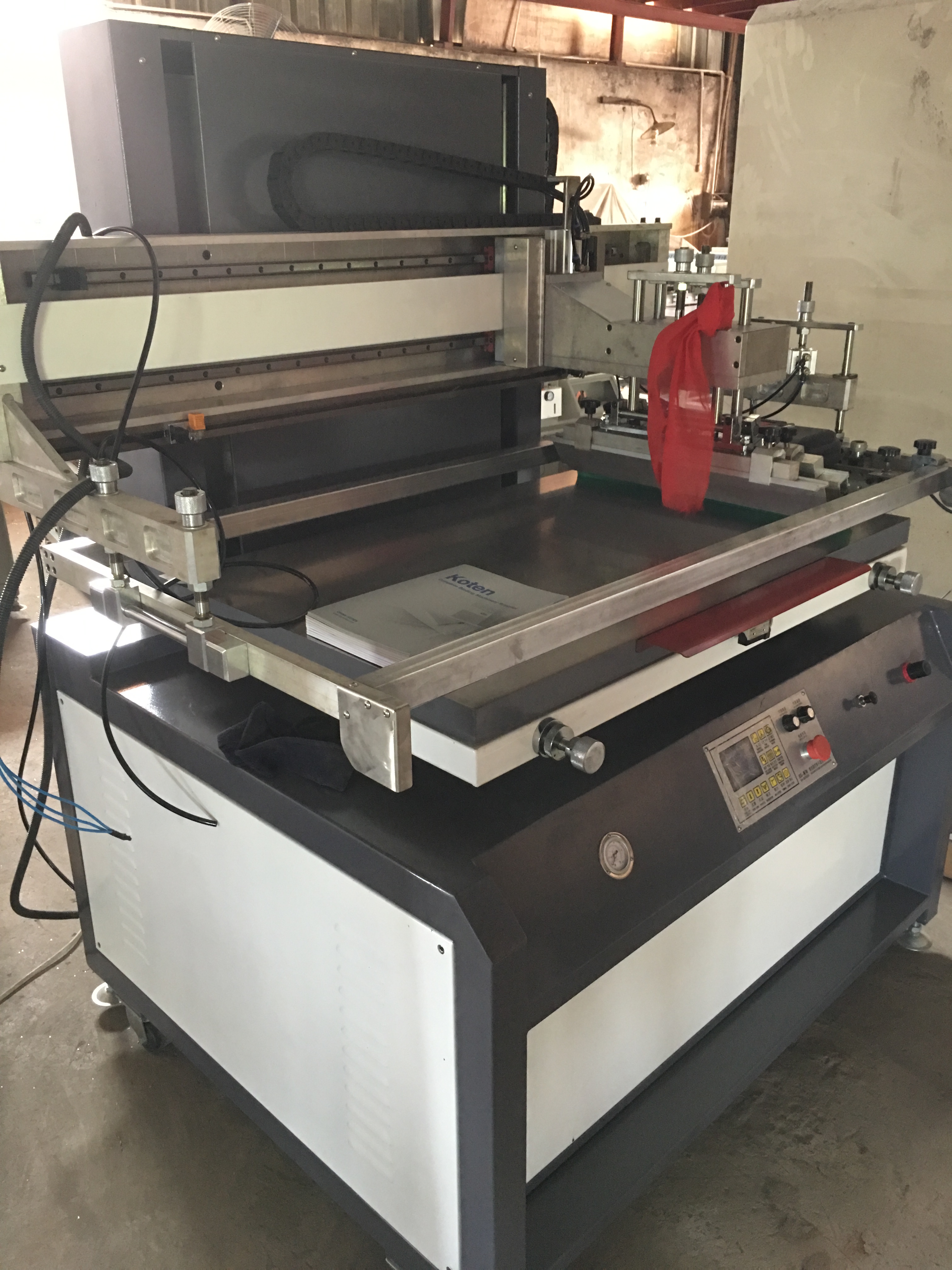

JB-PYC series horizontal-lift half-tone printing machine is a kind of semiautomatic plane half-tone printing machine. The machine can be used for screen-printing of many plane bodies, such as paper, plastic, glass, ceramics, metal, textile and leather, etc.

Lifting and lowering of the printing arm of this machine is vertical, therefore, in case of half-tone printing, presence of screen wire and consistency of aberration are improved; In case of spot printing, stability and uniformity of inking are enhanced; Fine adjustment and lock of the worktable is independent of each other, so positioning error caused by lock of the worktable can be controlled; Height and pressure of the printing blade and ink-returning blade can be step less-regulated separately, which improves printing quality and service life of half-tone; Printing travel and half-tone fixing mechanism can be fast adjusted, which is suitable for printing area with different size.

Main Specifications.

Model	JB-PY1020C	JB-PY960C	JB-PY750C
Max. printing area	700X1020mm	600x900mm	500x700mm
Max. dimension of the frame	1000x1400mm	900x1300mm	700x1100mm
Dimension of the workbench	800x1200mm	700x1100mm	600x900mm
Printing to thickness	0-25mm	0-25mm	0-25mm
Height of instant off-network	0-20mm	0-20mm	0-20mm
Printing speed	900times/hour	1000times/hour	1100times/hour
Weight	800kgs	680kgs	550kgs
Overall dimension	1700x1400x1850mm	1500x1180x1700mm	1300x950x1540mm
Printing motor	0.4kw	0.4kw	0.4kw
Printing shaft	2.2kw	1.5kw	1.5kw
Wind machine	1.5kw	1.1kw	1.1kw
Power	4.1kw	3.0kw	3.0kw

Koten Machines Container Loading.

140 Countries Clients Who Has Koten Brand Machines Till 2019.
Screen Printing Machine

FAQ.

1. Why choose us to cooperate?

Factory prices, flexible payment terms and professional quality inspection team which has the guarantee for machines, in time after sales service, and more than 15 years experience for exporting. Reputation and quality is what we are considering all the time.

2. Guarantee.

There is 12 month guarantee of each Koten brand Machines since customer got the machine. Within one year, the damaged spare parts can be changed for free, and we provide lifetime technology support on line.

3. Delivery Time.

Within 7-30 days after get the deposit. Depends on different machines.

4. What is your package?

What the package we use is strong seaworthy wooden cases. Each machine will be protected by anti-rusted oil before put into the case and there are desiccants will be packed into the machine together.

5. Do you have Installation and Training service if we bought the machines from your company?

The training service will be done by our agency dealer in some countries. If customers request us to dispatch our engineer to their country for installation and training, customers should take all necessary cost, like return flight tickets, hotel, food and salary USD100/day. If customer dispatch their engineer to our factory for training, it is free.

6. Have you sold any machines to our country?

We have to say that there are 140 countries' customers who have the "KOTEN" brand machines till 2019. Pls check with the sales manager to get more information if you need the machines' feedback.

7. What is your payment terms?

T/T. If the amount less than USD30,000.00, 30% paid in advance as a deposit, 70% balance paid before shipment.

L/C. If the sales amount above USD30,000.00, 30% paid by T/T as a deposit, 70% balance paid by irrevocable L/C at sight.

By Cash, by western union, credit cards are acceptable.

Special country like Bangladesh or Algeria can be available for 100% by irrevocable L/C at sight.

8. What your company can offer?

Exercise Books Making Solutions.
Soft Cover Books Making Solutions.
Hard Cover Books Making Solutions.
Spiral Books Making Solutions.
Postpress and Paper Converting Solutions.
Paper Box Making Solutions.
Rigid Box Making Solutions.

Paper Bag Making Solutions.

Exhibitions and Customers'Meeting.

Factory Production.
Screen Printing Machine
