JXZC-80
Koten
JXZC-80
Negotiate
One set
T/T, L/C at sight.
100 sets/month
By strong seaworthy wooden cases.
Within 15 days after get the deposit.
China
3476
Availability: | |
---|---|
Quantity: | |
The hot foil stamping machine is used on Small Quantities for different patterns to high- end products and beautiful appearance for hot stamping all kinds of sheet printing papers by aluminum foil, it can do both convex and flat stamping, make the printing products more beautiful. Suitable for hot stamping the Book covers, Rigid box covers, Packaging products surface Like cigarette , Cosmetics , Bakery , Coffee ,Tea,Tissue,Gift Box,Moon Cake,Certificate etc.
This machine is suitable for hot stamping anodized aluminum on various paper products, all kinds of advanced fine printing, can be in this machine for concave and convex hot stamping, flat hot stamping,in order to get three-dimensional sense, exquisite and beautiful packaging, decoration products.

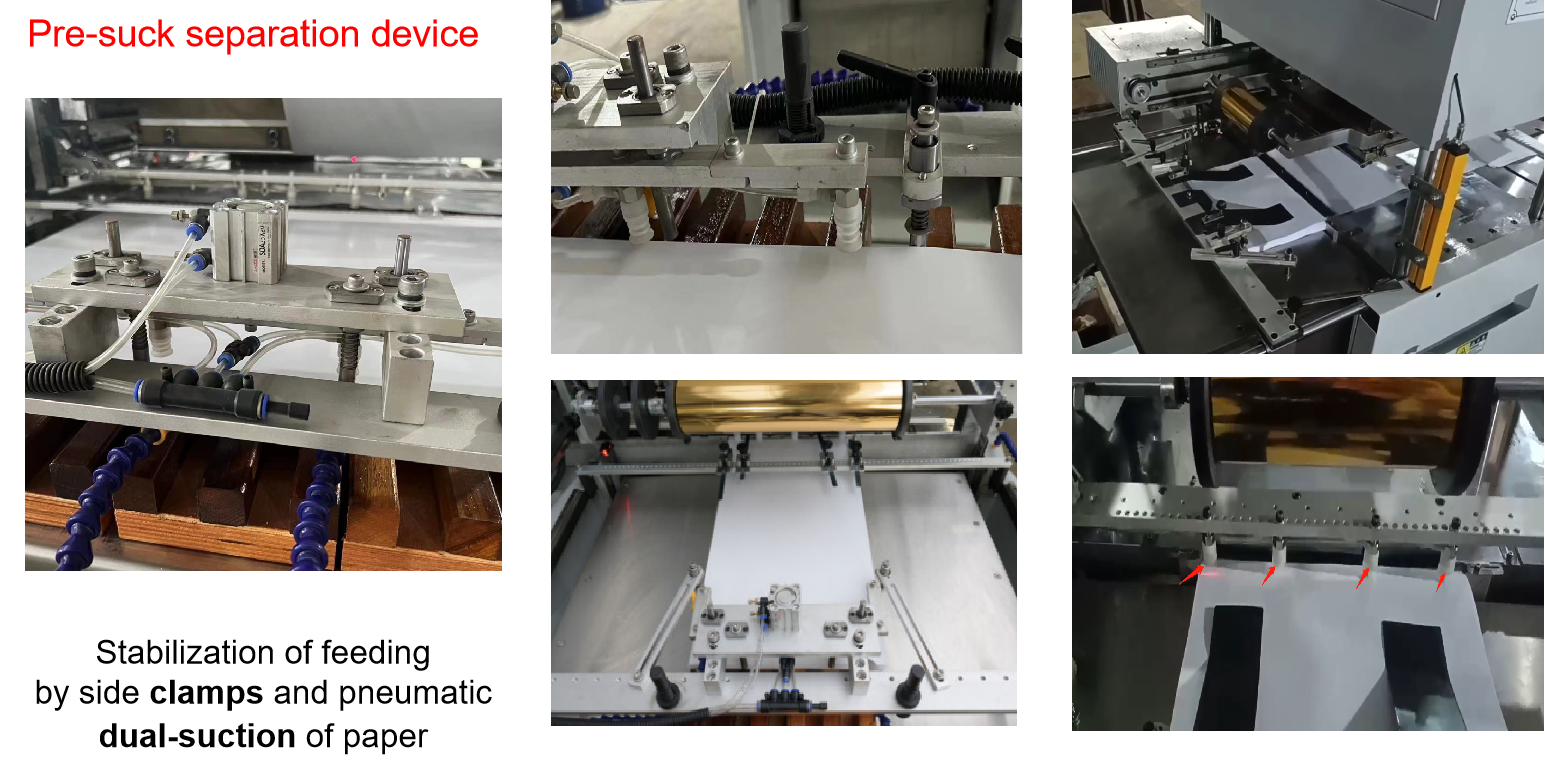

1. Feeding section
2. Hot Stamping Section

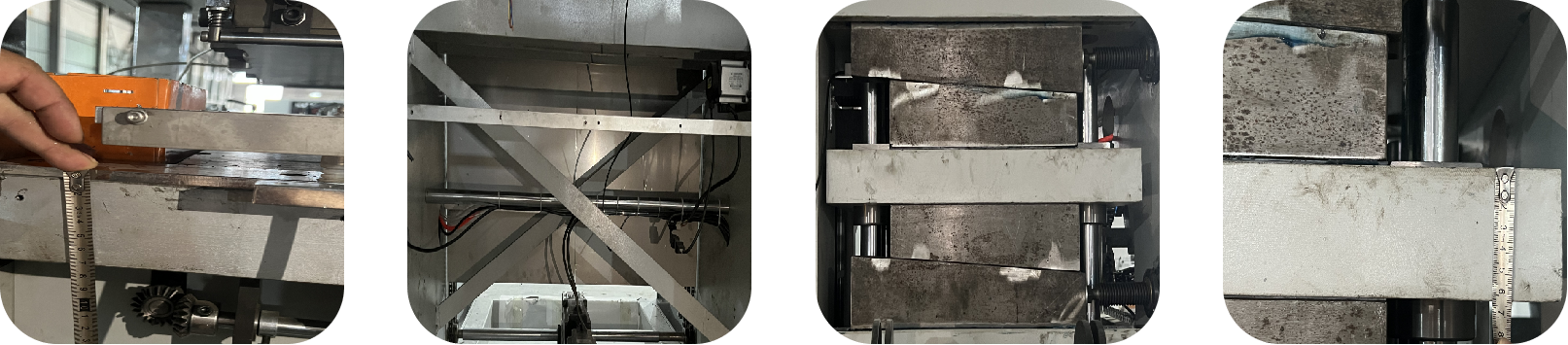

Super Thick Wall for Strong Support Pressure

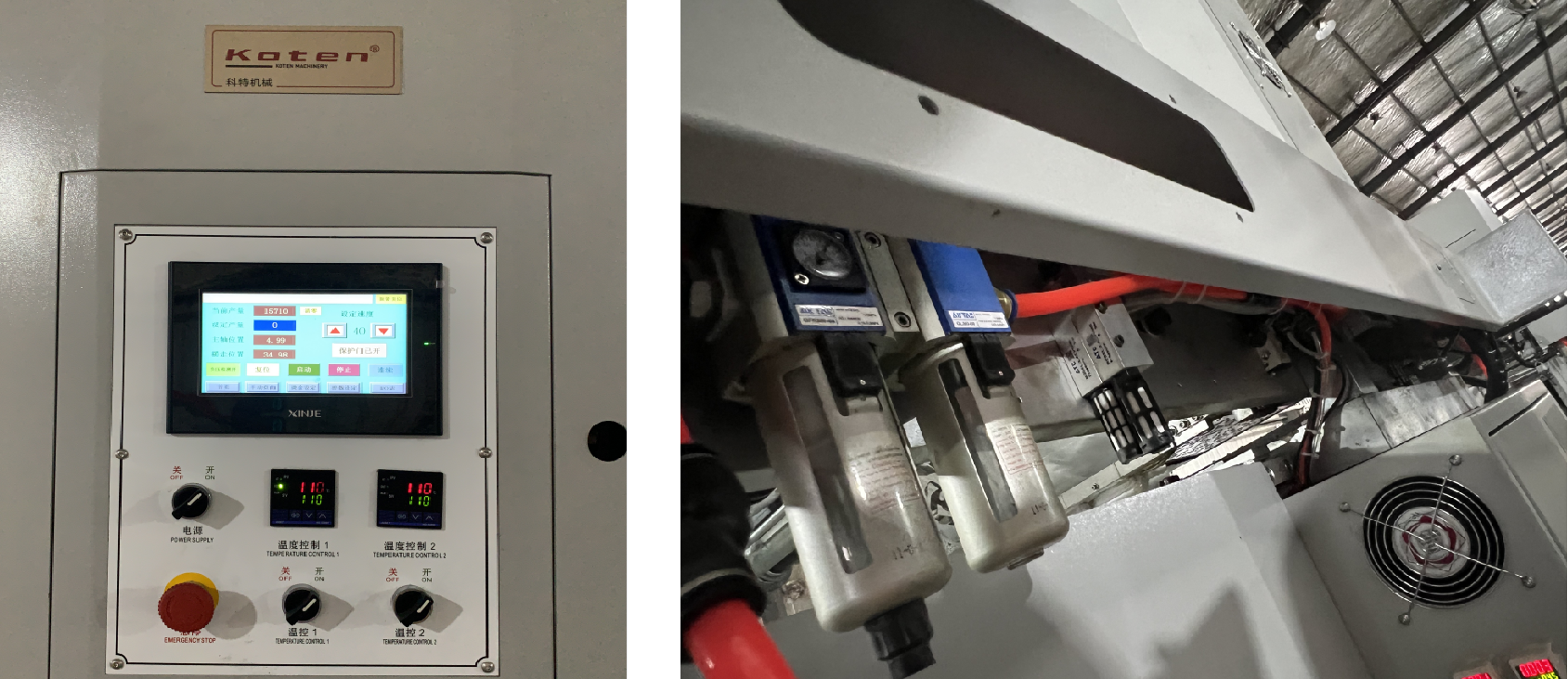

3. Screen Pannel & AirTAC Penumatic
4. Receiving section
Model | JX-55 | JX-60 | JX-78 | JX-80 |
Max.Paper-feeding area | 540 x450 mm | 600x500 mm | 750x600 mm | 800x600 mm |
Min.Paper-feeding area | 100x100 mm | 150x150 mm | 200x200 mm | 250x250 mm |
Max. hot stamping area | 300x250 mm | 500 x 400 mm | 500x400 mm | 650x500 mm |
Max.Mechanical speed | 40 times/min | 35 times/min | 35 times/min | 30 times/min |
Max.Feeding pile height | 420 mm | 450 mm | 600 mm | 650 mm |
Working voltage | 380V 50Hz 3P | 380V 50Hz 3P | 380V 50Hz 3P | 380V 50Hz 3P |
Dimension | 1500x1200x1600mm | 1800x1250x1800mm | 2100x1300x2050mm | 2100*1800*2050mm |
Total weight | 700 kg | 1000 kg | 1580 kg | 2400 kg |
Power | 3.5 KW | 4 KW | 8 KW | 8 KW |
Pressure | 1.5 Ton | 3 Ton | 8 Ton | 30 Ton |
No | Item | Brand | Origin |
1 | PLC | XINJE | China,wuxi |
2 | Servo motors | ZHISHRN | China,hangzhou |
3 | Approach switch | Schneider | Germany |
4 | Stepper motors | SOYO | China,changzhou |
5 | Photoelectric enlightenment | sick | Germany |
6 | Laser photoelectric opening | Omron | Japan |
7 | Open light power | MingWei | China,taiwai |
8 | AC Contactors | Schneider | Germany |
9 | Air Switch | Schneider | Germany |
10 | Monitors | XINJE | China,wuxi |
11 | Buttons | Schneider | Germany |
12 | Cylinder | AirTAC | China,Taiwan |
.
.
.
The hot foil stamping machine is used on Small Quantities for different patterns to high- end products and beautiful appearance for hot stamping all kinds of sheet printing papers by aluminum foil, it can do both convex and flat stamping, make the printing products more beautiful. Suitable for hot stamping the Book covers, Rigid box covers, Packaging products surface Like cigarette , Cosmetics , Bakery , Coffee ,Tea,Tissue,Gift Box,Moon Cake,Certificate etc.
This machine is suitable for hot stamping anodized aluminum on various paper products, all kinds of advanced fine printing, can be in this machine for concave and convex hot stamping, flat hot stamping,in order to get three-dimensional sense, exquisite and beautiful packaging, decoration products.

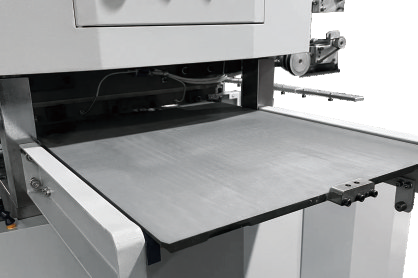

1. Feeding section

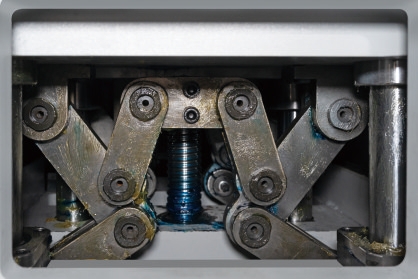

2. Hot Stamping Section
Super Thick Wall for Strong Support Pressure
3. Screen Pannel & AirTAC Penumatic
4. Receiving section
Model | JX-55 | JX-60 | JX-78 | JX-80 |
Max.Paper-feeding area | 540 x450 mm | 600x500 mm | 750x600 mm | 800x600 mm |
Min.Paper-feeding area | 100x100 mm | 150x150 mm | 200x200 mm | 250x250 mm |
Max. hot stamping area | 300x250 mm | 500 x 400 mm | 500x400 mm | 650x500 mm |
Max.Mechanical speed | 40 times/min | 35 times/min | 35 times/min | 30 times/min |
Max.Feeding pile height | 420 mm | 450 mm | 600 mm | 650 mm |
Working voltage | 380V 50Hz 3P | 380V 50Hz 3P | 380V 50Hz 3P | 380V 50Hz 3P |
Dimension | 1500x1200x1600mm | 1800x1250x1800mm | 2100x1300x2050mm | 2100*1800*2050mm |
Total weight | 700 kg | 1000 kg | 1580 kg | 2400 kg |
Power | 3.5 KW | 4 KW | 8 KW | 8 KW |
Pressure | 1.5 Ton | 3 Ton | 8 Ton | 30 Ton |
No | Item | Brand | Origin |
1 | PLC | XINJE | China,wuxi |
2 | Servo motors | ZHISHRN | China,hangzhou |
3 | Approach switch | Schneider | Germany |
4 | Stepper motors | SOYO | China,changzhou |
5 | Photoelectric enlightenment | sick | Germany |
6 | Laser photoelectric opening | Omron | Japan |
7 | Open light power | MingWei | China,taiwai |
8 | AC Contactors | Schneider | Germany |
9 | Air Switch | Schneider | Germany |
10 | Monitors | XINJE | China,wuxi |
11 | Buttons | Schneider | Germany |
12 | Cylinder | AirTAC | China,Taiwan |
.
.
.
