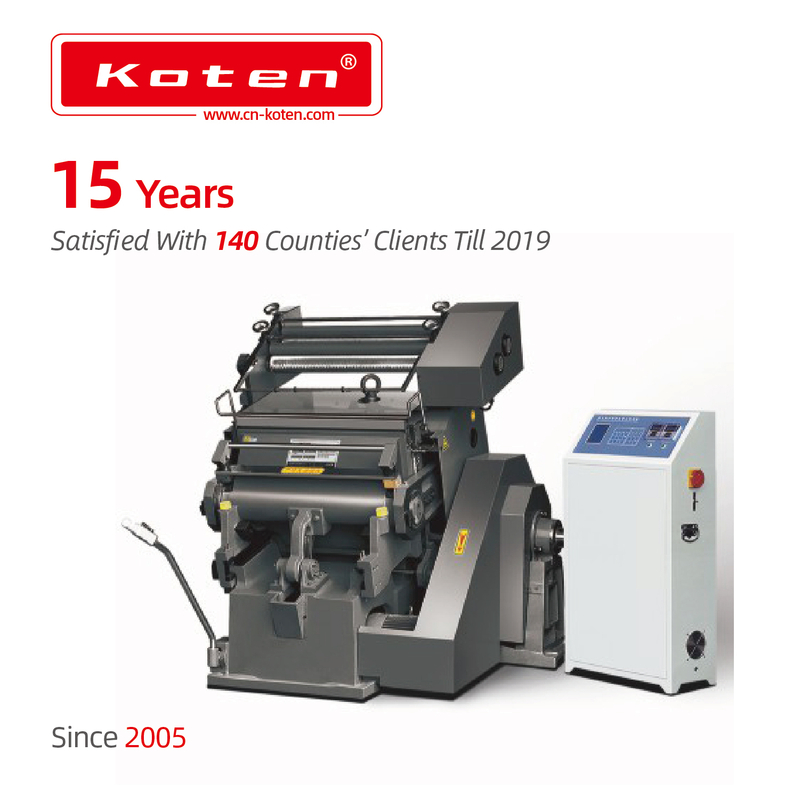

Hot Foil Stamping and Die Cutting Creasing Machine

Quantity:
  • TYMK
  • Koten
  • TYMQ series
  • Negotiable
  • One set
  • T/T, L/C at sight.
  • 100sets/month
  • By strong seaworthy wooden cases.
  • Within 15 days after get the deposit.
  • China
  • 476
Usage and Features.
The stamping machine is developed by our company with advantage of the analogue products in the world with multifunction, micro-computer controlled and dual-purpose. It is the first manufactured at home and wins two state patents. With great effect on high quality printing and packing, it is the necessary equipment for stamping and die cutting of large size.
For saving aluminum foil, reducing printing cycle, economical and utilizing, the machine is an organic whole products integrated with mechanical and electrical which is micro-computer controlled for oil advance and shipping, constant-temperature and digital indicating.
The machine has three foil feeding rollers, and each group takes foil and steps independently. It has such features as simply operation, easy maintenance, suitable pressure, reliable handling and high automatically etc. To improve the adhesive power of the foil and getting perfect products, it is equipped with safety device.

Main Technical Parameters.

Model

TYMQ1300

TYMQ1100

TYMQ1040

TYMQ930

TYMQ-750

Max. foil stamping size

1300x920mm

1100X800mm

1040x720mm

920x660mm

750x520mm

Groups of feeding foil

3 groups

3 groups

3 groups

3 groups

2 groups

Temperature Adjusting

0-1600c

0-1600c

0-1600c

0-1600c

0-1600c

Working Pressure

250T

220T

180T

170T

150T

Operating speed

17+2strokes/min

22+2strokes/min

22+2strokes/min

22+2strokes/min

25+2strokes/min

Volume of foil feeding

1-13800mm

1-800mm

1-660mm

1-660mm

1-550mm

Skip frequency

0-99 times

0-99 times

0-99 times

0-99 times

0-99 times

Main machine power

18kw

12kw

9kw

9kw

6kw

Machine Weight

6500kgs

5000kgs

5000kgs

3500kgs

2200kgs

Overall dimension

2050x21500x2000

2050x21500x2000

1940x21100x1900

1940x2110x1900

1500x1350x1700




Koten Machines Container Loading.

光影魔术手拼图
140 Countries Clients Who Has Koten Brand Machines Till 2019.

1

FAQ.

1. Why choose us to cooperate?
Factory prices, flexible payment terms and professional quality inspection team which has the guarantee for machines, in time after sales service, and more than 15 years experience for exporting. Reputation and quality is what we are considering all the time.


2. Guarantee.

There is 12 month guarantee of each Koten brand Machines since customer got the machine. Within one year, the damaged spare parts can be changed for free, and we provide lifetime technology support on line.


3. Delivery Time.

Within 7-30 days after get the deposit. Depends on different machines.


4. What is your package?

What the package we use is strong seaworthy wooden cases. Each machine will be protected by anti-rusted oil before put into the case and there are desiccants will be packed into the machine together.


5. Do you have Installation and Training service if we bought the machines from your company?

The training service will be done by our agency dealer in some countries. If customers request us to dispatch our engineer to their country for installation and training, customers should take all necessary cost, like return flight tickets, hotel, food and salary USD100/day. If customer dispatch their engineer to our factory for training, it is free.


6. Have you sold any machines to our country?

We have to say that there are 140 countries' customers who have the "KOTEN" brand machines till 2019. Pls check with the sales manager to get more information if you need the machines' feedback.


7. What is your payment terms?

T/T. If the amount less than USD30,000.00, 30% paid in advance as a deposit, 70% balance paid before shipment.
L/C. If the sales amount above USD30,000.00, 30% paid by T/T as a deposit, 70% balance paid by irrevocable L/C at sight.
By Cash, by western union, credit cards are acceptable.
Special country like Bangladesh or Algeria can be available for 100% by irrevocable L/C at sight.


8. What your company can offer?

Exercise Books Making Solutions.
Soft Cover Books Making Solutions.
Hard Cover Books Making Solutions.
Spiral Books Making Solutions.
Postpress and Paper Converting Solutions.
Paper Box Making Solutions.
Rigid Box Making Solutions.

Paper Bag Making Solutions.


Exhibitions and Customers'Meeting.
光影魔术手拼图

     Factory Production.
