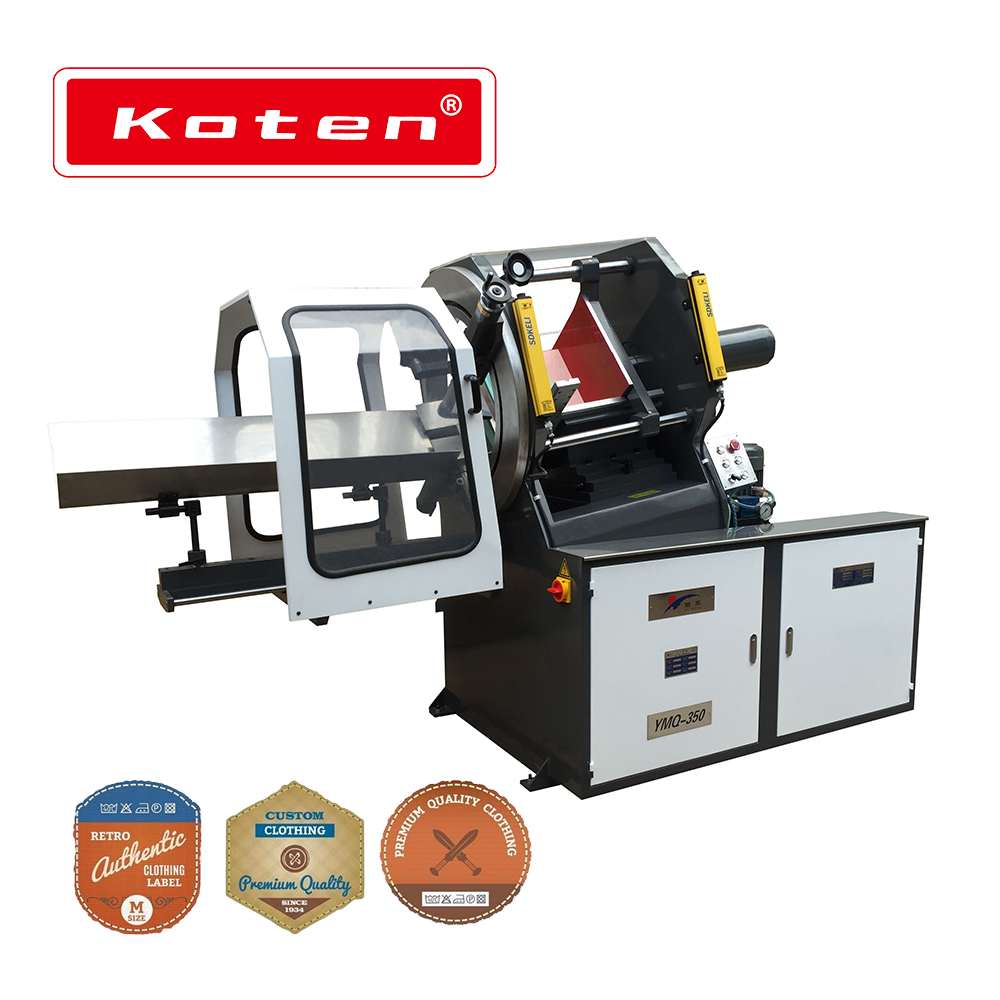

YMQ-350
koten
YMQ-350
Negotiate
1set
T/T,L/C.
30sets/month
By strong seaworthy wooden cases.
Within 60 days after get the deposit.
China
7582
| Quantity: | |
|---|---|
YMQ series brand die cutter is mainly aimed to various different shape brand, such as various wine, food and drink label shaping die cutter ‚is widely applied to cut various size playing card,aluminum plastic,greeting card, cover of instant noodles,note book,credit card, tag and other threeside certificate card, including all kinds of specialshape kids' books. This machine adopts hydraulic pressure system, working in stabilization. The die cutting products surface is smooth, and the size is unified and regular with higher efficient. There are photo electricity eye in left and right with more safety use; the charge bench can do front &back and integrate adjustment,the die cutter can be installed at any location with spinfunction entirety, with more convenient use.

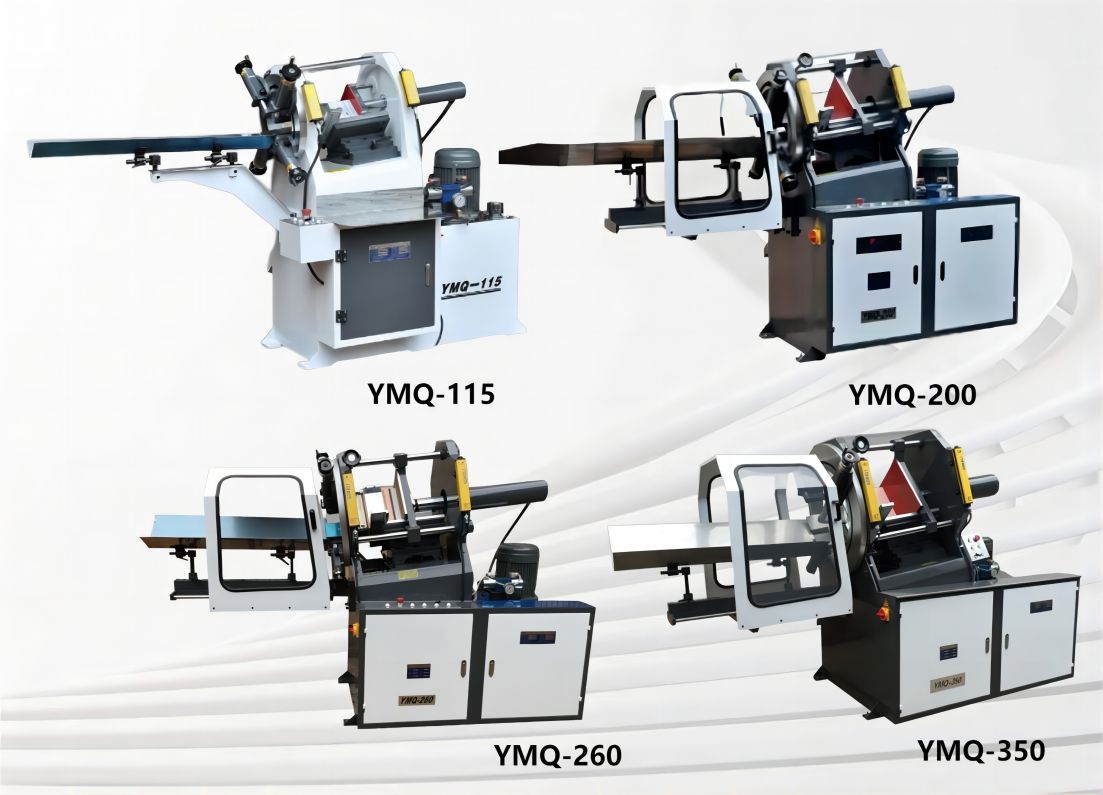

Model | YMQ-115（new） | YMQ-200 | YMQ-260 | YMQ-350 |
Max.Die-cut size(mm) | 150*150 | 220*220 | 300*240 | 380*300 |
Min.Die-cut size(mm) | 30*30 | 50*50 | 65*65 | 90*90 |
Max.Die-cut height(mm) | 200 | 220 | 260 | 310 |
Die-cut pressure | 3T | 5T | 8T | 12T |
Working speed | 12Times/min | 10Times/min | 8Times/min | 7Times/min |
Motor voltage power | 3HP 2.25KW | 5HP 3.75KW | 7.5HP 5.6KW | 7.5HP 5.6KW |
Overall dimension(mm) | 1350*850*1500 | 2200*850*1650 | 2450*1000*1800 | 2450*1000*1800 |
Weight of whole machine | 700kg | 1000kg | 1600kg | 1900kg |
