YW-720C
KOTEN
YW-720C
Negotiate
1
T/T, L/C at sight
10sets/month
By strong seaworthy packaging
Within 30 days after get the deposit.
3598
| Quantity: | |
|---|---|

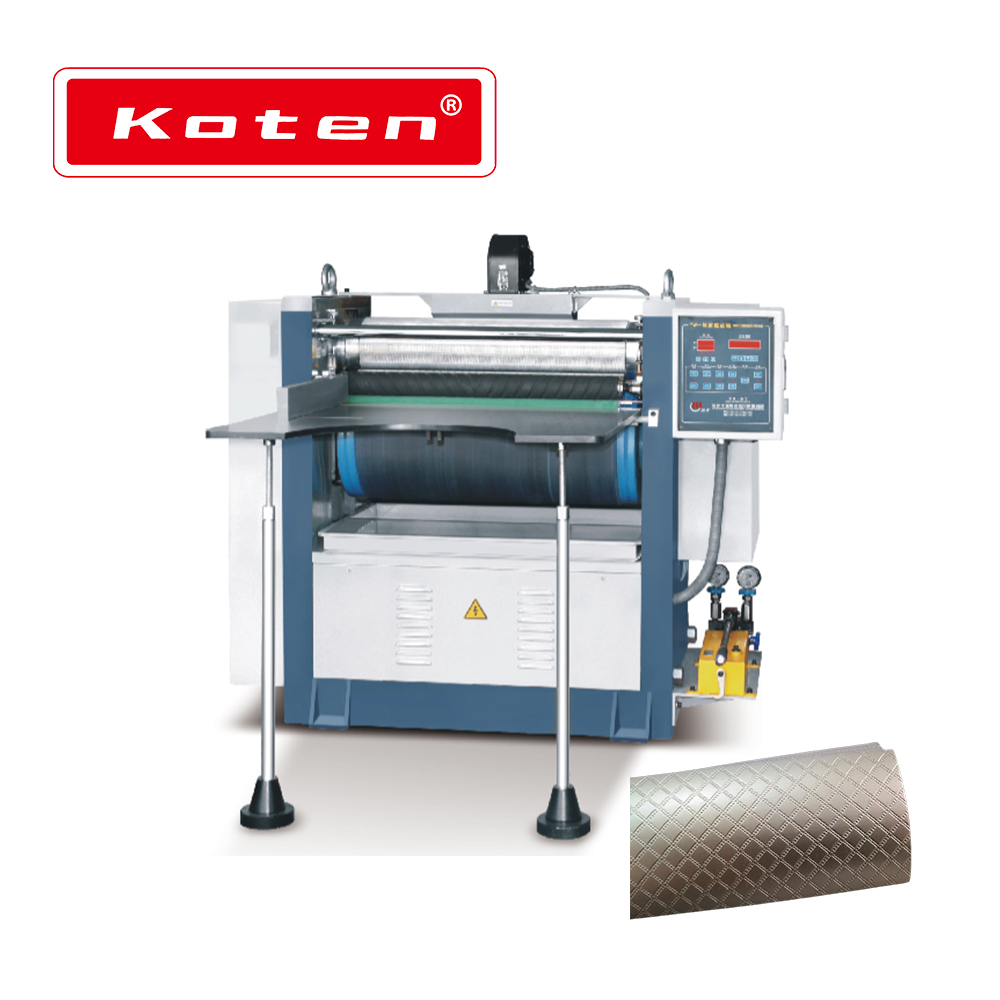

Manual Operation Paper Embossing Machine（YW-720C）
Paper embossing machine YW-C series are special for embossing patterns on papersurface. It is applied to all kinds of packaging, trademark, invitation cards, name cardsbook cover, various paper, aluminum and plastic compound material, leather and thinmetal plate.
It is equipped with anti-wrinkle and anti-crimping roller structure andelectrical magnetic clutch protection device. After embossing processing, the effect ofsurface can be improved. This machine is prime equipment for improving products levelreinforcing anti-fake and protecting trademark in the printing industry.
Mode | YW-720C | YW-920C | YW-1150C | YW-1300C |
Max Embossing Width | 680mm | 889mm | 1100mm | 1240mm |
Paper Range | >80g/m² | >80g/m² | >80g/m² | >80g/m² |
Operation pressure | 2-10Mpa | 2-10Mpa | 2-10Mpa | 2-10Mpa |
Generator’s Power | 3KW | 4KW | 4KW | 5.5KW |
Heat Power | 2KW | 3KW | 3KW | 3KW |
Total Weight | 1500kgs | 1800kgs | 2200kgs | 2600kgs |
Shape Dimensions(LWH) | 1700*960*1380mm | 1900*960*1380mm | 2100*960*1800mm | 2300*960*1800mm |
Manual Operation Paper Embossing Machine（YW-720C）
Paper embossing machine YW-C series are special for embossing patterns on papersurface. It is applied to all kinds of packaging, trademark, invitation cards, name cardsbook cover, various paper, aluminum and plastic compound material, leather and thinmetal plate.
It is equipped with anti-wrinkle and anti-crimping roller structure andelectrical magnetic clutch protection device. After embossing processing, the effect ofsurface can be improved. This machine is prime equipment for improving products levelreinforcing anti-fake and protecting trademark in the printing industry.
Mode | YW-720C | YW-920C | YW-1150C | YW-1300C |
Max Embossing Width | 680mm | 889mm | 1100mm | 1240mm |
Paper Range | >80g/m² | >80g/m² | >80g/m² | >80g/m² |
Operation pressure | 2-10Mpa | 2-10Mpa | 2-10Mpa | 2-10Mpa |
Generator’s Power | 3KW | 4KW | 4KW | 5.5KW |
Heat Power | 2KW | 3KW | 3KW | 3KW |
Total Weight | 1500kgs | 1800kgs | 2200kgs | 2600kgs |
Shape Dimensions(LWH) | 1700*960*1380mm | 1900*960*1380mm | 2100*960*1800mm | 2300*960*1800mm |
