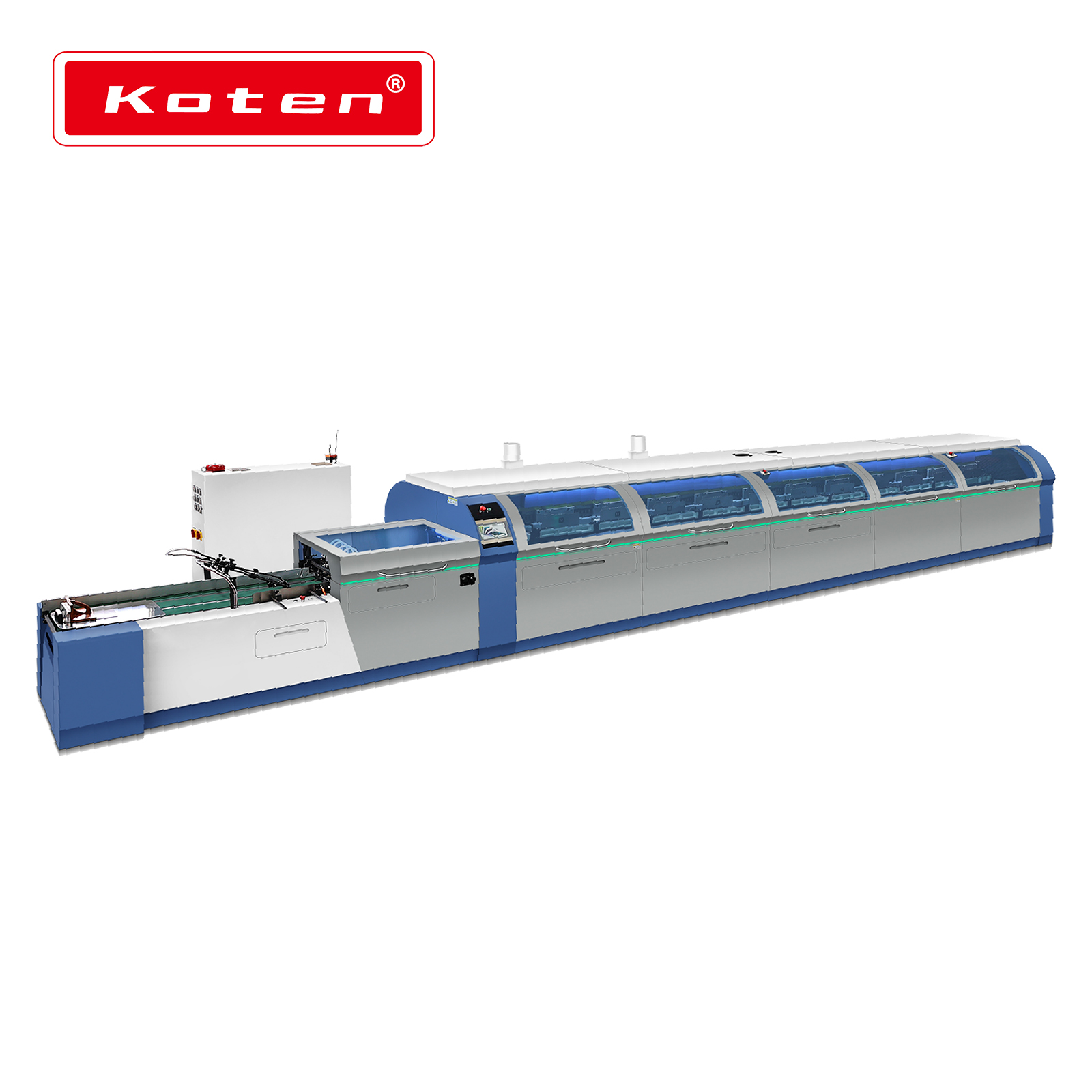

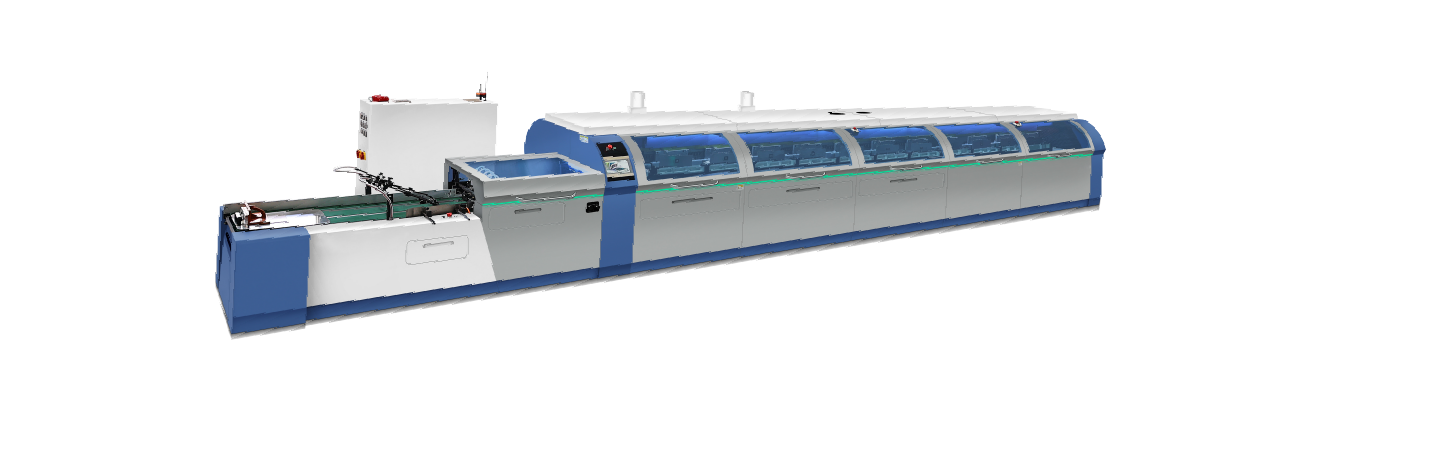

Perfect Book Binding Machine KBN-26

Perfect Book Binding Machine KBN-26

Introduction.

Feature:

1.Easy to operate:adopt microcomputer control,frequency control and touch screen.

2.Screen falut display：reduce the labor intensity of workers and improve work efficiency.

3.Milling back:rough mill,finish mill，groove broaching，brush back total four system.

4.Uniform gluing: Two sets of gluing devices ensure reliable gluing at high speed. Movable glue pot design, EVA glue and PUR glue optional, easy to maintain.

5.Independent glue wire breaking system.

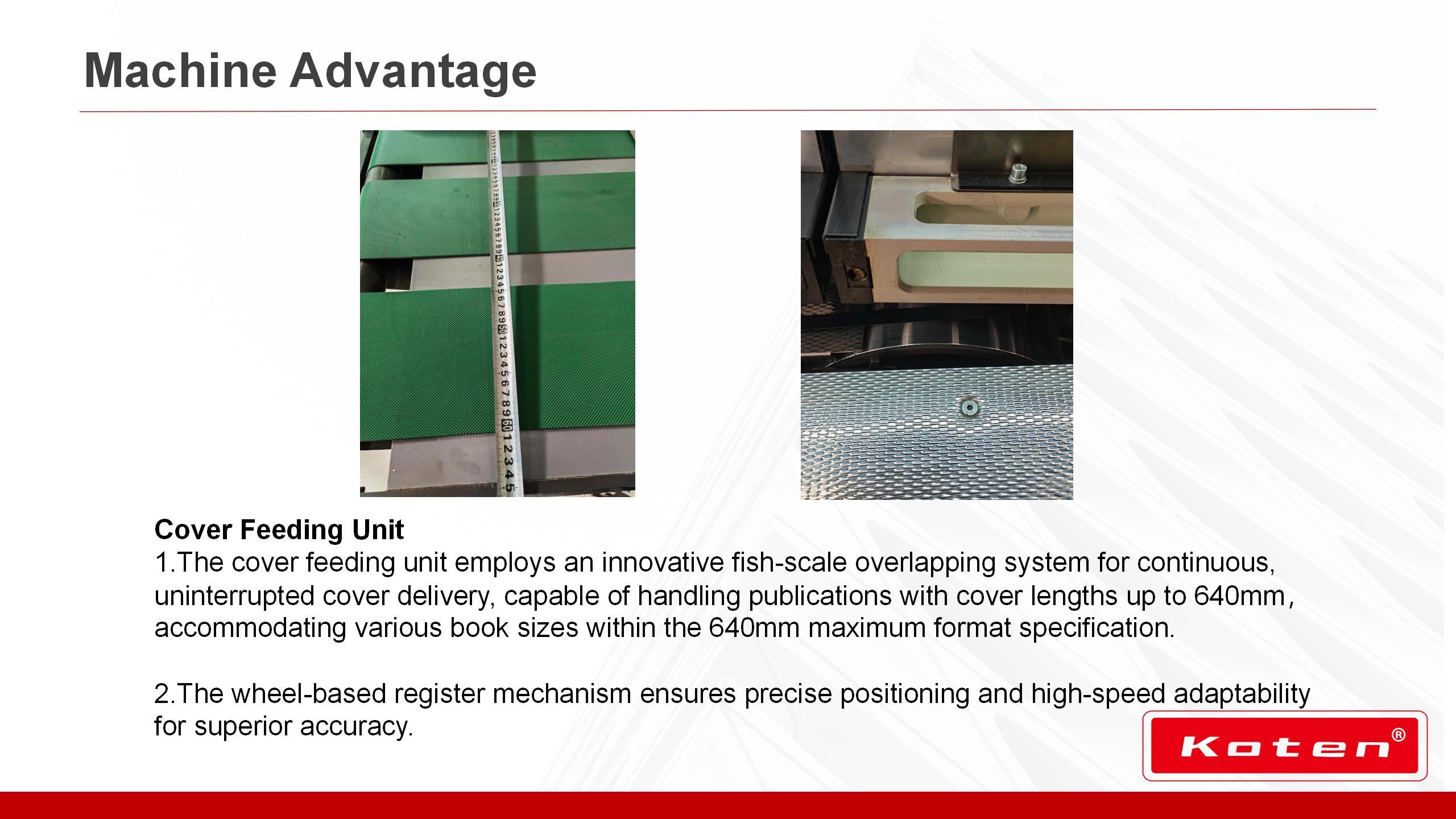

6.Fish scale cover feeding:stack 2000 covers one time,greatly reduce the labor intensity of workers.

7.Twice clamping unit:Ensures stable product quality and perfectly squared spines during high-speed operation.

Advantage.

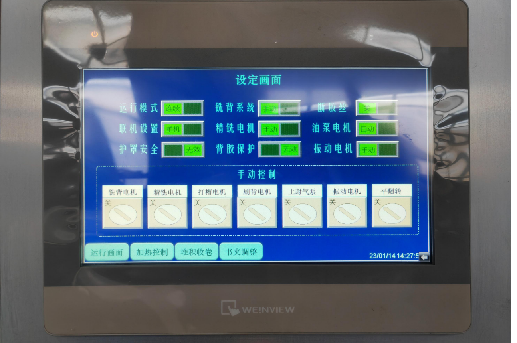

Touch Screen

Simple operation, convenient and fast, can achieve remote fault diagnosis, remote service.

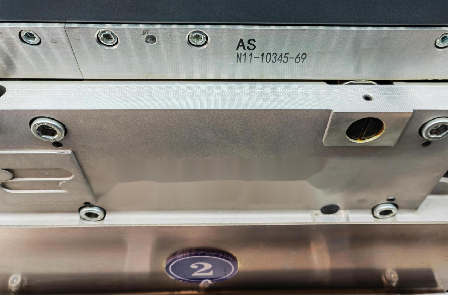

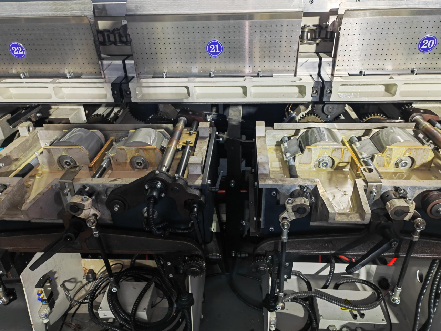

Clamp Guide Rail

1.Clamp:High strength aviation aluminum die-casting molding, wear-resistant, long service life.

2.Guide rail:Imported S136 wear-resistant material, embedded structure, easy to disassemble and maintain.

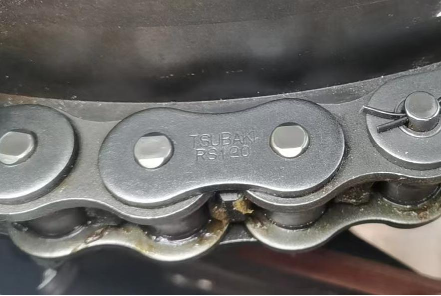

3.The book clamp drive chain utilizes Tsubaki chains, featuring wear-resistant construction with minimal elongation.

Gluing Unit

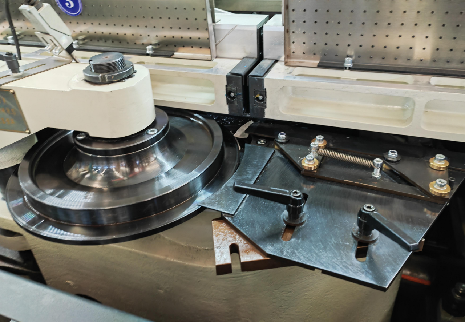

Rough milling:The whole adopts casting bracket, high speed, 30 milling back knives, paper scraps for strip, non-paper powder, each milling back knife can be independently replaced, internal and external extrusion wheel design, to ensure the stability and reliability of the milling back and the quality of the milling back, with sharpening machine.

Gluing Unit

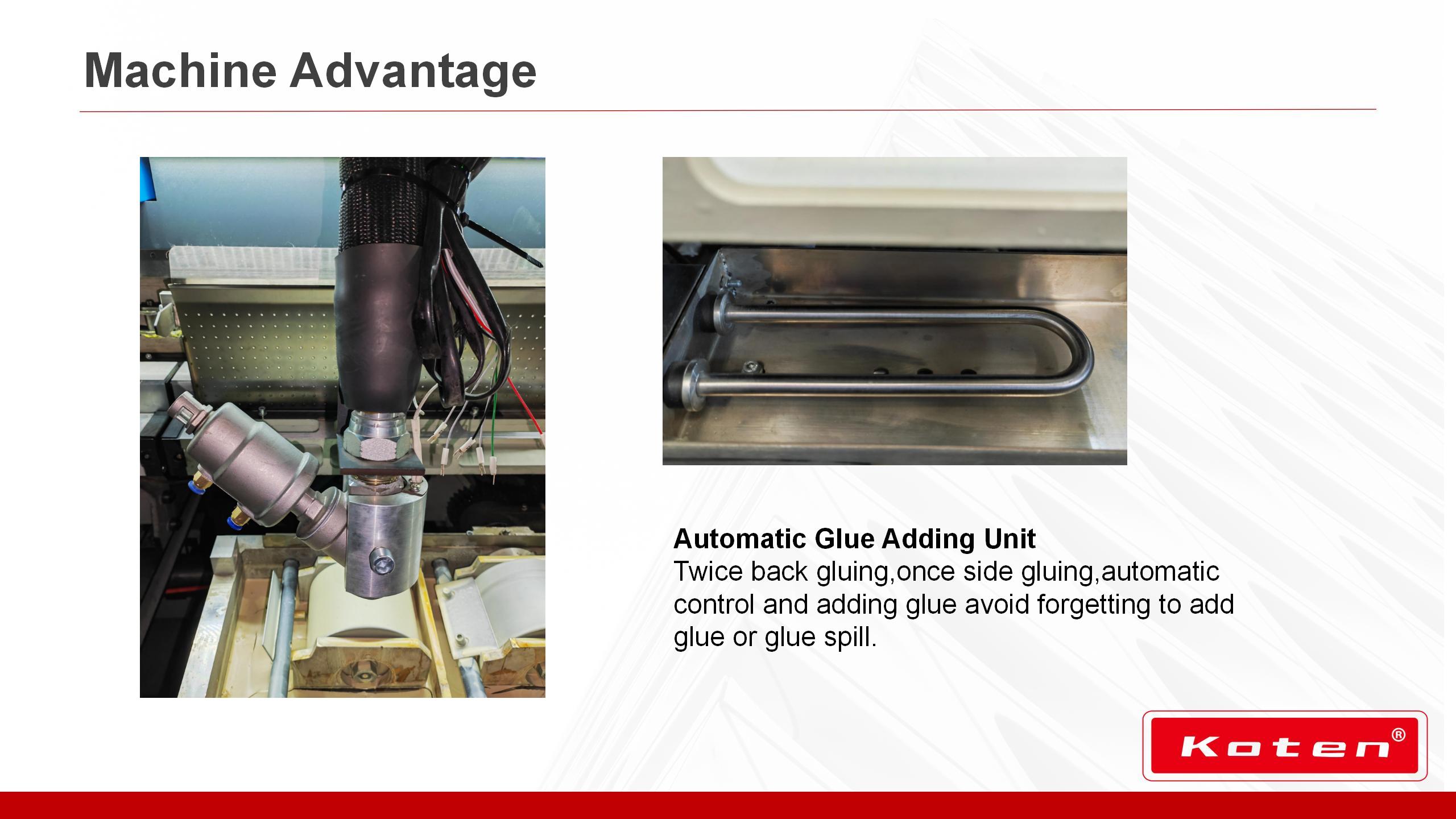

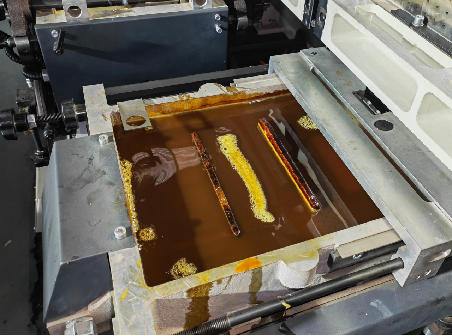

1.Two back glue tank:large rubber wheel, equipped with independent preheating glue tank, glue length controllable, glue temperature adjustable, glue stable, uniform and reliable.

2.Side glue tank:it can realize side glue breaking,equipped with independent preheating glue potand, add glue automaticly.
