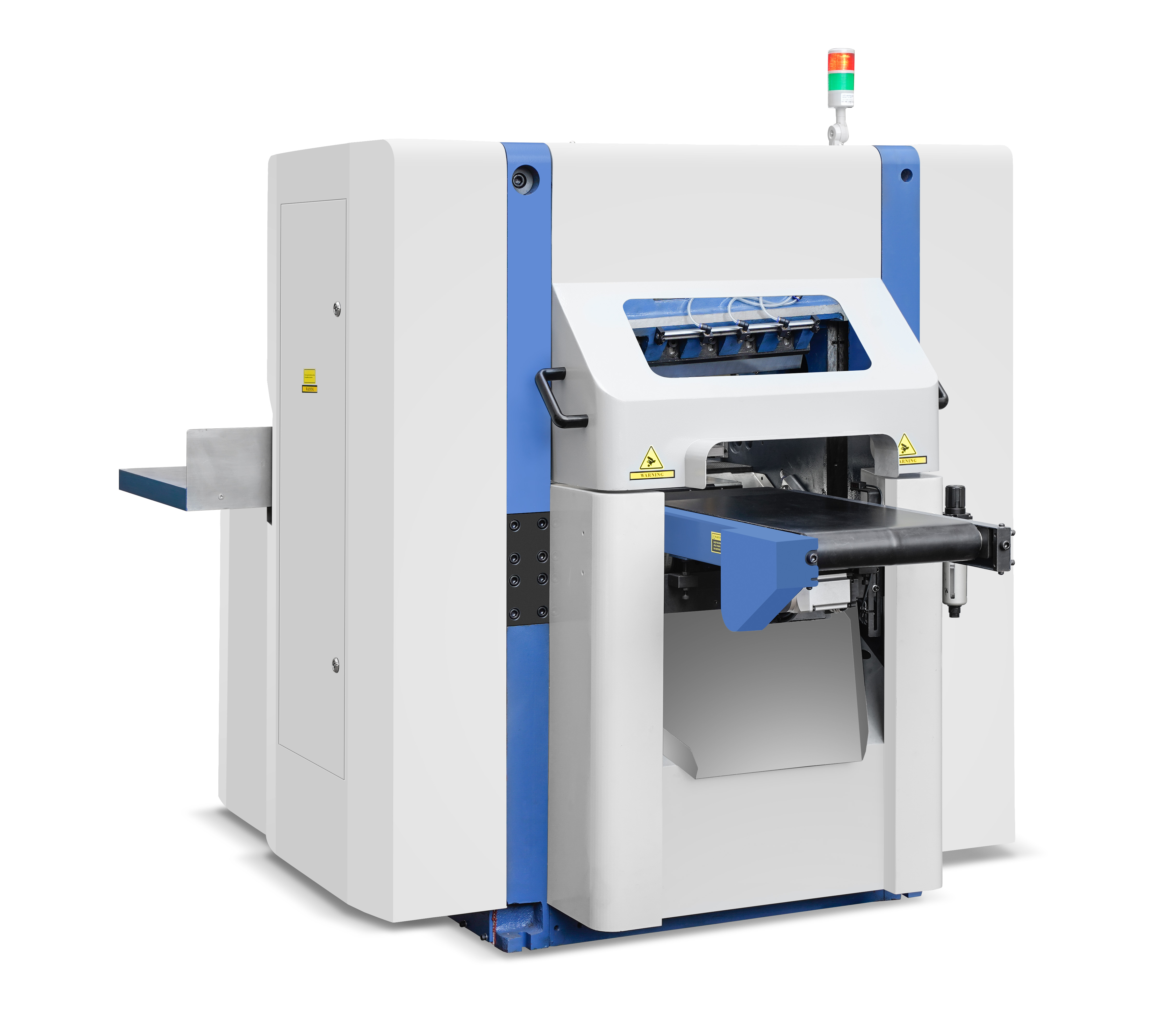

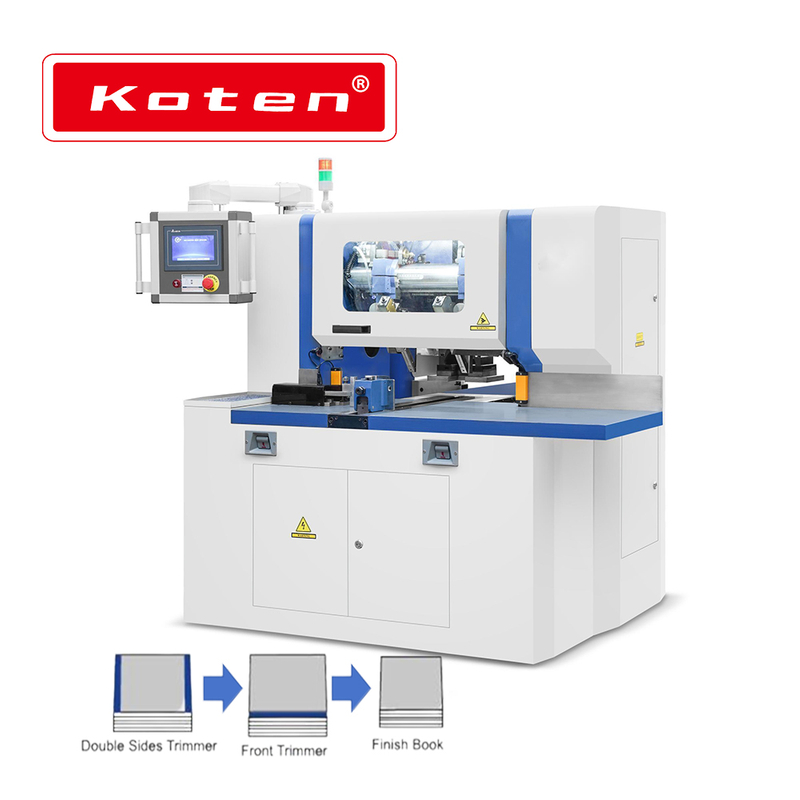

Programmable Three Knife Trimmer

QS-1000VA programmable Three Knife Trimmer is the latest developed by our company and suitable for use in the digital printing industry. Our company has invested quite a lot of research and development time and effort, which could achieve intelligent adjustment and version change, greatly reducing the technical requirements for operators. The machine has high accuracy, stability, and reliability. When cutting small batches of books and periodicals, it can achieve flexible version changing, intelligent adjustment, and convenience.

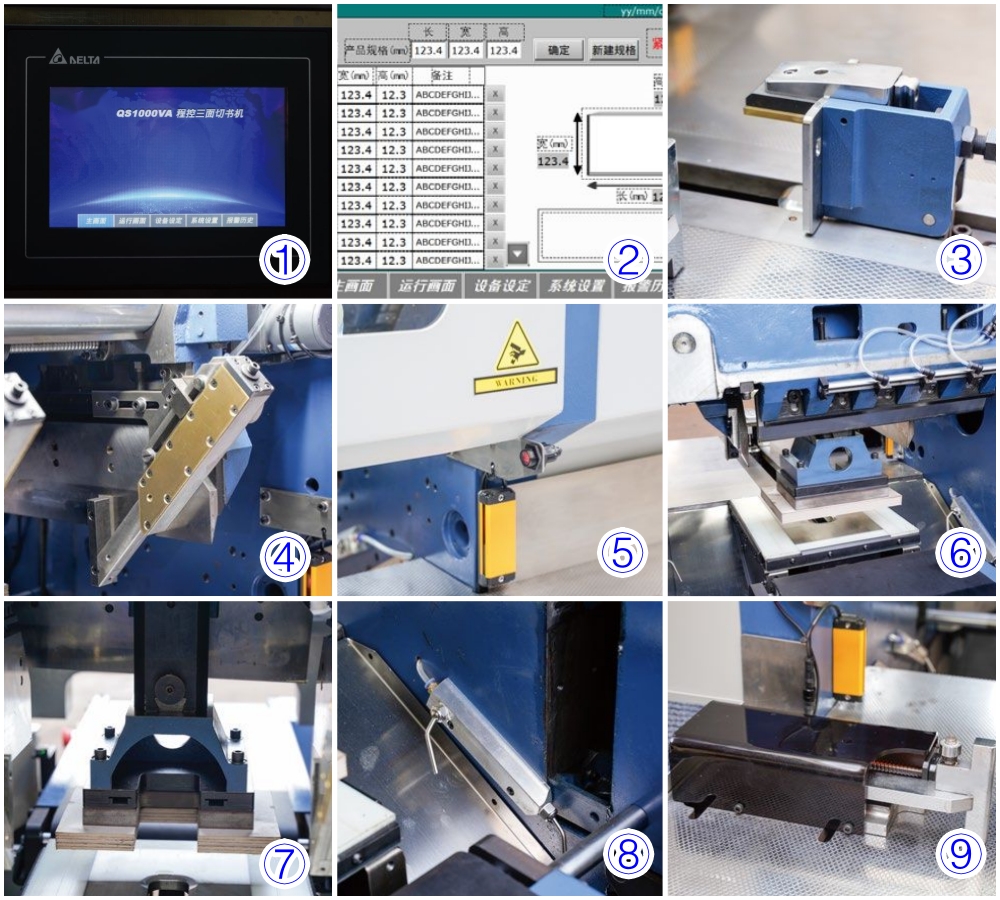

1.The main interface design is reasonable, and the main functions are clearly visible in the main interface, making it easy to operate.

2.Set the required length, width, and height dimensions for cutting books and periodicals on the touch screen, and the machine will automatically adjust the dimensions. And you can record a name to save the data.

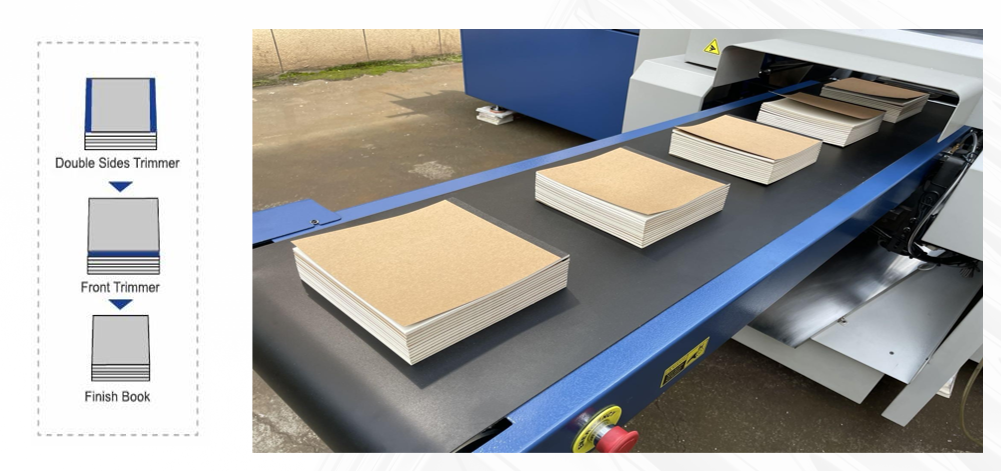

3.The book delivery device adopts a brand new design, which can achieve the thickness of books without manual adjustment.

4.Equipped with a device to prevent book back breakage

5.Equipped with light curtain and photoelectric dual safety protection.

6.The front and side knives are equipped with waste paper blowing devices.

7.The widened pressing plate does not need to be replaced when cutting between 185mm-297mm by the side knife.The advanced book pressing device can automatically adjust according to the height set on the touch screen. Replacing the pressing plate only takes 20 seconds to complete.

8.The waste paper channel is equipped with an air blowing device to ensure that the cutting waste edges fall smoothly and are not blocked.

9.The automatic gear gauge can set the size of the desired trimming edge on the touch screen, and the machine gear gauge will automatically adjust without manual adjustment.
