SJ-600Y
Koten
SJ-600Y
Negotiable
One set
T/T, L/C at sight.
100 sets/month
By strong seaworthy wooden cases.
Within 30 days after get the deposit.
China
898
| Quantity: | |
|---|---|
Process.
samples.
Product Description.

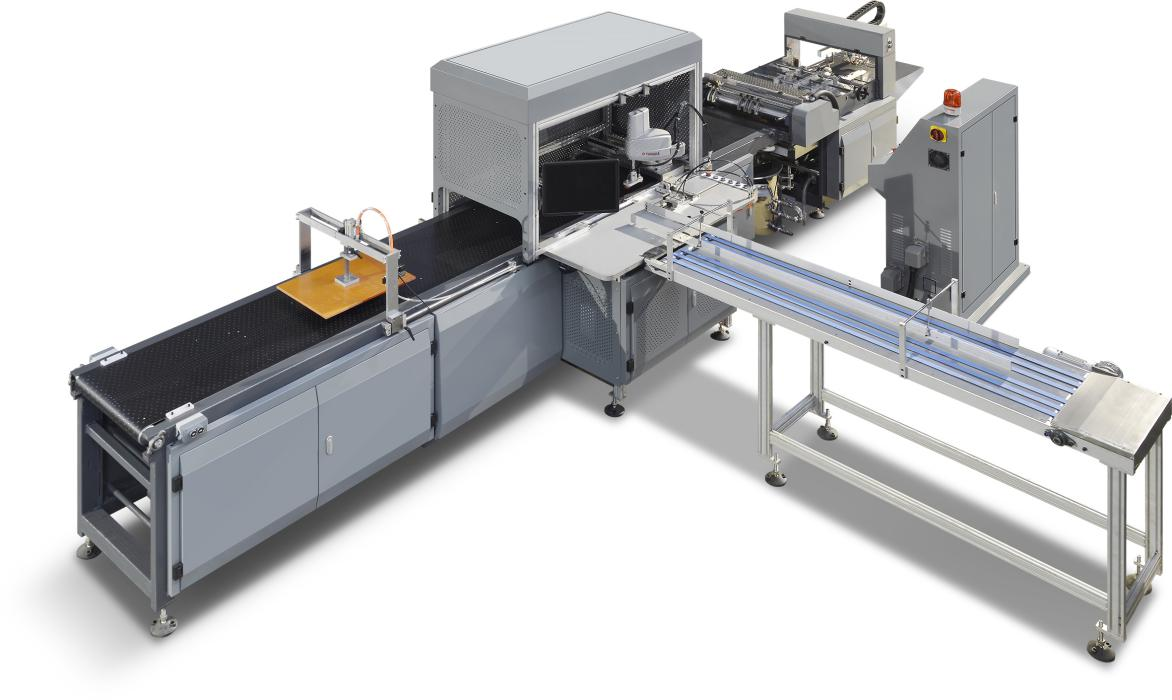

Yamaha series positioning machine-quote the most intelligent and accurate detection method (industrial camera) on the market at present and SCARA is applied to the positioning machine, which not only meets the positioning requirements of most customers in the current market, but also uses the simplest operation method. To customers. This product can be used to make all kinds of high-end packaging gift boxes.

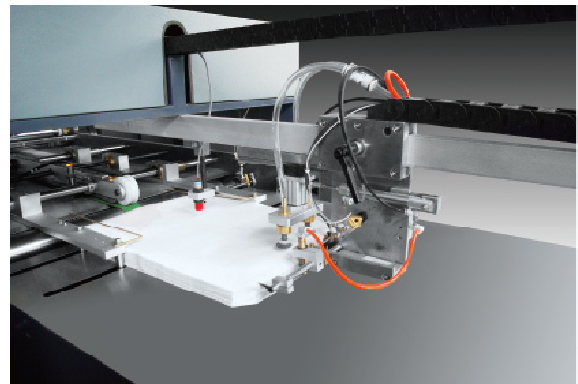

1- The newly designed servo-controlled facial paper feeder adopts back-push and front suction and feed paper, which effectively prevents double-sheets from running stably
2- The automatic glue viscosity control device can effectively control the viscosity of the glue to ensure the viscosity of the glue and the quality of the produced pieces
3- The image positioning system cooperates with YAMAHA manipulator to achieve higher speed and more accurate positioning (±0.1mm)
Part of the paper feeding conveyor belt
1. High-strength monochromatic PU conveyor belt. (Compared to the rubber belt, it can achieve smaller deformation and easier to wipe, and can replace the black and white double color belt according to customer needs)
Box visual positioning part
1. Absolute carton positioning device. (The double-cylinder positioning carton ensures that each carton is in a uniform position, and it has an unparalleled advantage compared to the structure that needs to be positioned by the relative friction between the carton and the belt)

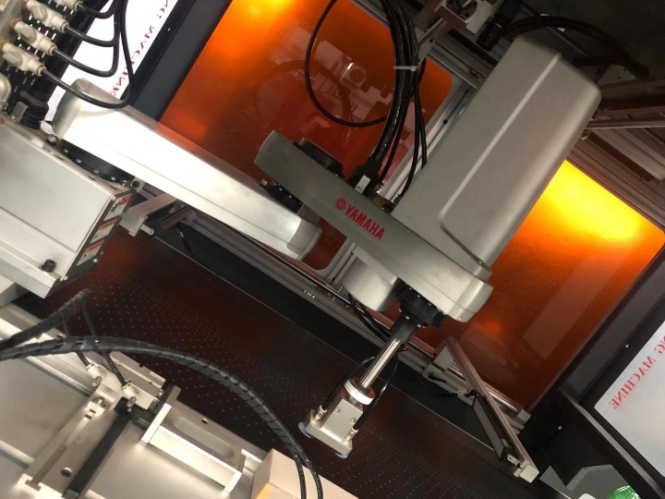

2. Japanese YAMAHA manipulator and dual 500W industrial cameras. (Compared with a single camera with a large field of view, it has better positioning accuracy, and a high-power SCARA achieves faster speed and accuracy)

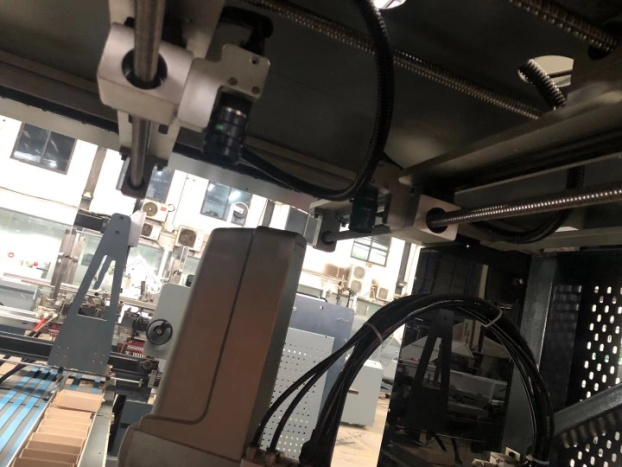

3. Motorized camera adjustment device. (Equipped with roller screws to achieve more precise camera position adjustment, with self-locking function to place the camera moving due to equipment movement)
Main Specifications.
Model | SJ-600Y |
Length of paper | 190-1000MM |
Width of paper | 130-600MM |
Finish size Max | 450x350x150MM |
Finish size Min | 100x50x15mm |
Thickness of paper | 80-200g/㎡ |
Thickness of cardboard | 1-3MM |
Precision | ±0.1MM |
Working Speed | 0-30 PCS/MIN |
Dimension | L7600*W3500*H2100MM |
Power supply | 15KW |
Weight | 1500KGS |
Koten Machines Container Loading.
140 Countries Clients Who Has Koten Brand Machines Till 2019.
2. Guarantee.
3. Delivery Time.
4. What is your package?
5. Do you have Installation and Training service if we bought the machines from your company?
6. Have you sold any machines to our country?
7. What is your payment terms?
8. What your company can offer?
Paper Bag Making Solutions.
Exhibitions and Customers'Meeting.
Factory Production.
