Roll Paper PVC Film Aluminum Foil Slitting Cutting Machine Into 5mm Small Width

Quantity:
  • ZKF-700/1000
  • Koten
  • ZKF-700/1000
  • Negotiable
  • One Set
  • T/T
  • 50sets/month
  • Strong seaworthy wooden cases.
  • Within 30 days after get the deposit.
  • China
  • 10048

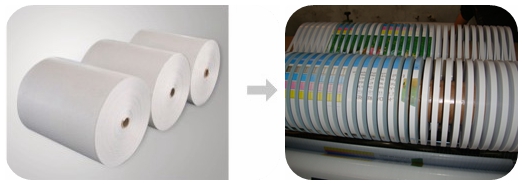

Process.

光影魔术手拼图

Usage.

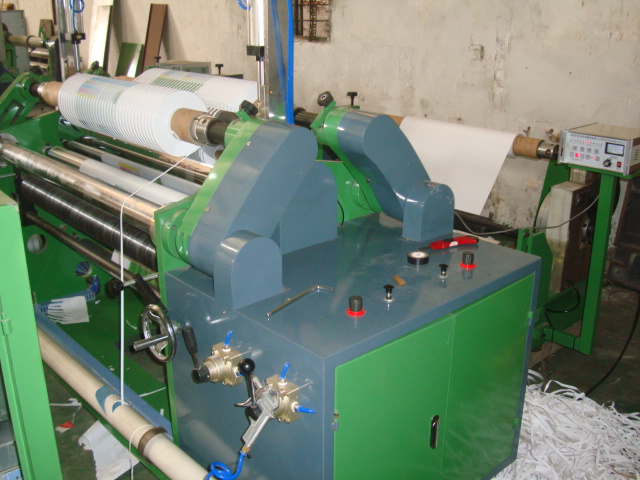

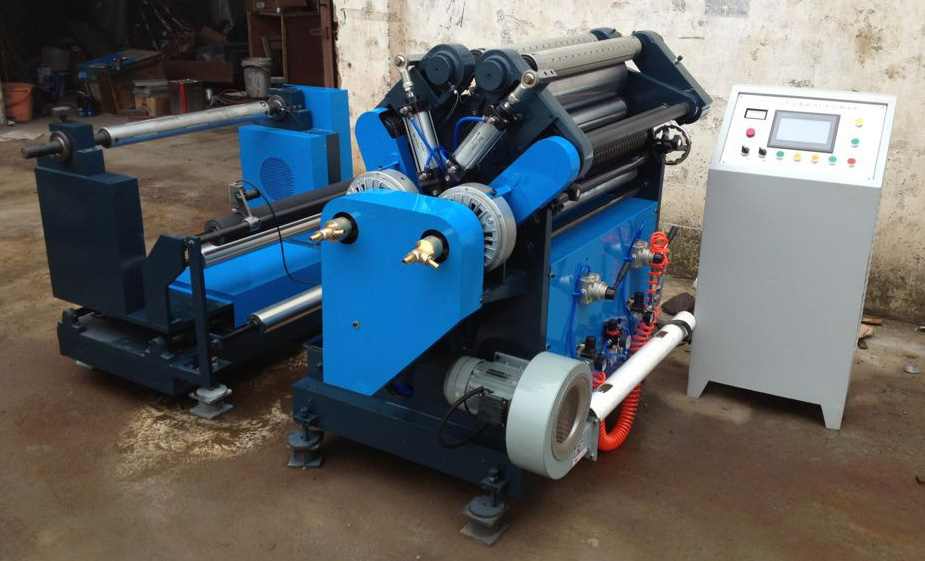

This slitting rewinding machine is an ideal equipment which is suitable for small-scale cutting these materials, such as reel paper, plastic piece, Al foil, PVC, plastic film and insulation material, etc. The main machine features with frequency speed control, unwinding with constant tension magnetic powder control, photoelectricity automatic deflection-rectifying, winding with both central and surface reeling which coordinated controlled (air pressure) by two magnetic powder clutches and main machine, interleaving winding with double shafts and never undercutting, presetting counter and automatic stop.

Main Specifications.


Model ZKF-700
Max.unwinding width 700mm
Paper Thickness 20-300gsm
Max.unwinding diameter 1000mm
Max.rewinding diameter 500mm
Min.rewinding width 3mm(depends on different material)
Max.rewinding width 500mm
Slitting precision +0.5mm
Speed 10-200m/min
Motor Power 4kw/380V
Diameter of air shafts 76mm(3inch)
Machine weight 2000kg
Machine size 2250X850X1050MM

Koten Machines Container Loading.

光影魔术手拼图
140 Countries Clients Who Has Koten Brand Machines Till 2019.

1

FAQ.

1. Why choose us to cooperate?
Factory prices, flexible payment terms and professional quality inspection team which has the guarantee for machines, in time after sales service, and more than 15 years experience for exporting. Reputation and quality is what we are considering all the time.


2. Guarantee.

There is 12 month guarantee of each Koten brand Machines since customer got the machine. Within one year, the damaged spare parts can be changed for free, and we provide lifetime technology support on line.


3. Delivery Time.

Within 7-30 days after get the deposit. Depends on different machines.


4. What is your package?

What the package we use is strong seaworthy wooden cases. Each machine will be protected by anti-rusted oil before put into the case and there are desiccants will be packed into the machine together.


5. Do you have Installation and Training service if we bought the machines from your company?

The training service will be done by our agency dealer in some countries. If customers request us to dispatch our engineer to their country for installation and training, customers should take all necessary cost, like return flight tickets, hotel, food and salary USD100/day. If customer dispatch their engineer to our factory for training, it is free.


6. Have you sold any machines to our country?

We have to say that there are 140 countries' customers who have the "KOTEN" brand machines till 2019. Pls check with the sales manager to get more information if you need the machines' feedback.


7. What is your payment terms?

T/T. If the amount less than USD30,000.00, 30% paid in advance as a deposit, 70% balance paid before shipment.
L/C. If the sales amount above USD30,000.00, 30% paid by T/T as a deposit, 70% balance paid by irrevocable L/C at sight.
By Cash, by western union, credit cards are acceptable.
Special country like Bangladesh or Algeria can be available for 100% by irrevocable L/C at sight.


8. What your company can offer?

Exercise Books Making Solutions.
Soft Cover Books Making Solutions.
Hard Cover Books Making Solutions.
Spiral Books Making Solutions.
Postpress and Paper Converting Solutions.
Paper Box Making Solutions.
Rigid Box Making Solutions.

Paper Bag Making Solutions.


Exhibitions and Customers'Meeting.
光影魔术手拼图
     Factory Production.
1-2
