Roll to Sheet Laminating Machine With coating unit With UV and IR system

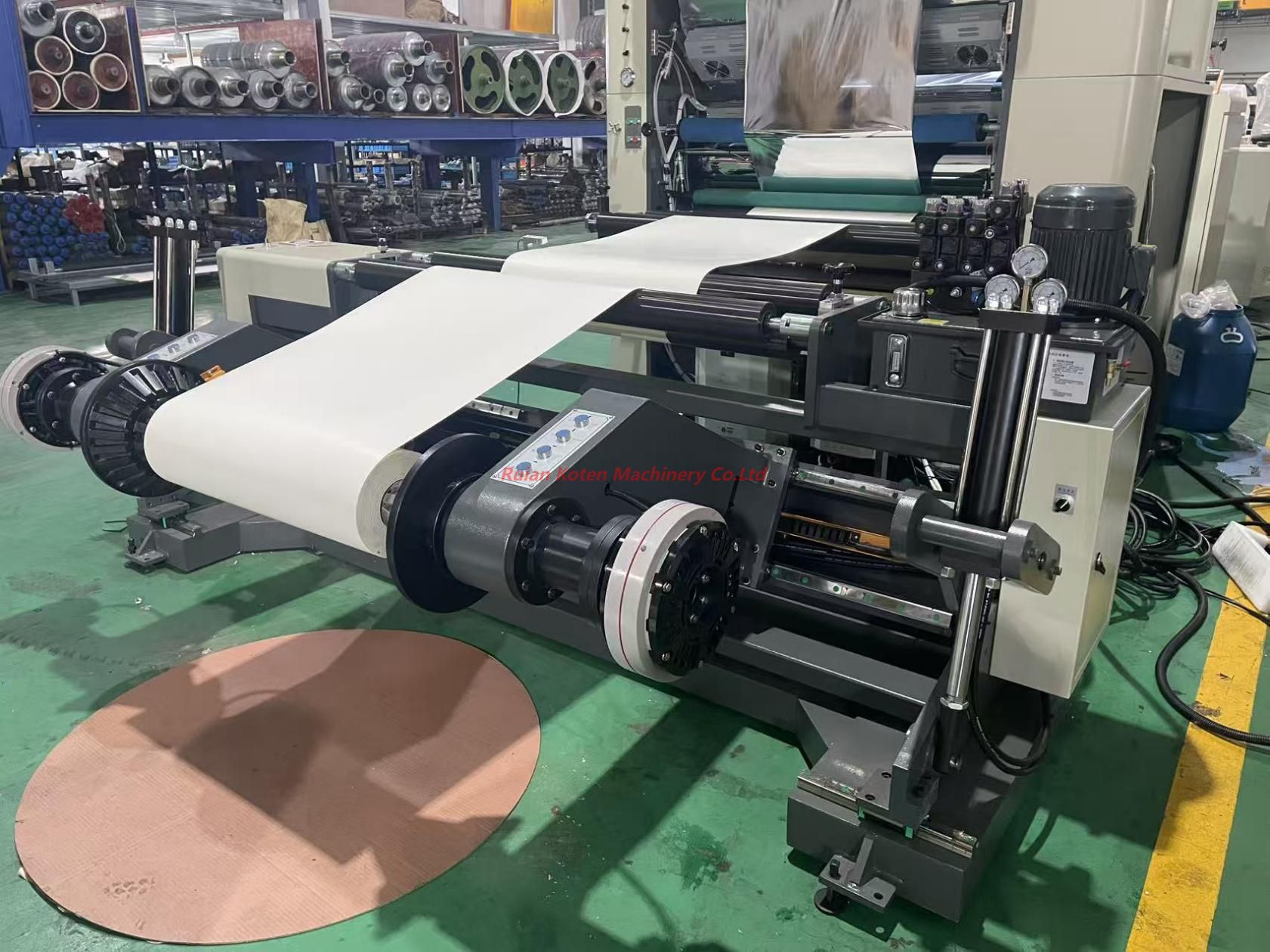

1. Shaftless Unwinding: The unwinder adopts shaftless feeding system that both suitable for 3inch and 6inch paper core and could support big jumbo roll. Shaftless unwinder is easy for loading and unloading.

2. Compact machine structure design that would be easy for cross the paper materials inmachine and save the materials waste.

3. Ultrasonic Web guide: Adopts ultrasonic web guide system, that with sensitive correction sensor.

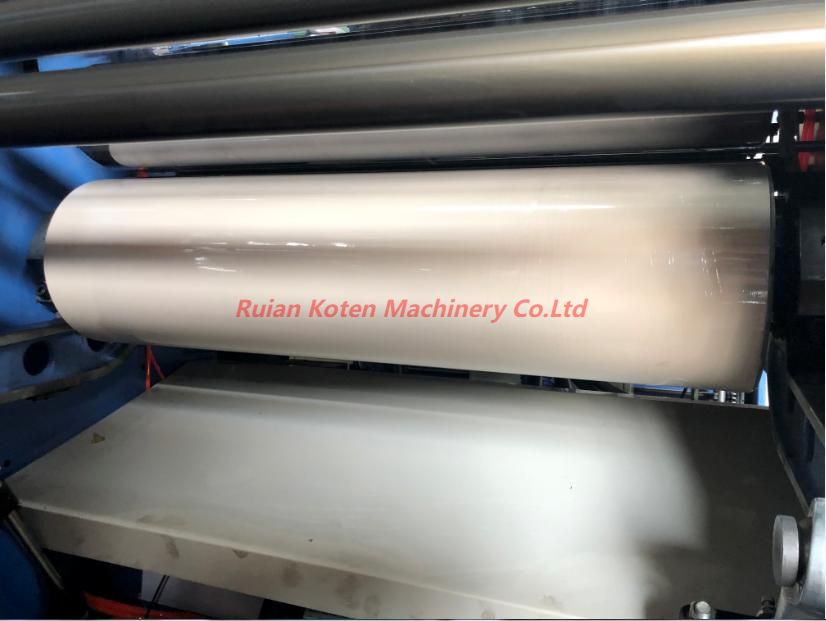

  4.Teflon coated drying roll: Exclusive treatment of drying roll with Teflon coating that make the roll surface smooth and glue stickless. Compare with chrome plate, the temperature will more balanced.

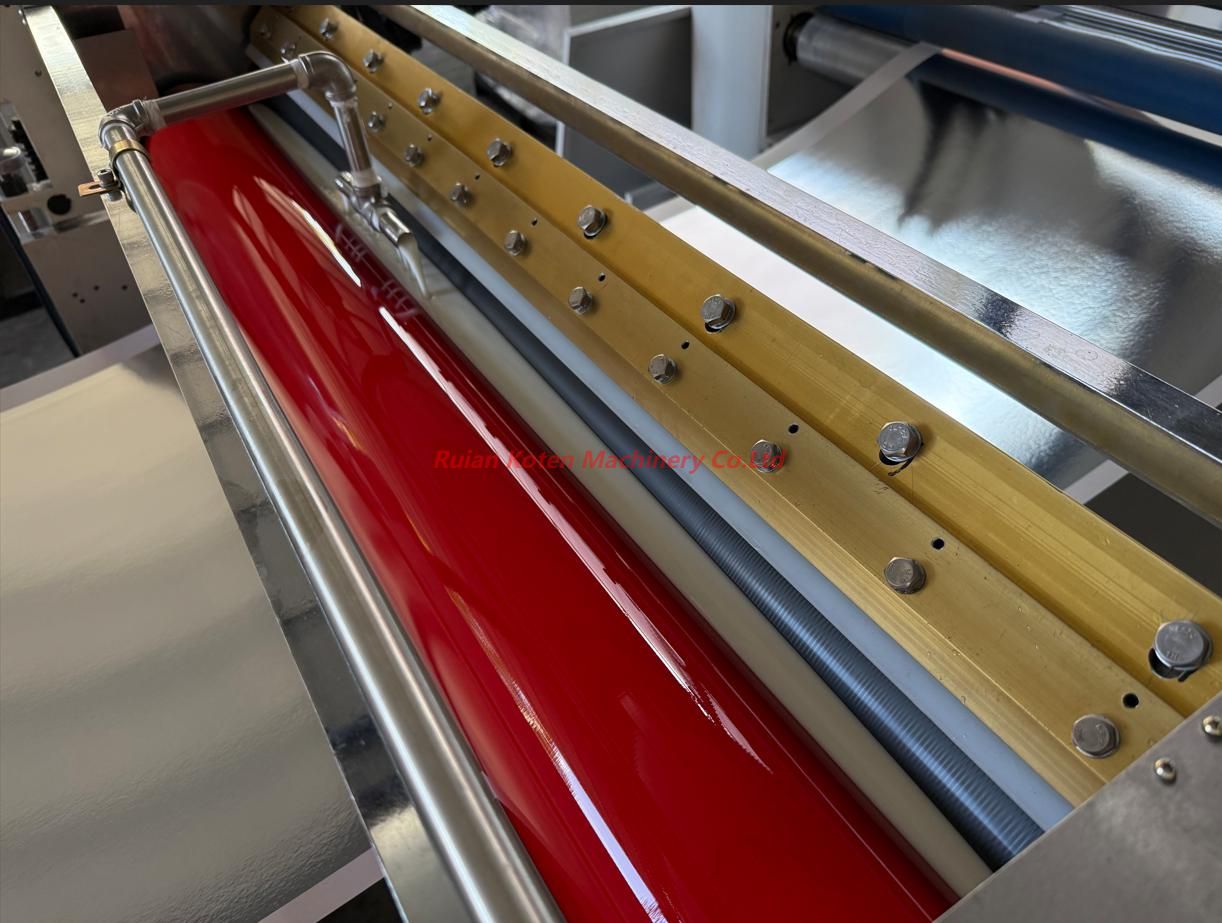

5.Double metal roll glue coating system: High precision treatment double rolls coating system with Rubber blade (metal blade) that could be available for various glue, and also save a lot glue (3-4g/m2)

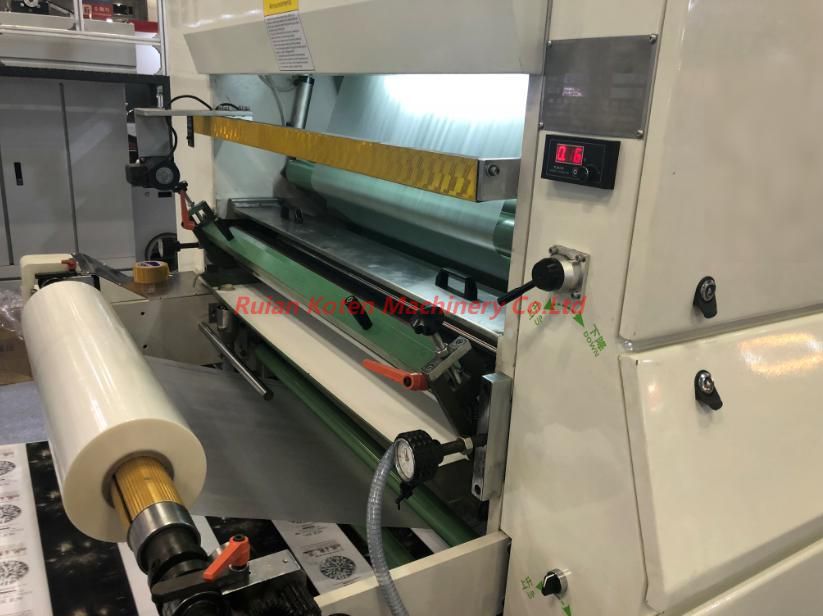

6. Drying and Heating System: Bulk 800mm diameter drying roll with Teflon coating, that could bring the highest glue drying effect, large heating roll by electromagnetic heating plus oil heating, guarantee the heating efficiency and make sure laminating quality when run in high speed.

7.Main Machine Body: Thicken machine wall (25mm thickness) enhances stability and for long time service life.

8. Three rows chain Driving System: Special structure design in minimum transmission line, adopts three rows chain to drive the laminating unit to guarantee the high laminating speed with low noise.

9. Pneumatic Pressure System: fully pneumatic system to control the laminating pressure, the pressure would highly uniform and easy to adjust.

10.Man-Machine Interface System: Advanced 10inch color screen with PLC system makes the operation easy and convenient.

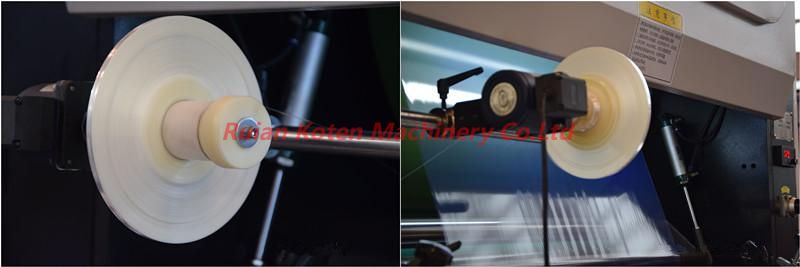

  11. Automatic tension system: The machine comes with auto tension system to control the jumbo materials. And adopts independent tension system for film roll.

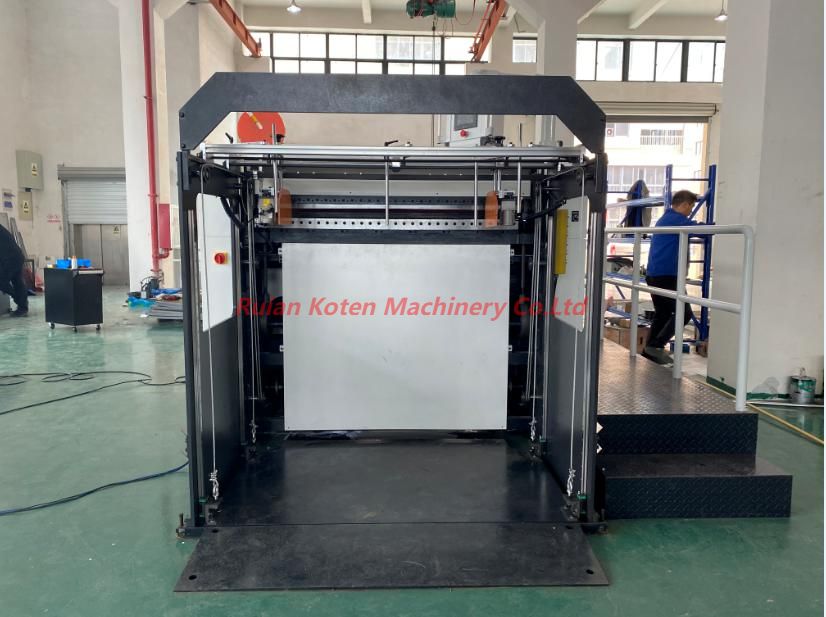

12. Rewinder: Thicken machine body to support big rolls and make sure the reminded materials roll edge flat and smooth
