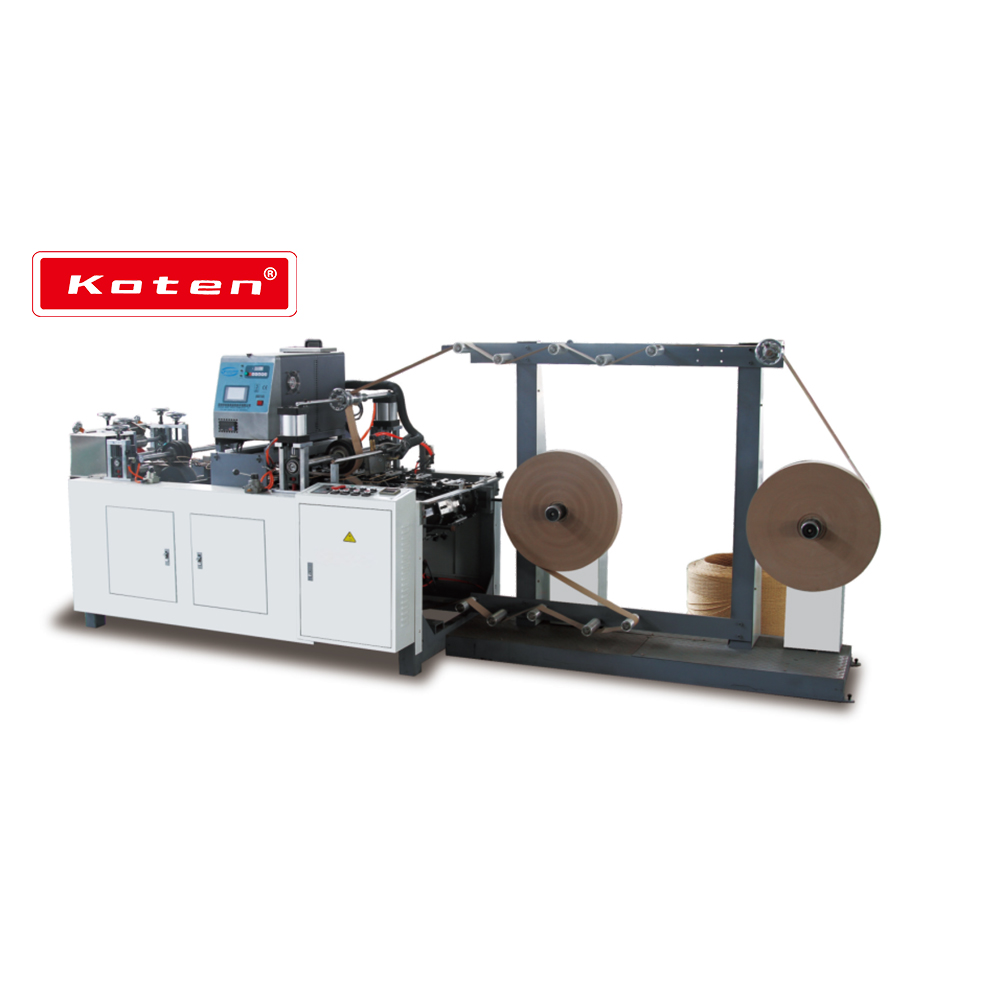

KW-10E
Koten
KW-10E
Negotiate
1
T/T, L/C At Sight
30 sets/month
By strong sea worthy package
Within 15 days after receipt of the deposit.
China
5846
| Quantity: | |
|---|---|
It adopts hot melting gel, which makes it hard for the handles to be separated, with strong support capacity. Easy operation and high capacity;
| Speed | 200-300 pcs/minute |
| Paper patch length (C) | 190mm，160mm, 130mm |
| Paper Patch width (B) | 35-45mm |
| Paper rope height (A+B) | 110-190mm |
| Diameter of paper rope | 3-4 mm |
| rope spacing range (D) | 88 mm |
| Paper weight | 80-140 gsm |
| Power | 4.8 kw |
| Machine Measurement | 3000 × 2300 × 1900mm |
| Machine Weight | 2000kg |
Hot melt Device
Brand : JMS
Model: KA-10C
Power : 1.45KW
pipe length : 1.2M
gluing width : 70-110mm
volume of Vat: 10kg
100-240℃ temperature of the Vat: 100-240℃
2. circular knife: ￠120X ￠25 high speed steel
3. blade : 60X60chrome steel
4. shim cover: plastic steel
5. hot gule : using after 9 seconds
6. hot glue dosage : 0.7-1.0 g / pair
7. Diameter of paper rope : 3-4 mm
| Motor | LIXIANG |
| Low-voltage apparatus | CHINT |
| Bearing pedestal | TR |
| Bearing | NSK |
| Transducer | Alpha |
