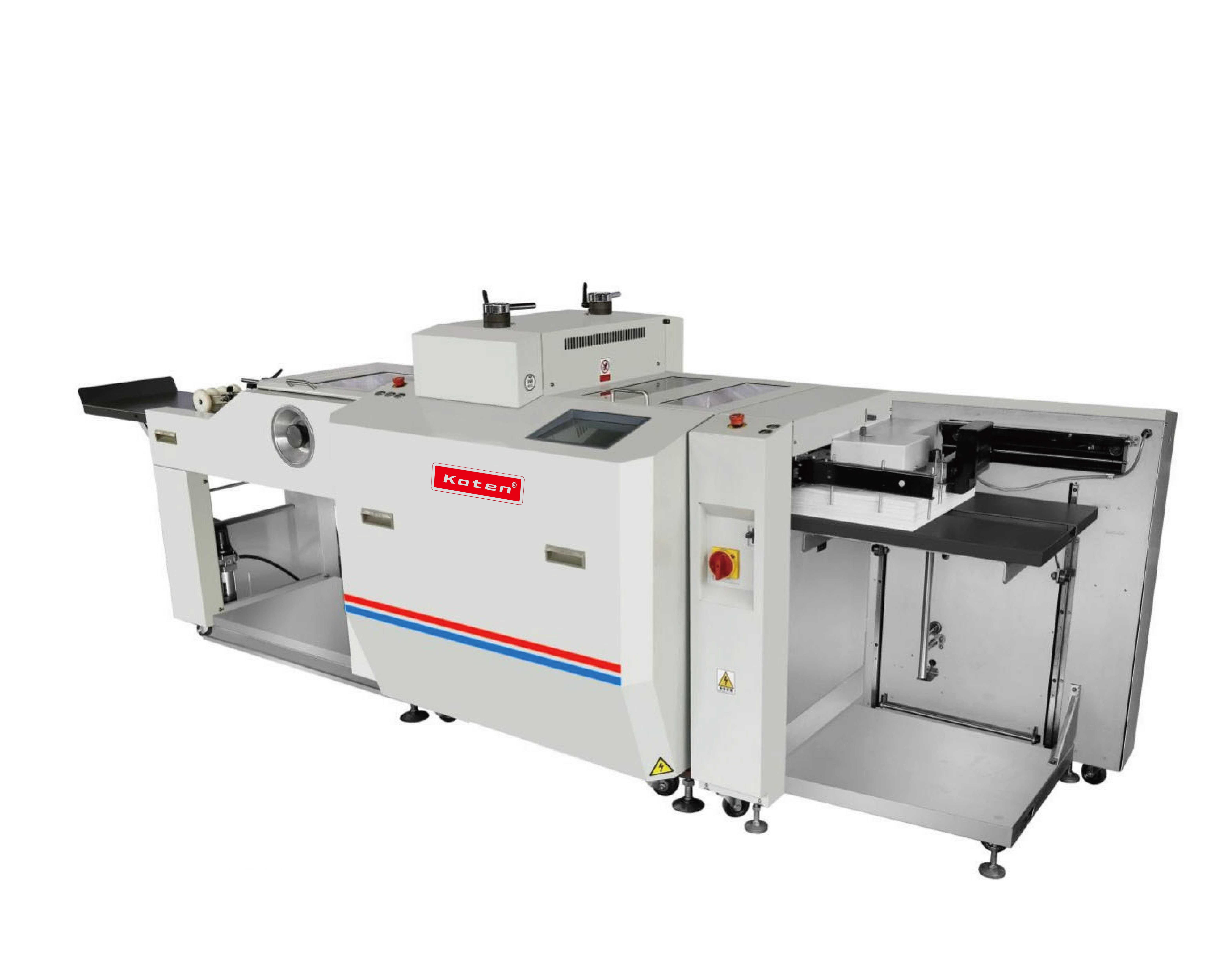

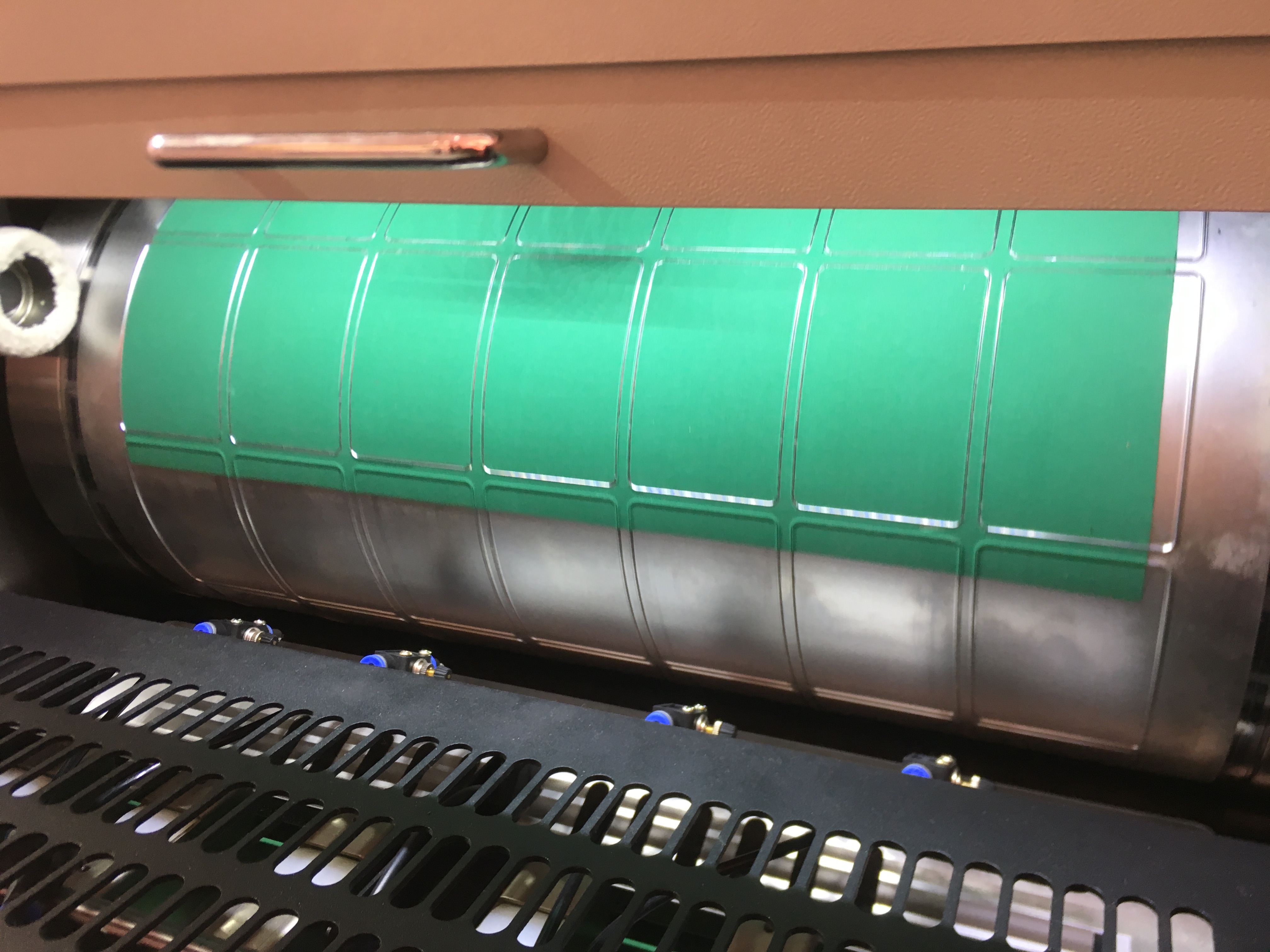

Roller Die Cutting machine is to cut the paper with the mould. It can be applied to normal paper, coated paper and cardboard, (the following paper cannot be processed: composite paper (covered with polypropylene) or plastic film). Speed can reach 6000 cycles per hour. It can remove the waste automatically, easy to operate and save time with the efficient work.

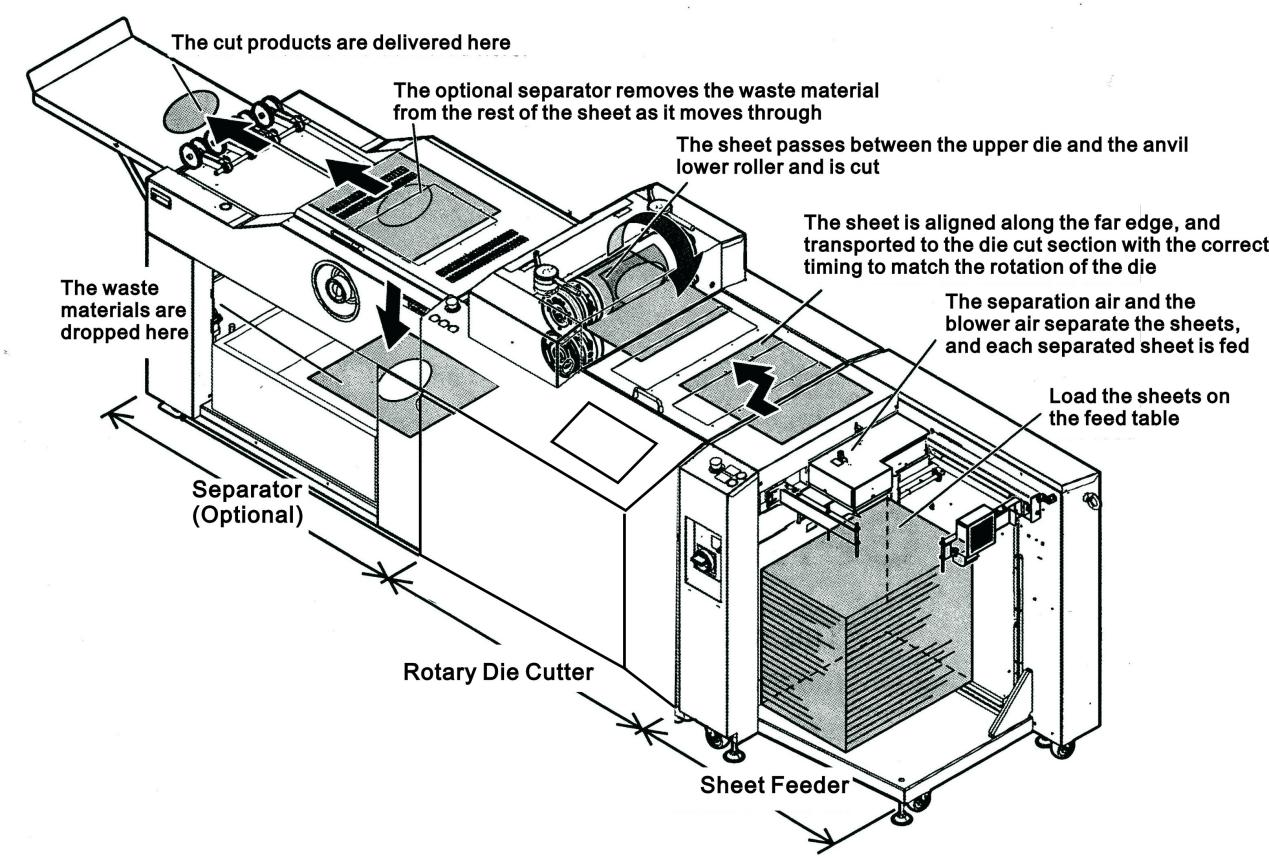

Process Flow

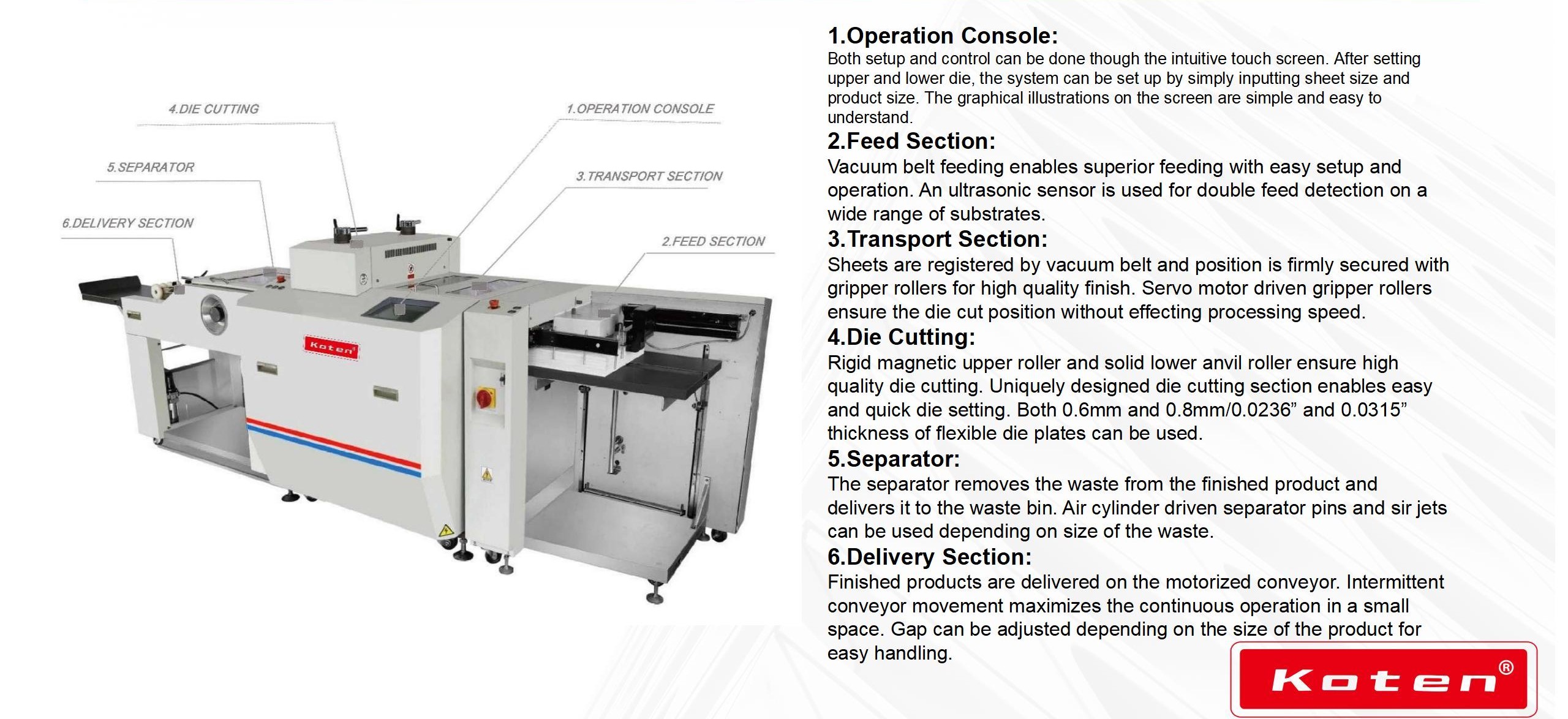

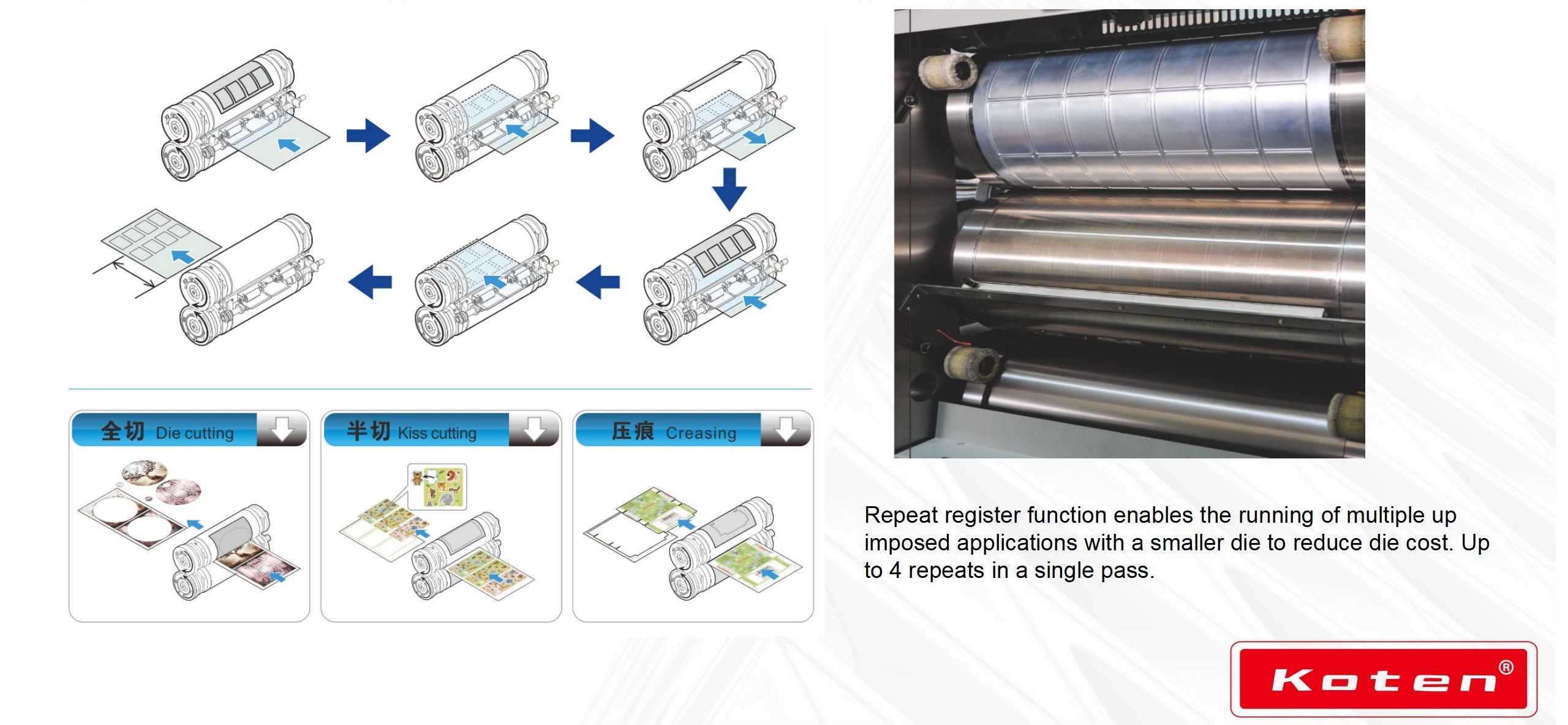

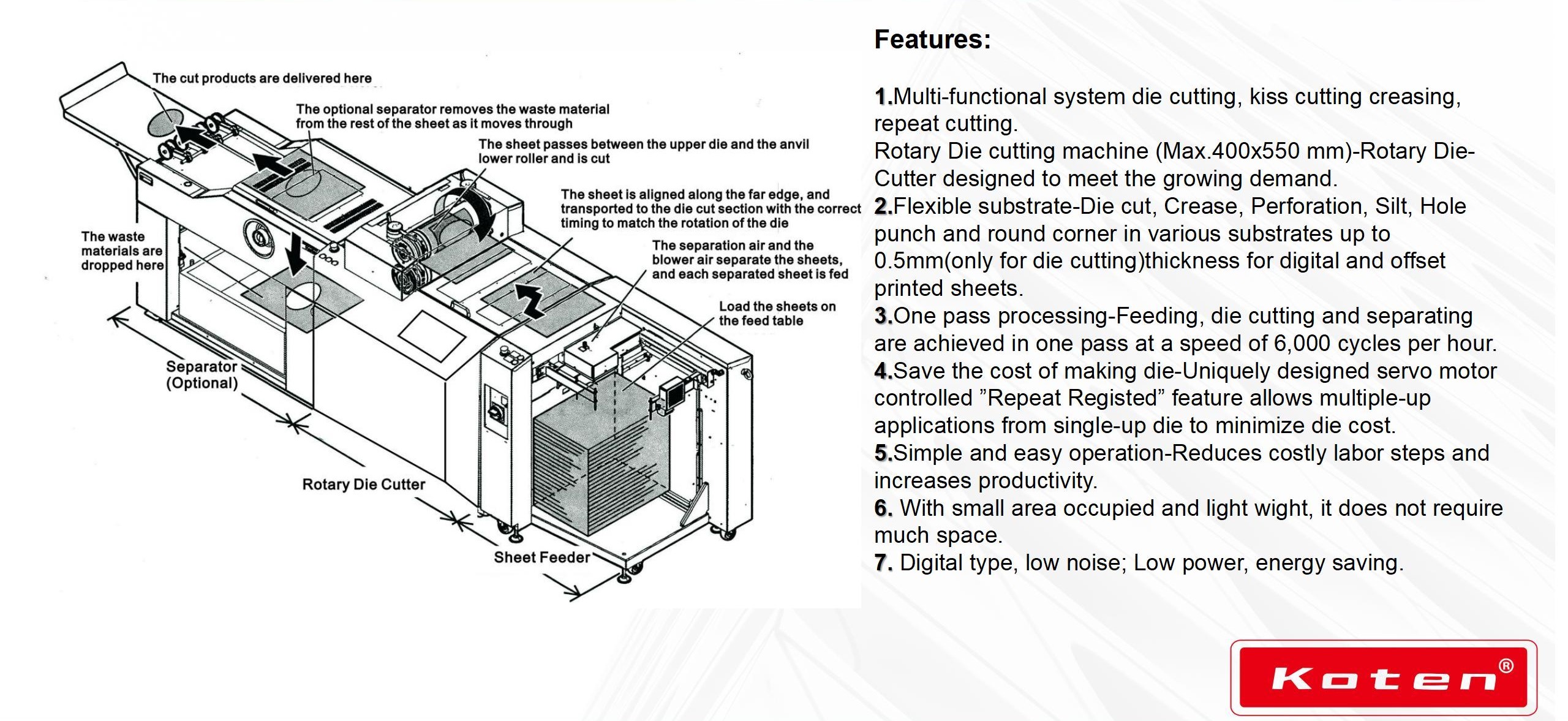

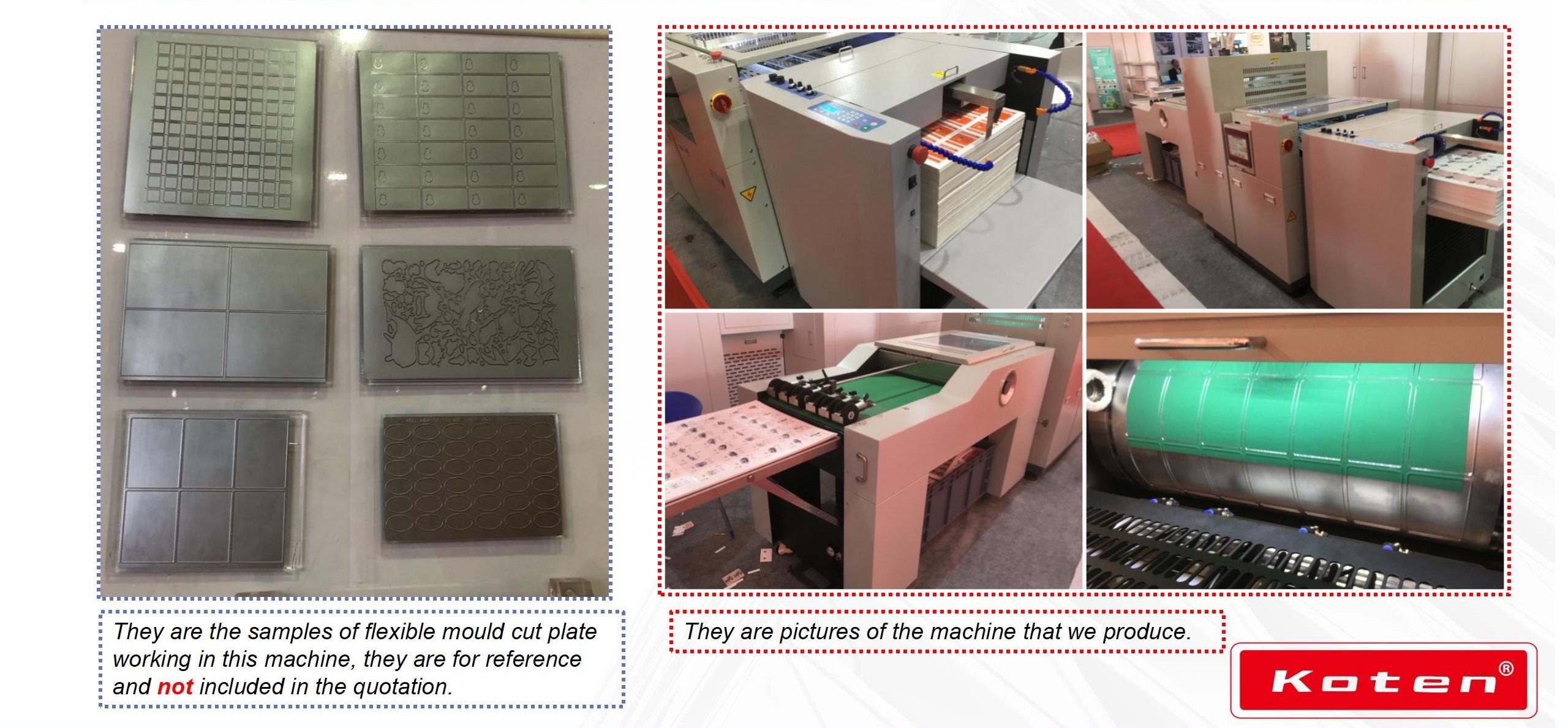

Product details
Specification
Sheet feeding system | Vacuum Feed Belts | ||
Sheet Size(before processing) | Width xLength | Max.400X550mm/15.74X21.65 Min.200X275mm/ 7.88X10.83 | |
Cut product Size The size may be limited depending on shape and sheet weight range. | With separator | Max.376X530mm/14.8X20.8 | |
Min.50X80mm/1.97X3.15 | |||
Without separator | Max.384X530mm/15.1X20.8 | ||
Min.Depending on die shape | |||
Processed Material | Normal paper,Coated paper,Cardboard | ||
Material Thickness | 127.9 to 400gsm 0.5mm/0.019 Die cutting:Max.0.5mm/0.019 0.8mm/0.031 (In case of blade height:0.8mm/0.031) 0.3mm/0.001 Die cutting:Max.0.3mm/0.001 0.6mm/0.023 (In case of blade height:0.6mm/0.023) 0.4mm/0.015 Creasing:Max.0.4mm/0.01 0.8mm/0.031 (In case of blade height:0.8mm/0.031) | ||
Feeder stack Height | 500mm | ||
Die Size Upper Die | Max.400X560mm/15.74X22.04Min.160X100mm/6.30X3.94 | ||
Upper Cutting Blade Height | 0.6mm or 0.8mm/0.0236 or 0.0315 | ||
Production Speed | 6000cycles per hour | ||
Voltage/Frequency | Single Phase 200 to 240V,50/60Hz | ||
Machine Weight | With separator:1200KGWithout separator:900KG | ||
Main configuration
Configuration | Brand | Original |
10’’touch screen | AB | America |
Control system | AB | America |
Expansion module | AB | America |
Power module | AB | America |
Communicationmodule | AB | America |
End cover | AB | America |
Servo Motor | Panasonnic | Japan |
Servo driver | AB | America |
Servo cable | AB | America |
Exchange board | AB | America |
Communication cable | AB | America |
Encoder | AB | America |
Encoder access module | AB | America |
Transducer | AB | America |
Wear parts list
Item No. | Wear Parts | Q’ty |
1. | Stainless steel lining | 2pcs |
2. | Guide rail groove | 1pcs |
3 | Rack bottom pad | 1pcs |
4 | Single-sided self-adhesive sponge pad (500x500x1) | 1pcs |
5 | die shovel | 1pcs |
6 | Scrap storage box (500x600x350) | 1pcs |
7 | Soft cushion block | 4pcs |
8 | Narrow separation guide | 5pcs |
9 | Wide separation guide | 2pcs |
10 | Crane wrench | 1pcs |
11 | Upper mold tool | 1pcs |
12 | Regular screws | 1set |
13 | Hexagon socket head bolt M4X12 | 8pcs |
14 | T-type connecting pipe | 2pcs |
15 | Straight connecting pipe | 2pcs |
16 | No. 220 lubricating oil | |
17 | timing belt | 1set |
18 | Round belt R-3X734 | 5pcs |
19 | Round belt R-3X734 | 5pcs |
20 | Flat belt 1487Ｘ20X1.5 | 1pcs |
21 | GB/T276-608ZZ deep groove ball bearings | 4pcs |
22 | Sponge piece | 5pcs |
Usage and scope of use
1.The Rotary Die Cuting Machine is a suitable equipment for different production. It is suitable for smallbatch and repeated production, lt use flexible mould and easy to replace.
2.Through the flat -type paper feeder and positioning table,the paper enters the die-cuting section, and the positioning accuracy of the paper-feeding direction can reach +0.1mm.
3.Automatic paper lifting, automatic paper feeding, double sheet detection, chasing mark alignment die cuting, automatic deviationcorrection.automatic waste discharge and other functions.
4.The separator section can be directed to blow away waste, and adjustment does not reguire tools.
5.The collection section can be pushed away as a whole, providing maximum convenience for changing the mould.
6.The wheel of separator section is Electrical control, Timing up and down, the final product willbe output to the receiving table regularly
7.The machine have Multifunction: die cutting、 creasing、 kiss cuting and repeat cuting. Suitable for the size of material within B2 size(including B2 size)
8.Mainly suitable for stickers, tags, wine labels, plaving cards, smallboxes and so on. The processing materials are suitable for plain papercoated paper,cardboard, PE film, and so on.
Application
