QH-7090ZK
KOTEN
QH-7090ZK
Negotiable
1
T/T, L/C at sight.
10sets/month
By strong sea worthy package
after received 30% deposit.
China
2061
| Maximumsize: | |
|---|---|
| Quantity: | |

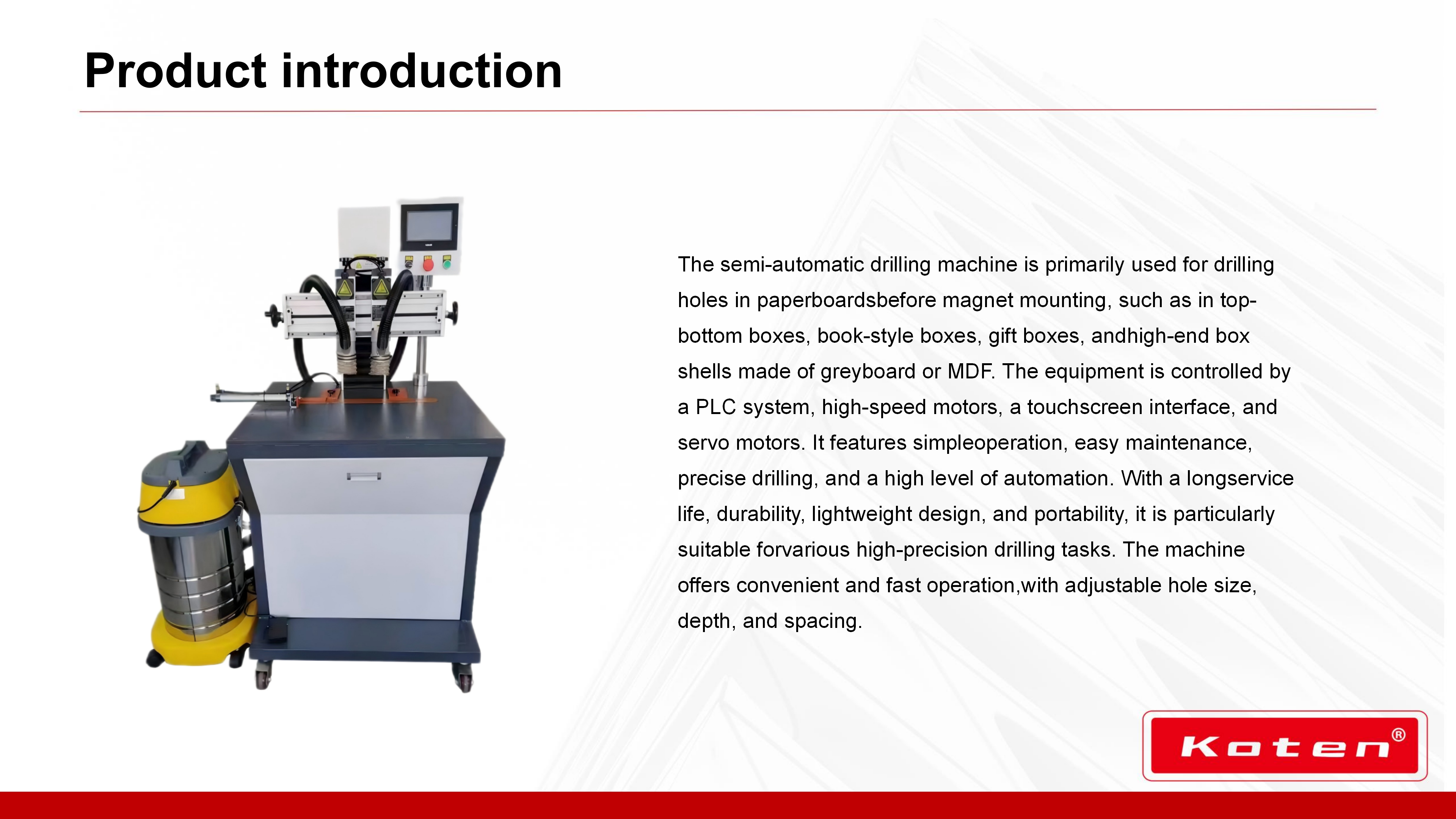

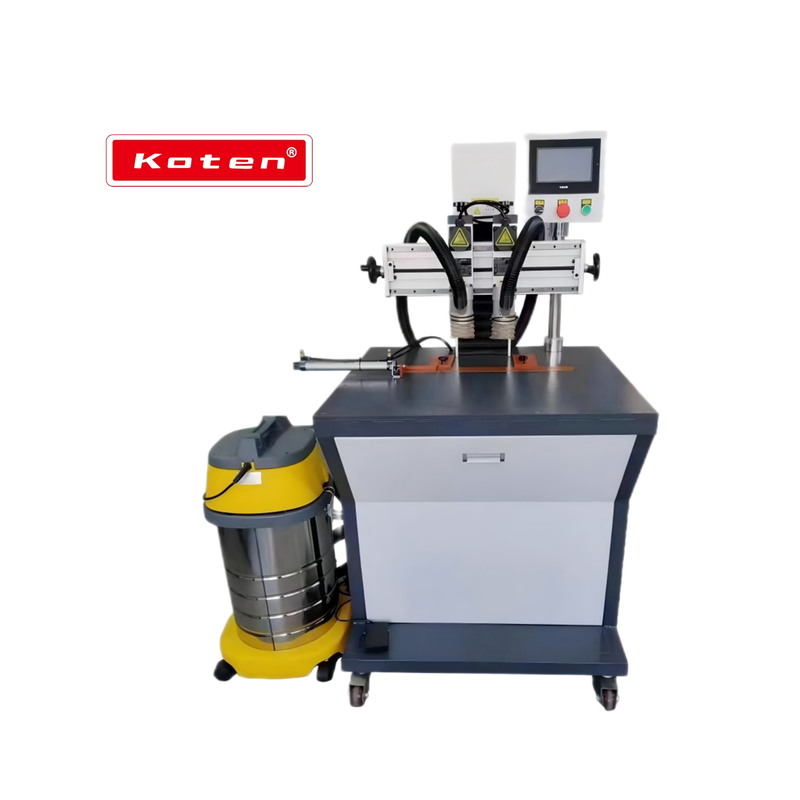

Semi-Automatic Drilling Machine

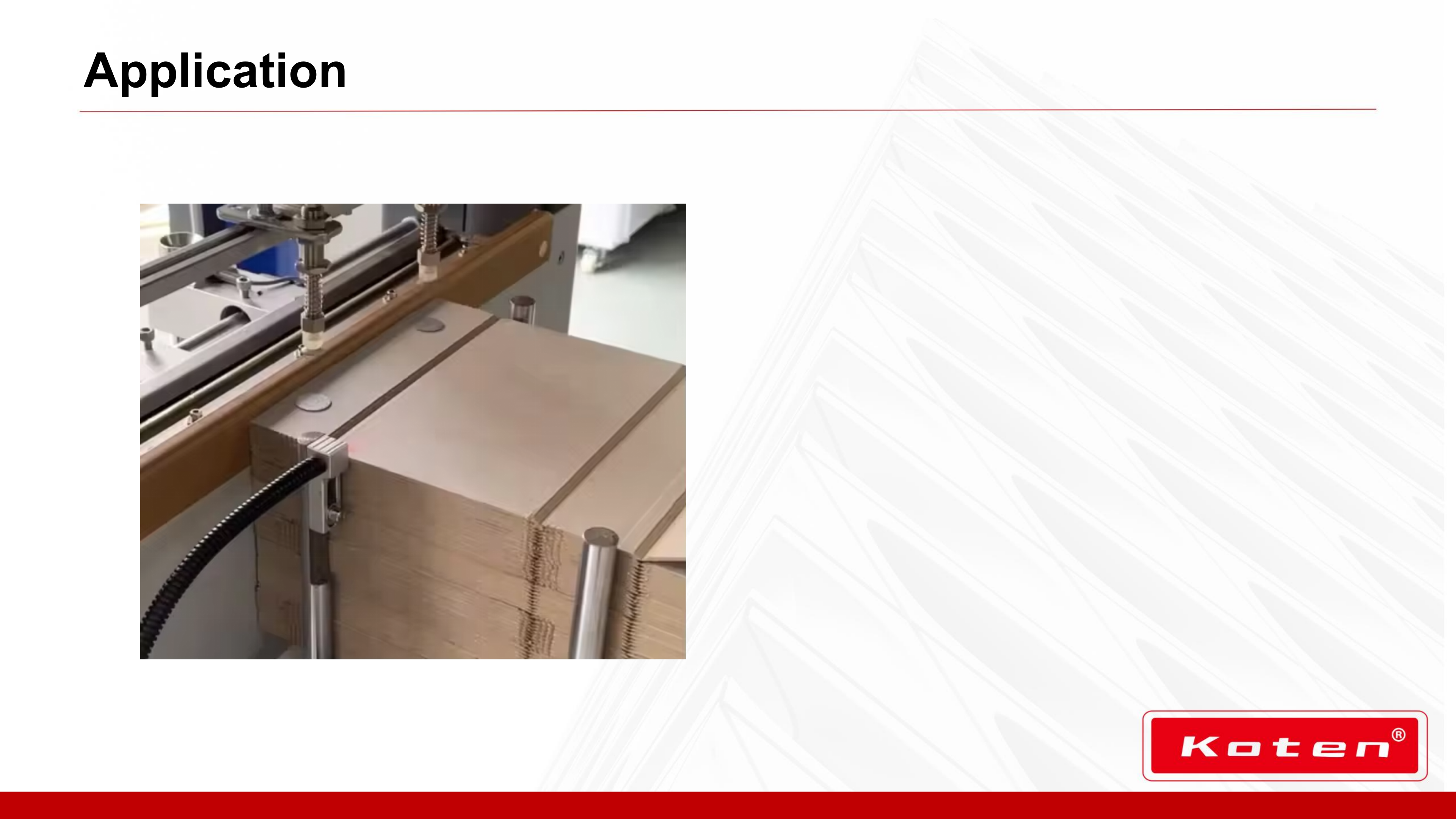

The semi-automatic drilling machine is primarily used for drilling holes in paper boards before magnet mounting, such as in top-bottom boxes, book-style boxes, gift boxes, and high-end box shells made of grey board or MDF. The equipment is controlled by a PLC system, high-speed motors, a touchscreen interface, and servo motors. It features simple operation, easy maintenance, precise drilling, and a high level of automation. With a long service life, durability, lightweight design, and portability, it is particularly suitable for various high-precision drilling tasks. The machine offers convenient and fast operation,with adjustable hole size, depth, and spacing.

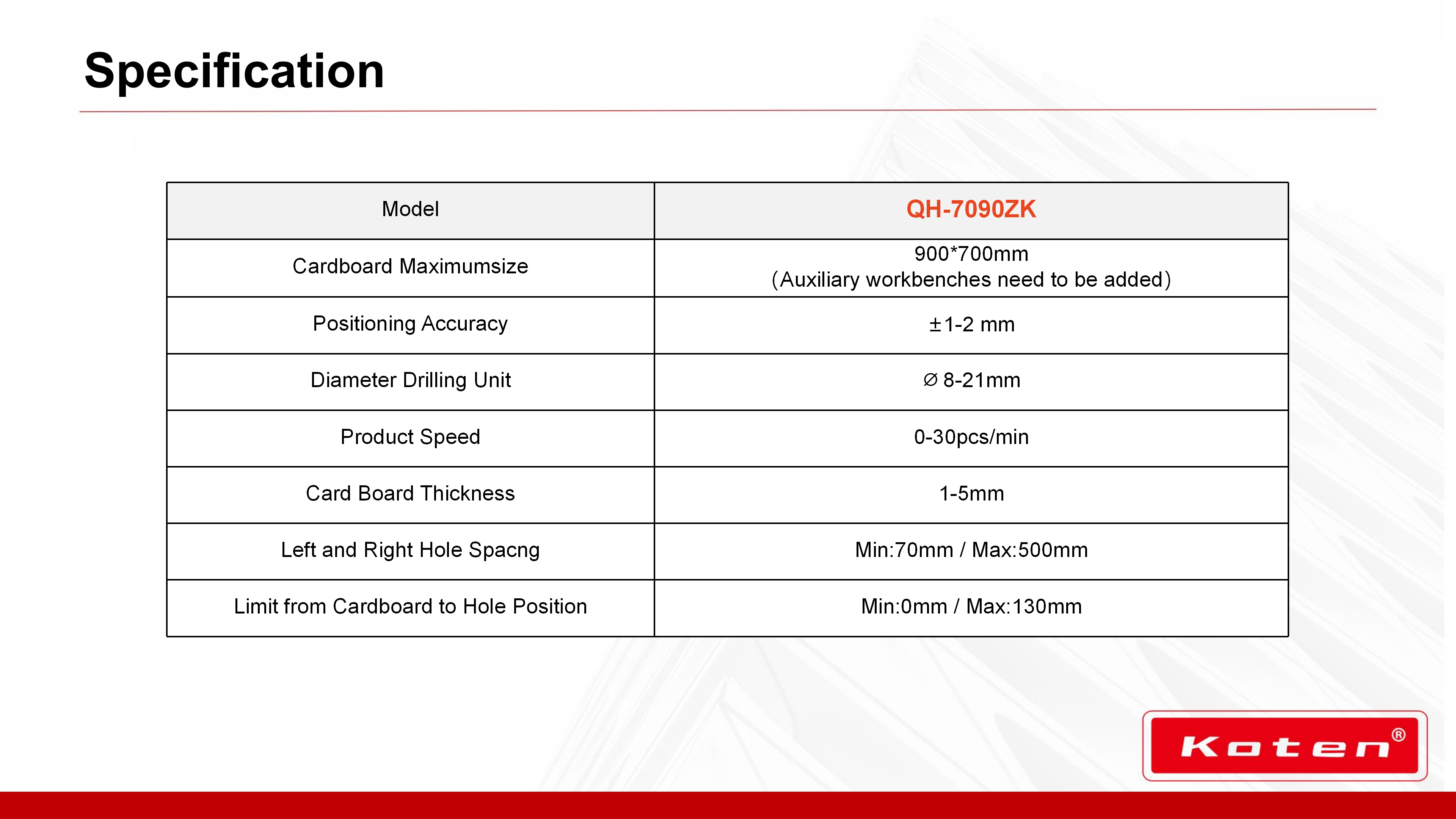

Model | QH-7090ZK |
Cardboard Maximumsize | 900x700 mm （Auxiliary workbenches need to be added） |
Positioning Accuracy | ±1-2 mm |
Diameter Drilling Unit | ⌀8-21 mm |
Product Speed | 0-30 pcs/min |
Card Board Thickness | 1-5 mm |
Left and Right Hole Spacng | Min: 70 mm / Max: 500 mm |
Limit from Cardboard to Hole Position | Min: 0 mm / Max: 130 mm |

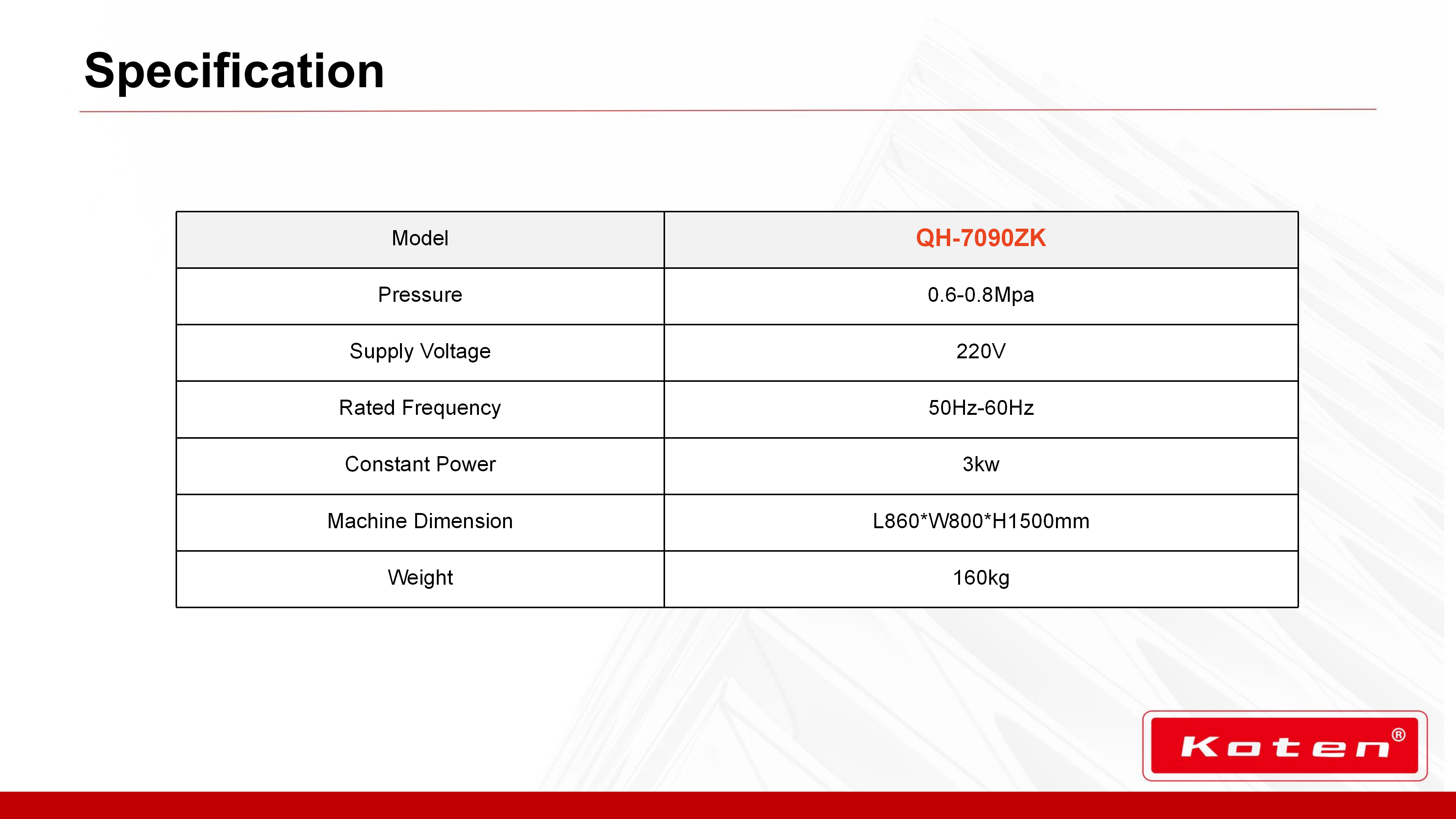

Model | QH-7090ZK |
Pressure | 0.6-0.8 Mpa |
Supply Voltage | 220 V |
Rated Frequency | 50-60 Hz |
Constant Power | 3 KW |
Machine Dimension | 860x800x1500 mm |
Weight | 160 KG |
