QH-TP600
KOTEN
SZJ-800
Negotiable
1
T/T, L/C at sight.
10sets/month
By strong sea worthy package
after received 30% deposit.
China
2061
| Maximumsize: | |
|---|---|
| Minimumsize: | |
| Quantity: | |

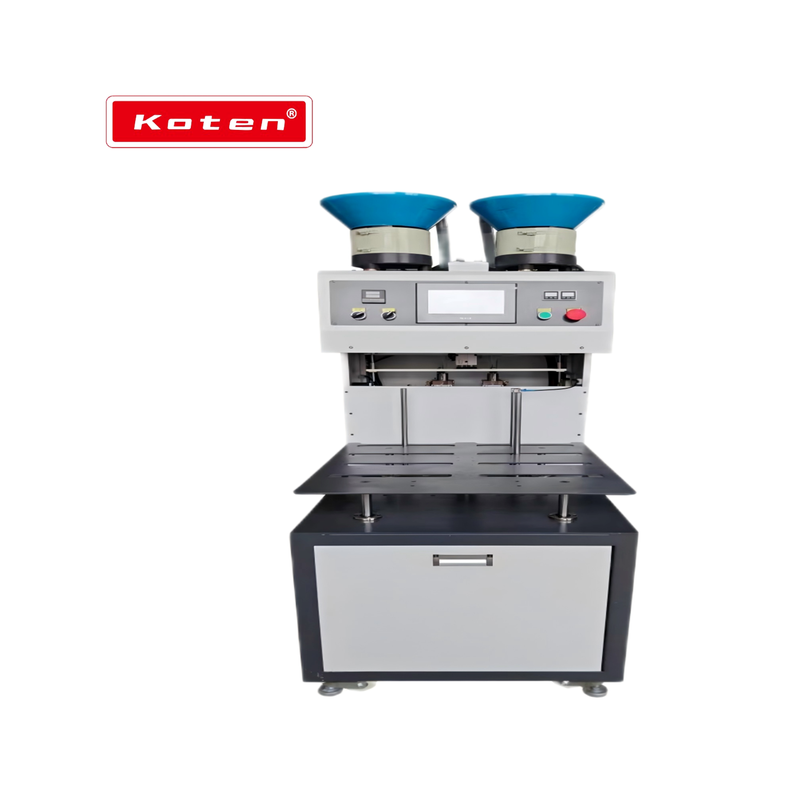

Semi-Automatic Iron Sheet and MagneDual-purpose Machine

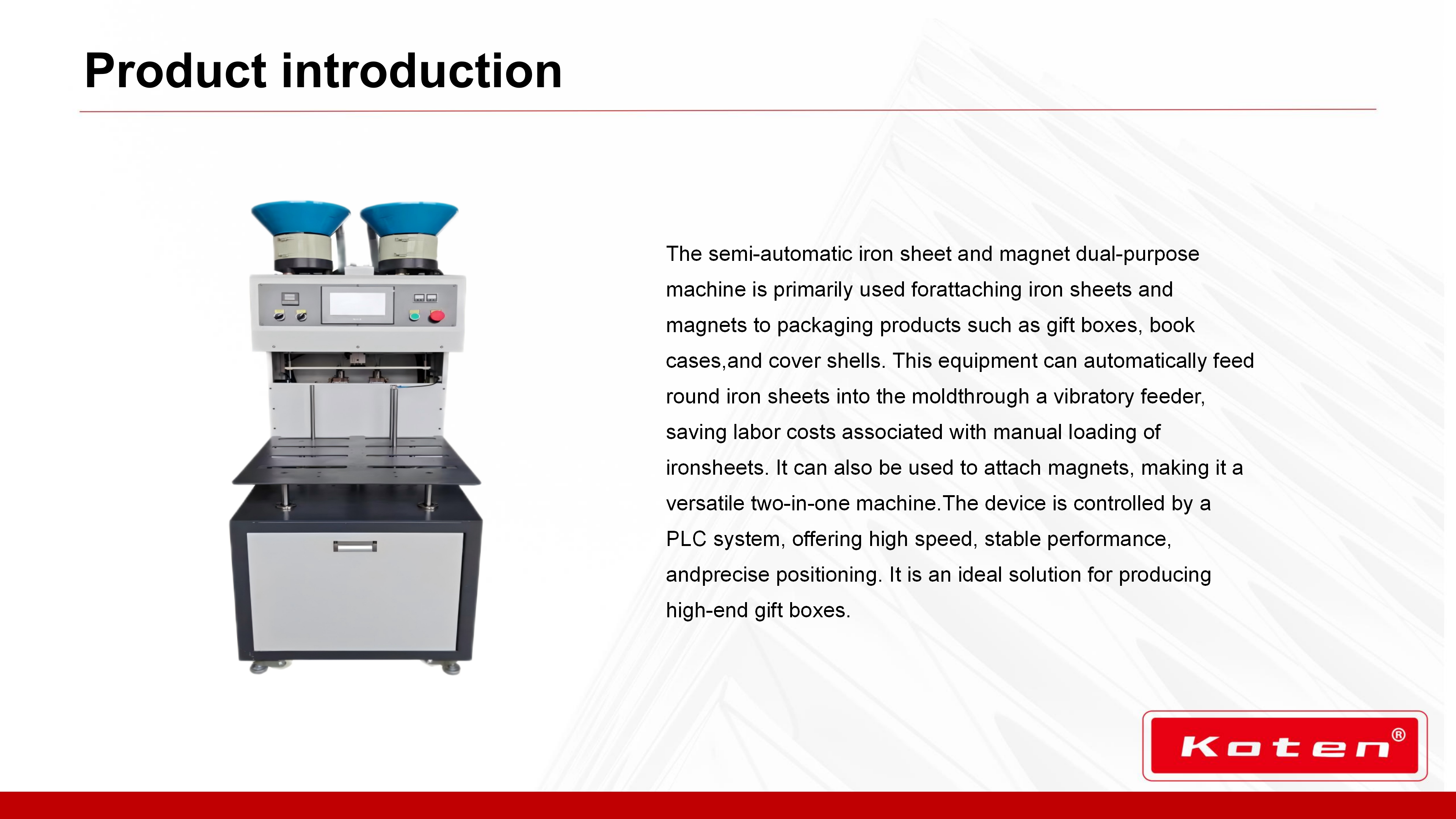

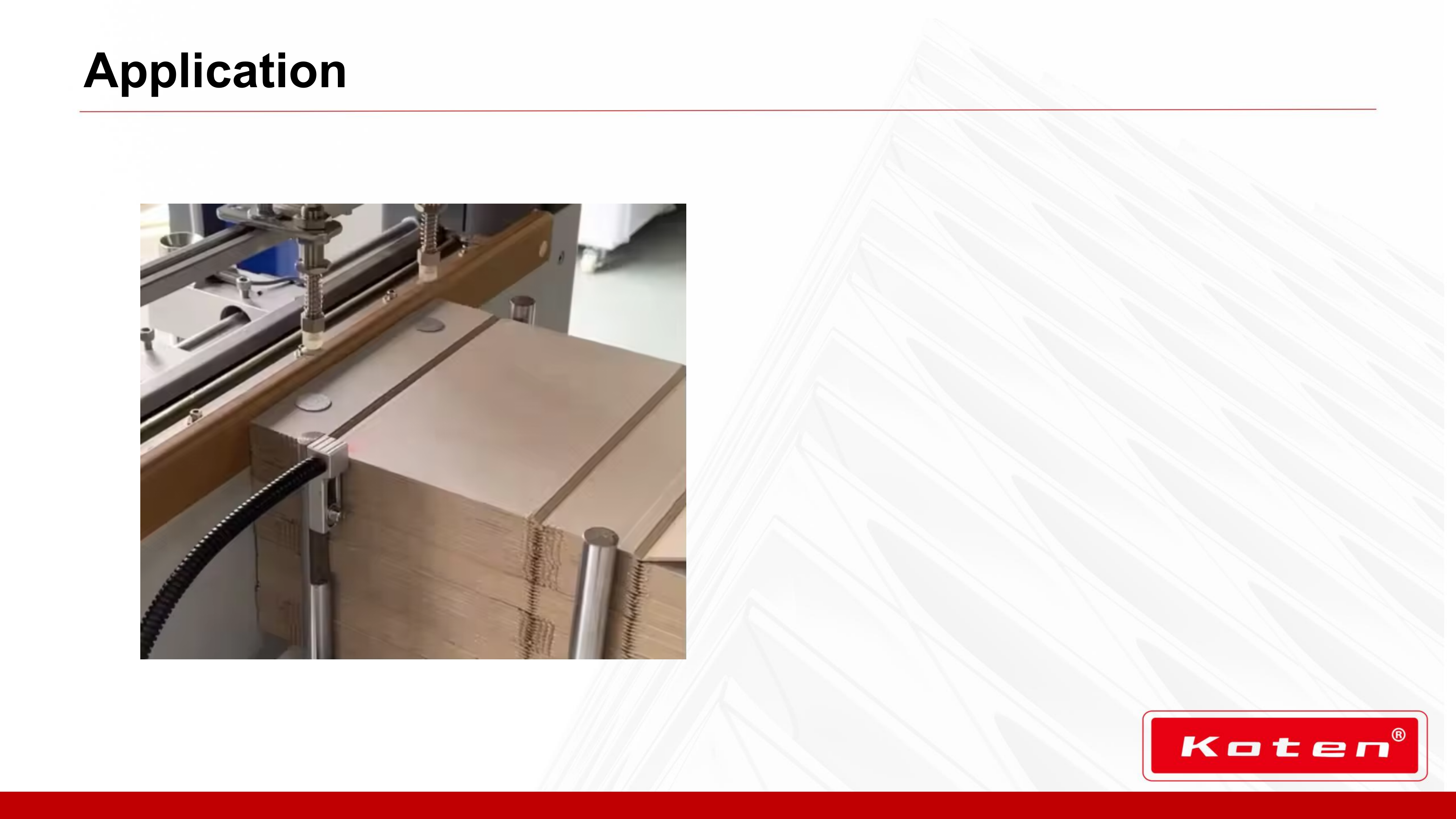

The Semi-Automatic Iron Sheet and Magnet Dual-Purpose Machine QH-TP600 is primarily used for attaching iron sheets and magnets to packaging products such as gift boxes, book cases,and cover shells. This equipment can automatically feed round iron sheets into the mold through a vibratory feeder, saving labor costs associated with manual loading of iron sheets. It can also be used to attach magnets, making it a versatile two-in-one machine.The device is controlled by a PLC system, offering high speed, stable performance, and precise positioning. It is an ideal solution for producing high- end gift boxes.

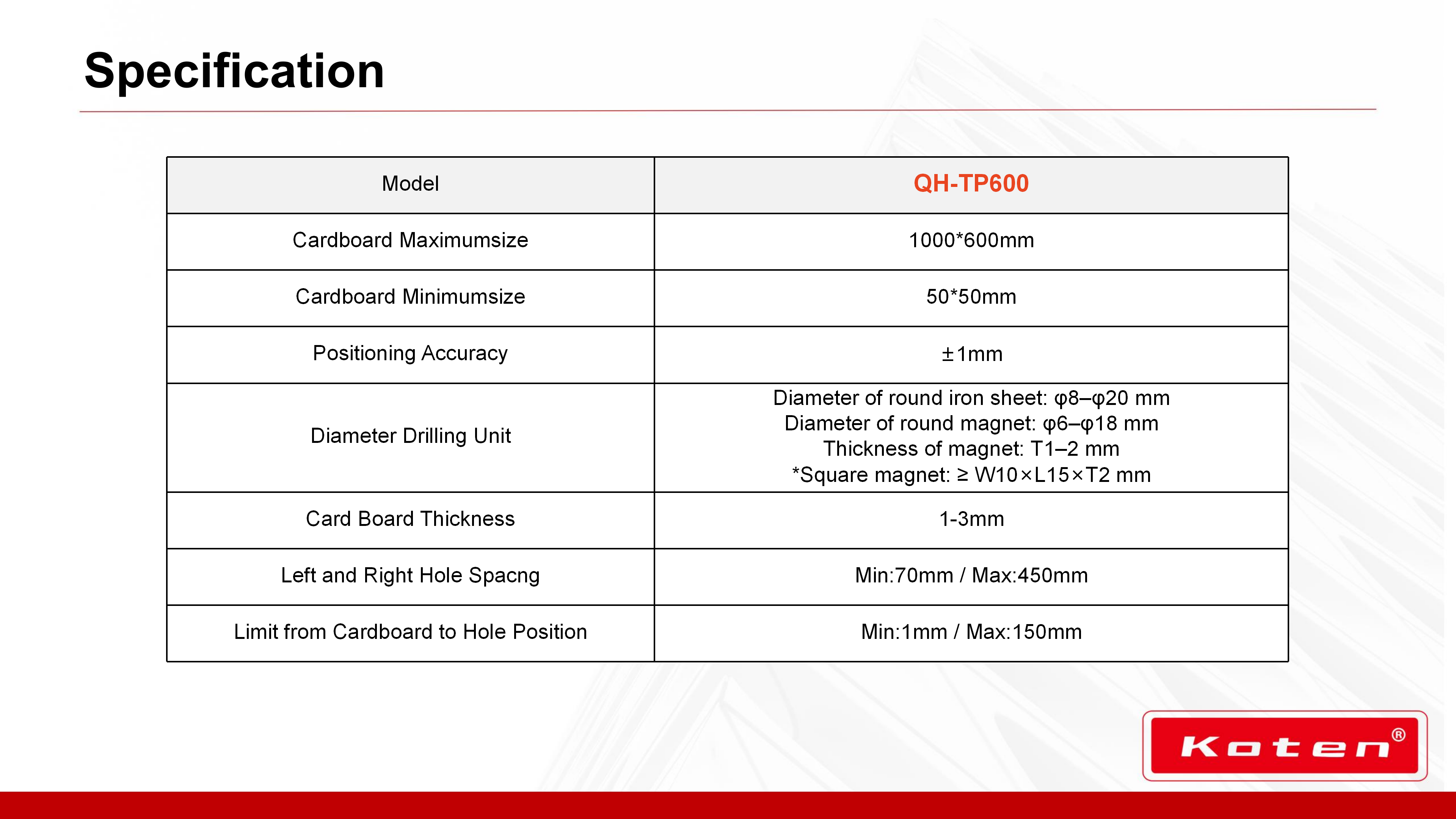

Model | QH-TP600 |
Cardboard Maximumsize | 1000X600 mm |
Cardboard Minimumsize | 50X50 mm |
Positioning Accuracy | ±1 mm |
Diameter Drilling Unit | Diameter of round iron sheet: φ8–φ20 mm Diameter of round magnet: φ6–φ18 mm Thickness of magnet: T1–2 mm *Square magnet: ≥ W10×L15×T2 mm |
Card Board Thickness | 1-3 mm |
Left and Right Hole Spacng | Min: 70 mm / Max: 450 mm |
Limit from Cardboard to Hole Position | Min: 1 mm / Max: 150 mm |

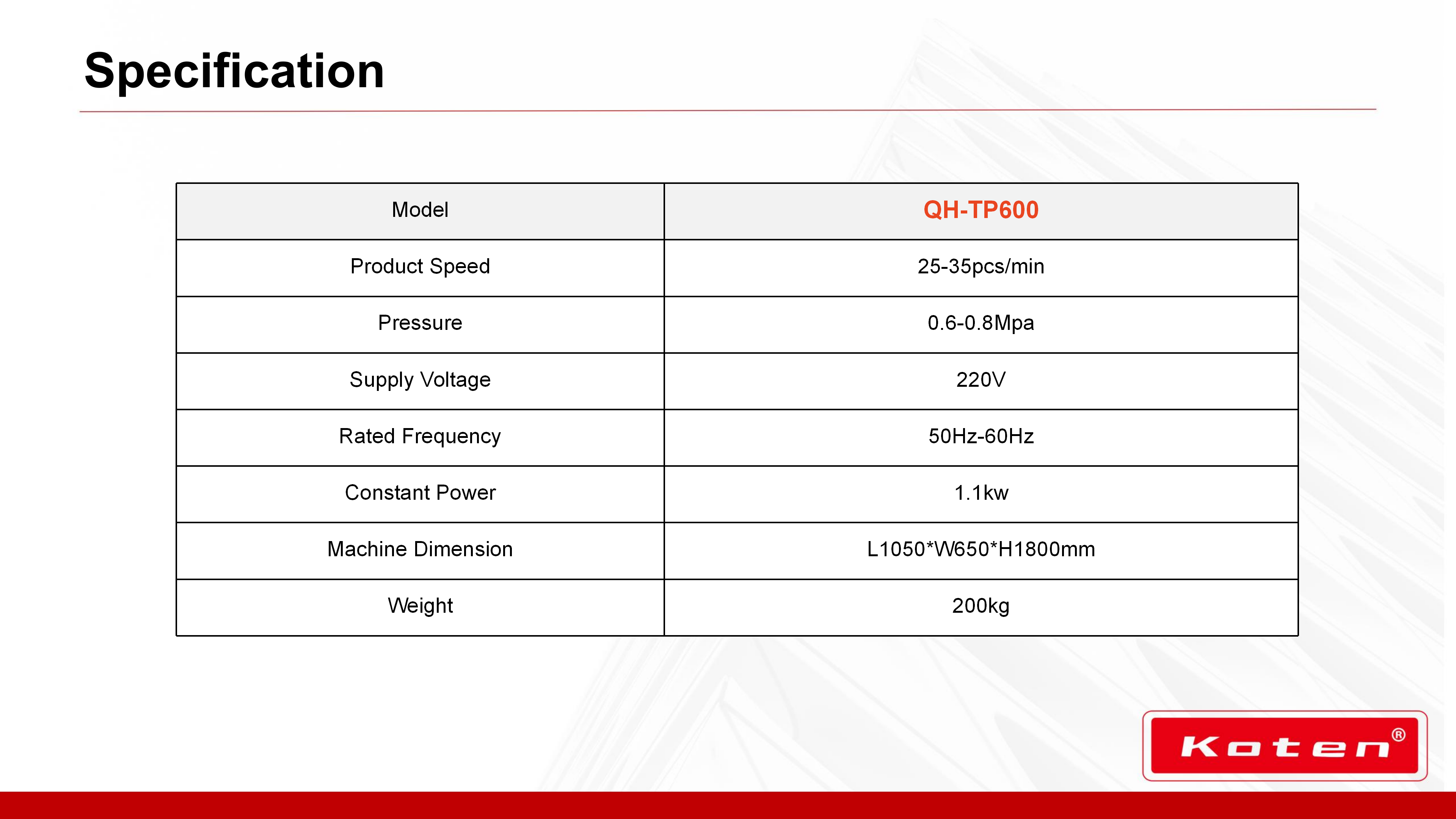

Model | QH-TP600 |
Product Speed | 25-35 pcs/min |
Pressure | 0.6-0.8 Mpa |
Supply Voltage | 220 V |
Rated Frequency | 50-60 Hz |
Constant Power | 1.1 KW |
Machine Dimension(LxWxH) | 1050x650x1800 mm |
Weight | 200 KG |
