QH-600B
KOTEN
QH-600B
Negotiable
1
T/T, L/C at sight.
10sets/month
By strong sea worthy package
after received 30% deposit.
China
2061
| Maximumsize: | |
|---|---|
| Minimumsize: | |
| Quantity: | |

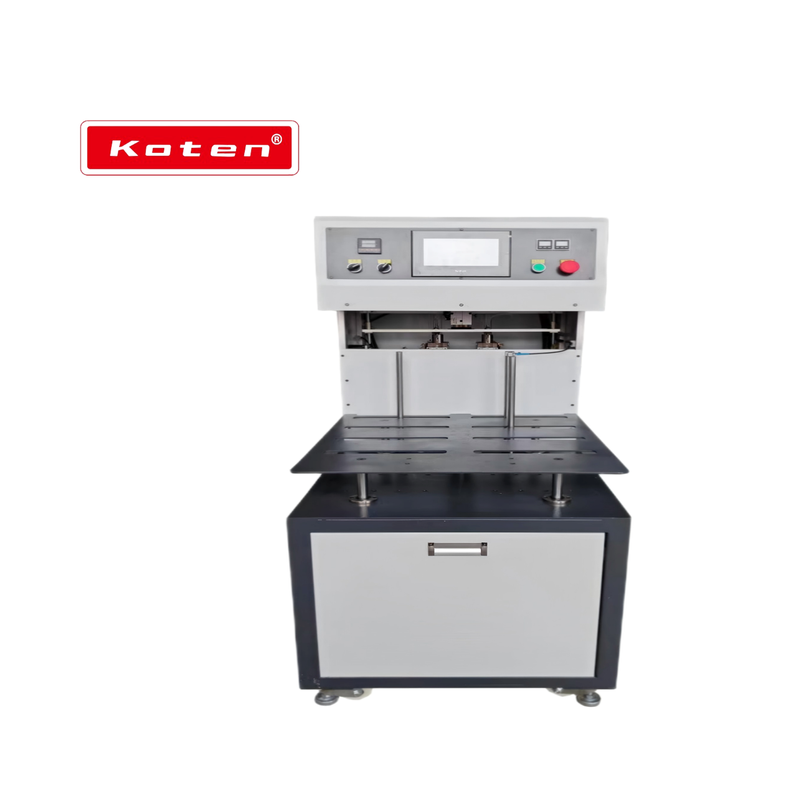

Semi-Automatic Magnet Mounting Machine

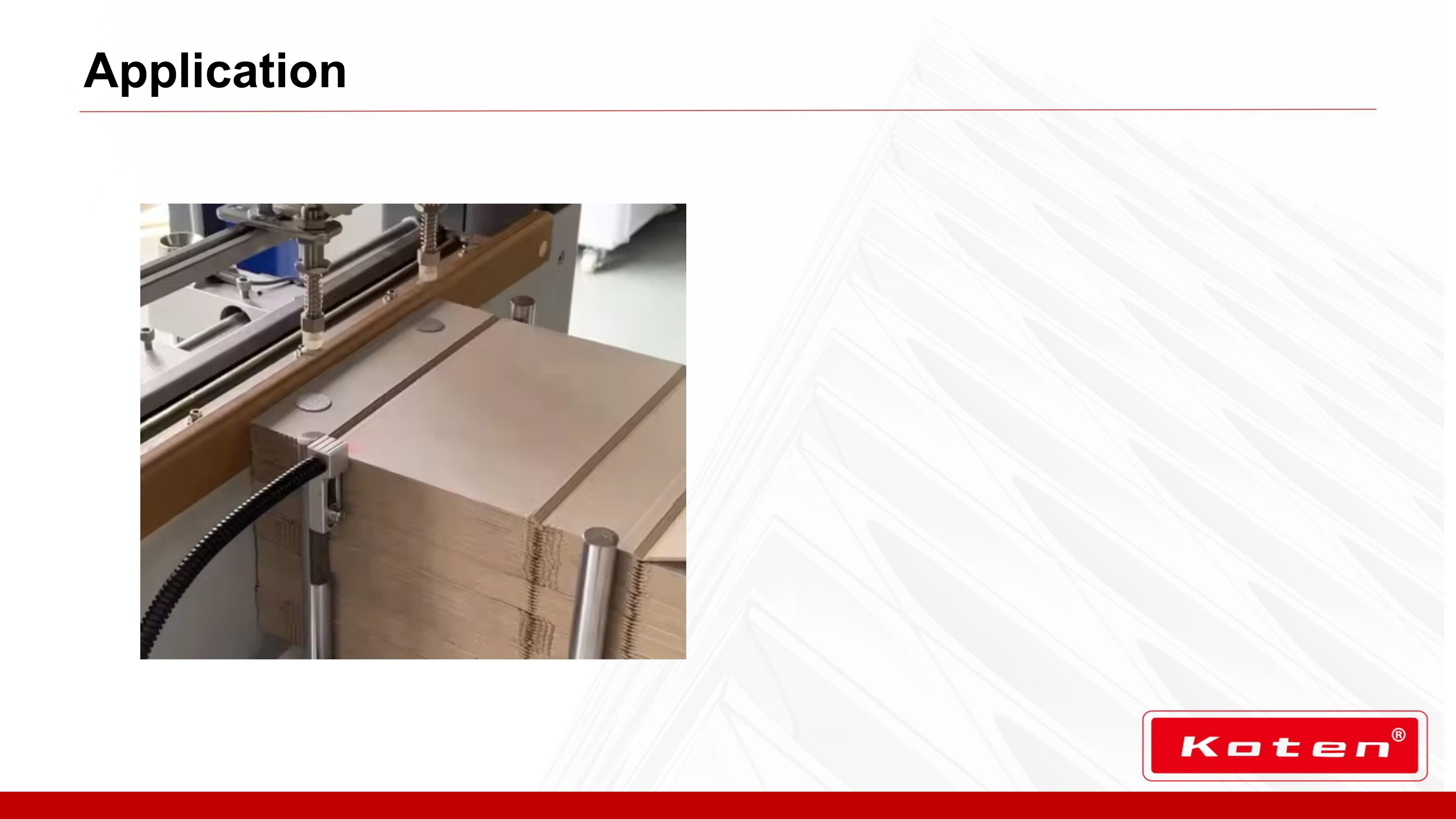

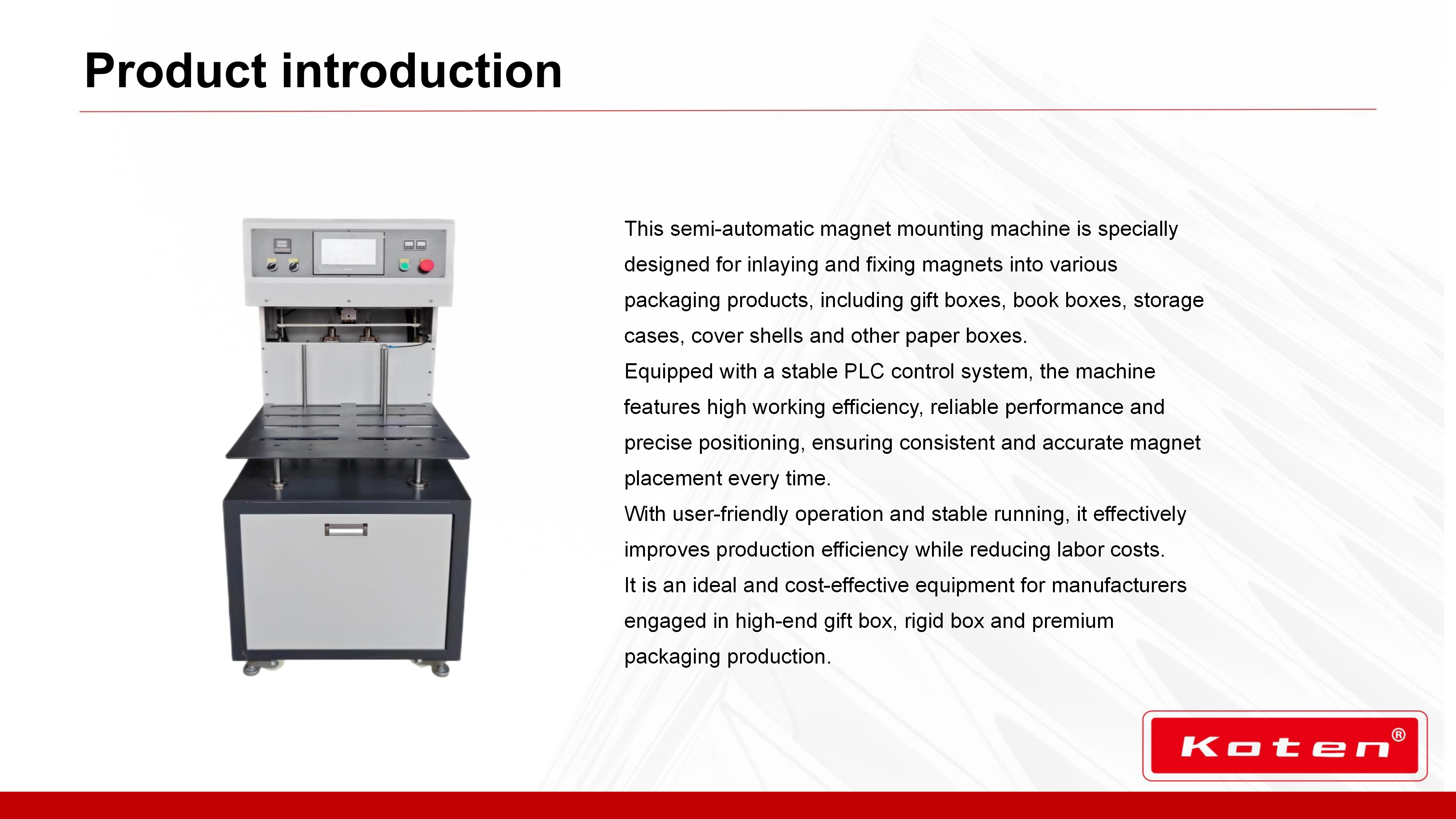

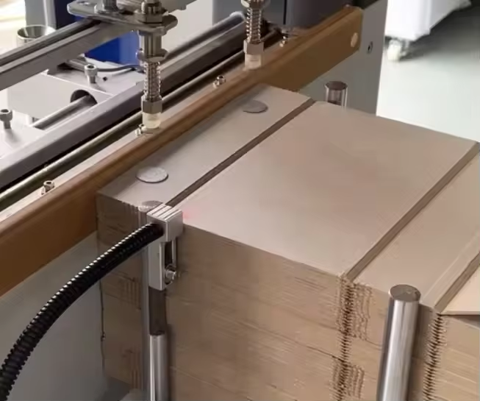

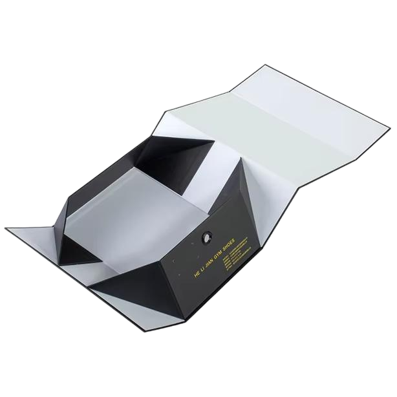

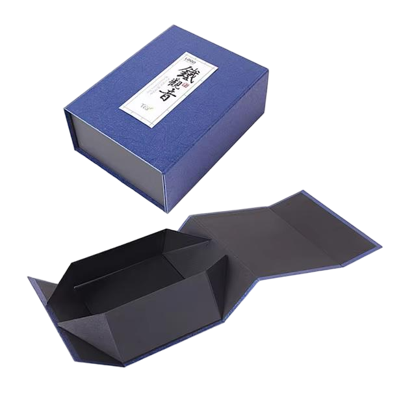

This semi-automatic magnet mounting machine is specially designed for inlaying and fixing magnets into various packaging products, including gift boxes, book boxes, storage cases, cover shells and other paper boxes.
Equipped with a stable PLC control system, the machine features high working efficiency, reliable performance and precise positioning, ensuring consistent and accurate magnet placement every time.
With user-friendly operation and stable running, it effectively improves production efficiency while reducing labor costs.
It is an ideal and cost-effective equipment for manufacturers engaged in high-end gift box, rigid box and premium packaging production.

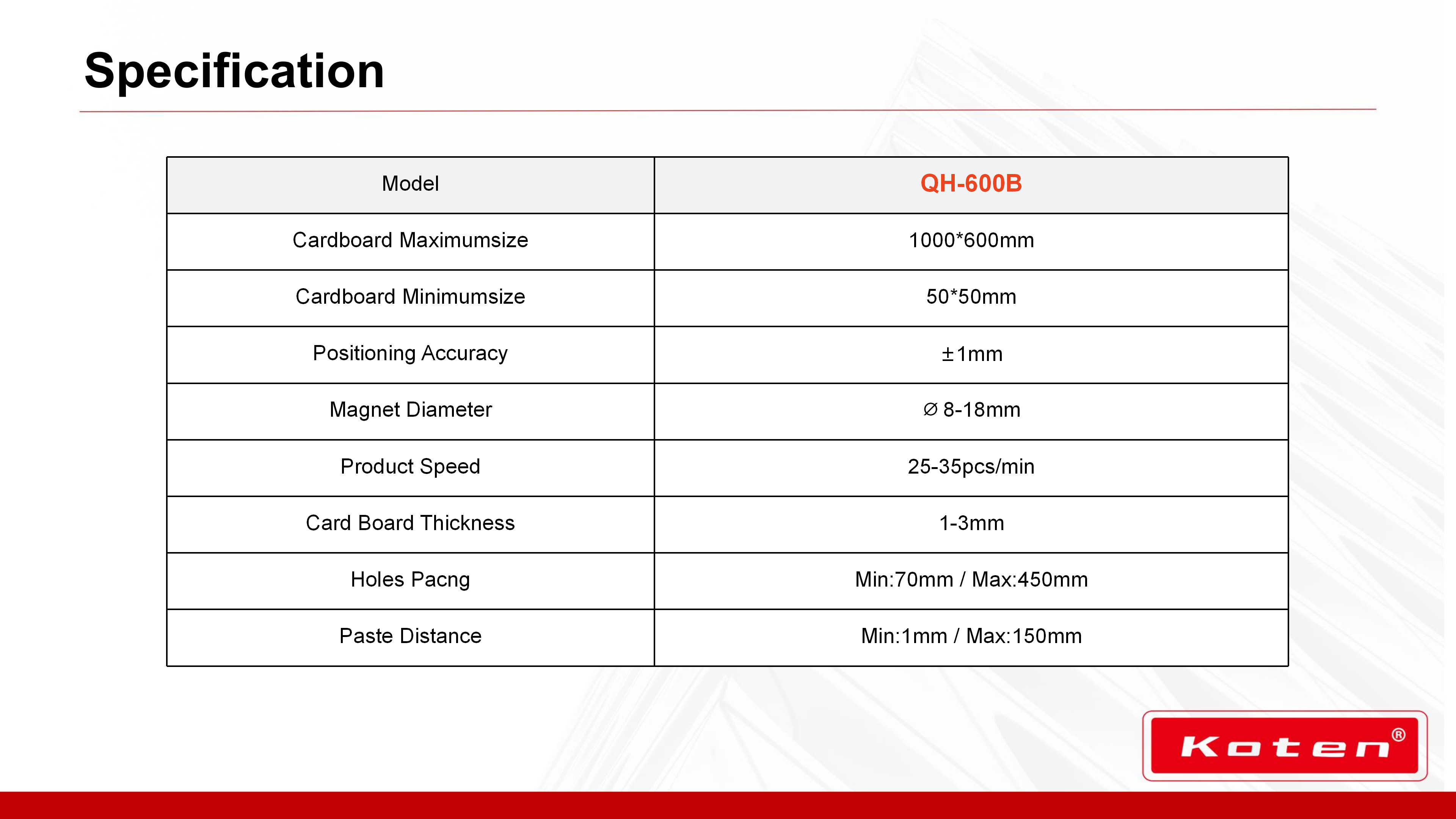

Model | QH-600B |
Cardboard Maximumsize | 1000*600mm |
Cardboard Minimumsize | 50*50mm |
Positioning Accuracy | ±1mm |
Magnet Diameter | ⌀8-18mm |
Product Speed | 25-35pcs/min |
Card Board Thickness | 1-3mm |
Holes Pacng | Min:70mm / Max:450mm |
Paste Distance | Min:1mm / Max:150mm |

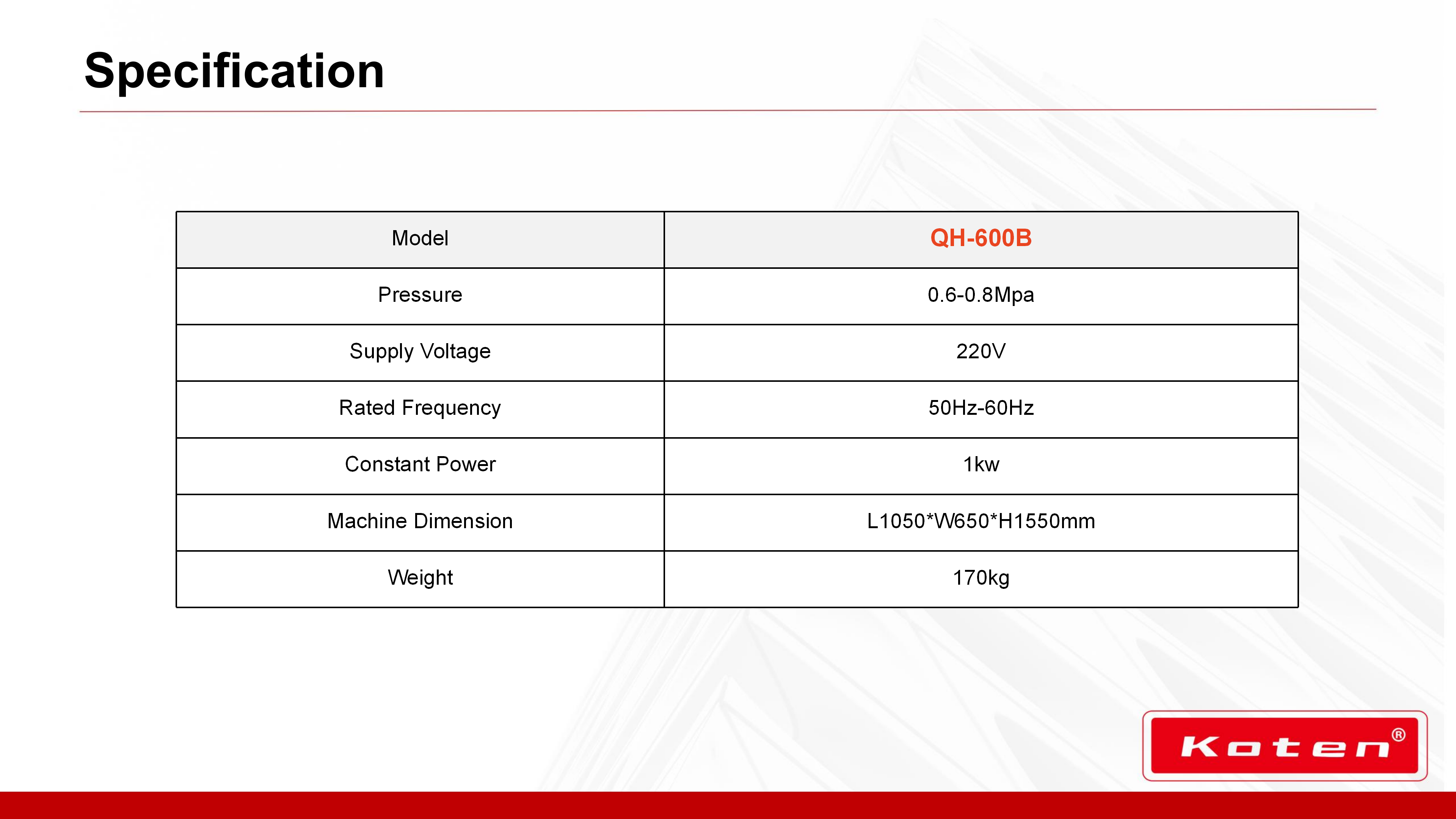

Model | QH-600B |
Pressure | 0.6-0.8Mpa |
Supply Voltage | 220V |
Rated Frequency | 50Hz-60Hz |
Constant Power | 1kw |
Machine Dimension | L1050*W650*H1550mm |
Weight | 170kg |
