LQD-380
KOTEN
LQD-380
Negotiable
1
T/T, L/C at sight.
10sets/month
By strong seaworthy wooden cases.
after received 30% deposit.
China
7381
| Quantity: | |
|---|---|

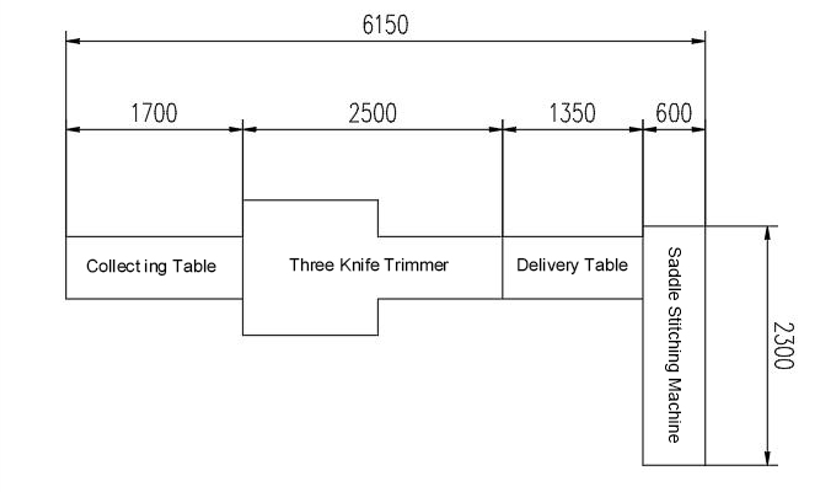

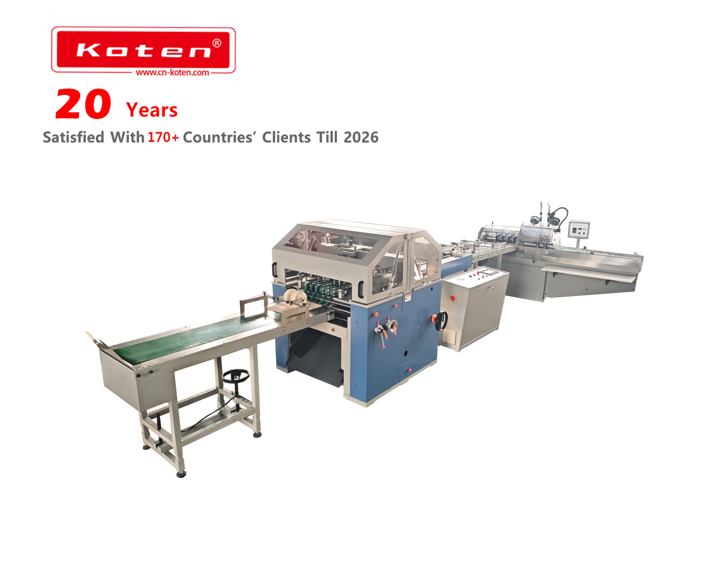

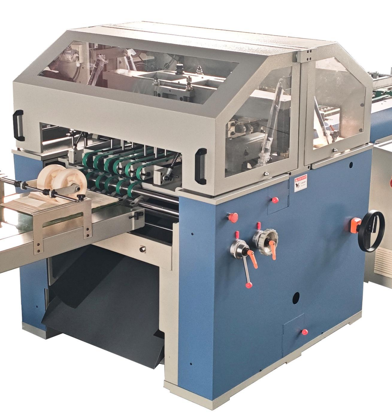

Semi-Automatic Saddle Stitching Machine with Three Knife Trimmer

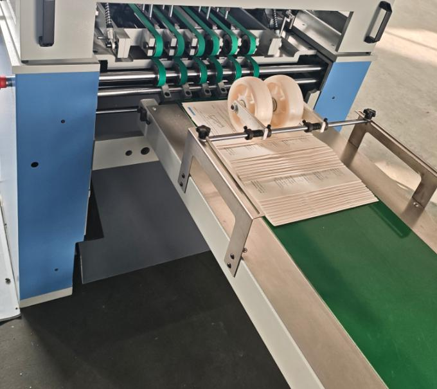

This machine is a semi-automatic saddle stitching and trimming line.After manual sheet gathering, the machine automatically feeds book signatures, performs stitching, trimming, counting, and sorted stack collection.Equipped with high-precision sensors, frequency converters and PLC control system, its main drive motor adopts Siemens variable frequency speed regulating motor.It features stable signature feeding, zero missed stitching, large trimming range, superior trimming quality, stable performance and easy operation.The machine is also capable of processing double-up signatures for stitching and trimming, which greatly improves production efficiency.
Model | LQD380 |
Max finished book size | 440×300 mm |
Min finished book size | 185×130 mm |
Max size for double-up copies | 217×300 mm |
Min size for double-up copies | 135×100 mm |
Maximum finished thickness | 8 mm |
Total machine power | 5 KW |
Max mechanical speed | 3600 copies/hour |
