AEM-1300Y
Koten
AEM-1300Y
Negotiate
1set
T/T,L/C.
30sets/month

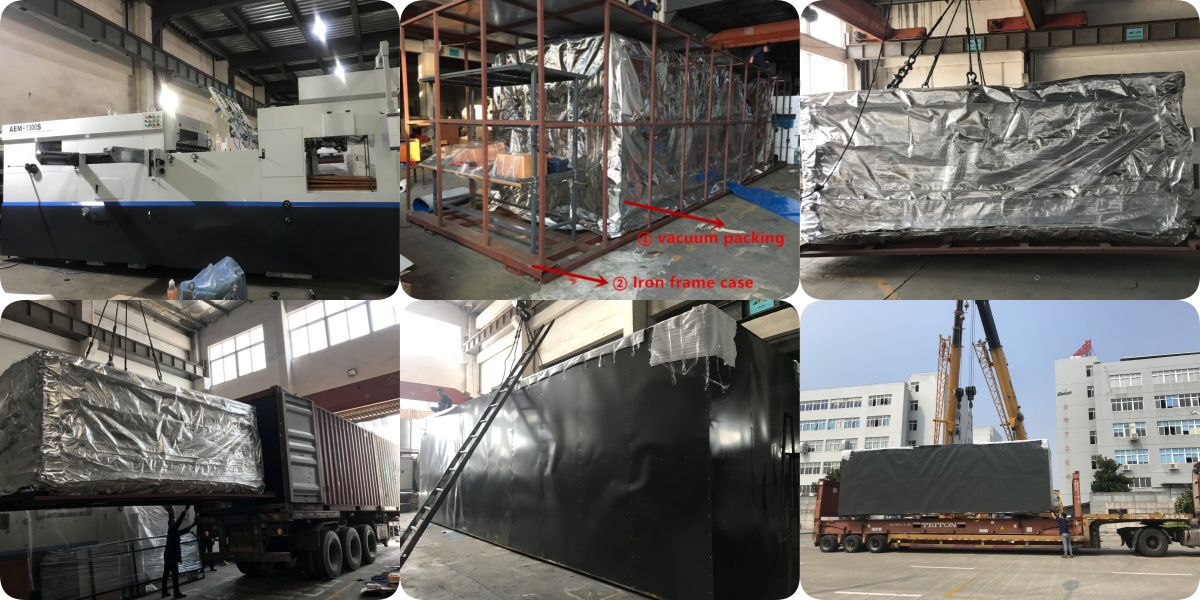

By strong seaworthy wooden cases.
Within 60 days after get the deposit.
China
4284
Availability: | |
---|---|
Quantity: | |
★ Complete design, accurate installation, high stability, high security, low noise.
★ Pre stacking device can shorten the assisting time to improve the efficiency.
★ Pneumatic auxiliary flip the aluminum alloy paper frame, help reduce the labor intensity.
★ The pressure bearing part is made of special process treated high strength ductile iron. It has good rigidity and high strength.
★ Worm and worm gear are made of super wear-resisting material, low noise and high durability.
★ The crankshaft is made of Ni-Cr-Mo alloy with special heat treatment process. It has high cutting pressure and high strength.
★ High precision interval mechanism, high cutting precision, running steadily .
★ The gripper bars are made of hardening treated high strength Ti-Al alloy, it is light and durable.
★ Imported gripper chain was pre-stretched to ensure the precision and durability.
★ Double protection for torque force controller and main chain protection switch can avoid damaging the movement parts.
★ Pneumatic fast lock device can make installation and uninstallation faster and safer.
★ An easy setting counting monitor in delivery section.
★ User can set a random number on the separation counter to insert a separate tag.
★ Delivery optoelectronic sensor coordinate with the delivery device, make the stack neat, when the stack is full, the alarm will turn on.
★ Electrical control module, imported electrical components, ensure the precision and reliability.
★ Touch screen man-machine interface, real-time monitor the running situation, makes machine adjustment, trouble shooting more convenient.
★ Cycling cooling lubrication system, ensure the movement parts get adequately lubricated to ensure the durability.
★ Automatic lubricating oil supply system ensures the movement parts get adequately lubricated to ensure the durability.

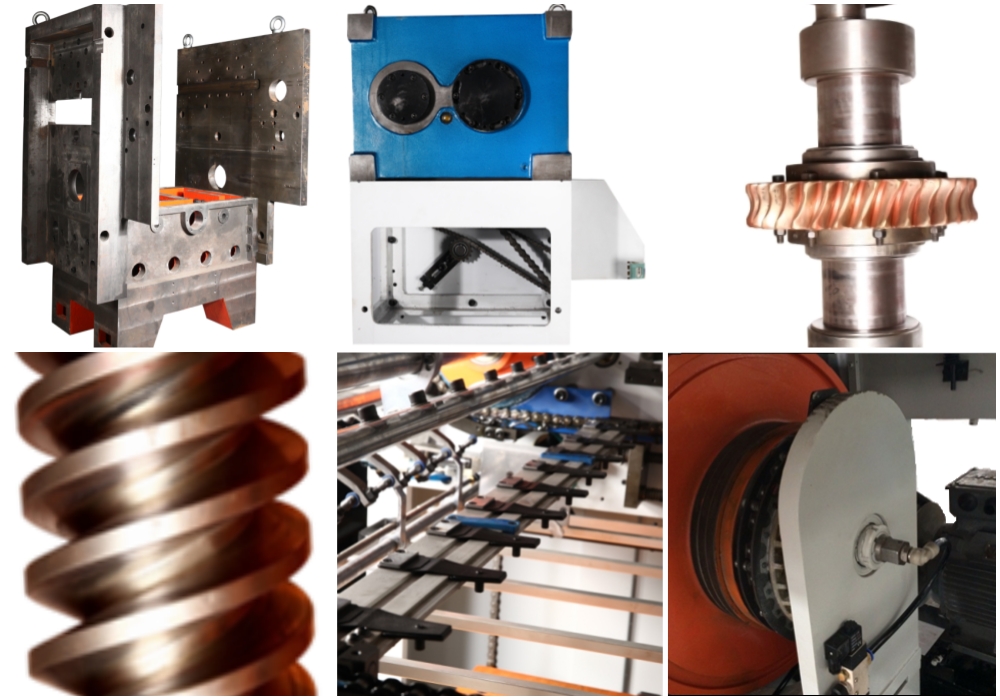

Host machine section
★Pressure-bearing part is made of high ductile iron QT500, high strength, never deform.
★Alloy crankshaft with special process treatment.
★Wear resisting worm, worm gear.
★Convenient die flipping device.
★Cycling lubrication oil supply system with high pressure oil pump from Taiwan
★High precision interval mechanism.
★Pneumatic brake clutch device from Italy
★Japanese SMC rotary joint.
★Import gripper bar chain.
★Pneumatic die locking device.
★High hardness, strength Ti-Al alloy gripper.
★Precise pressure adjust device.
★PLC and man-machine interface from Taiwan.

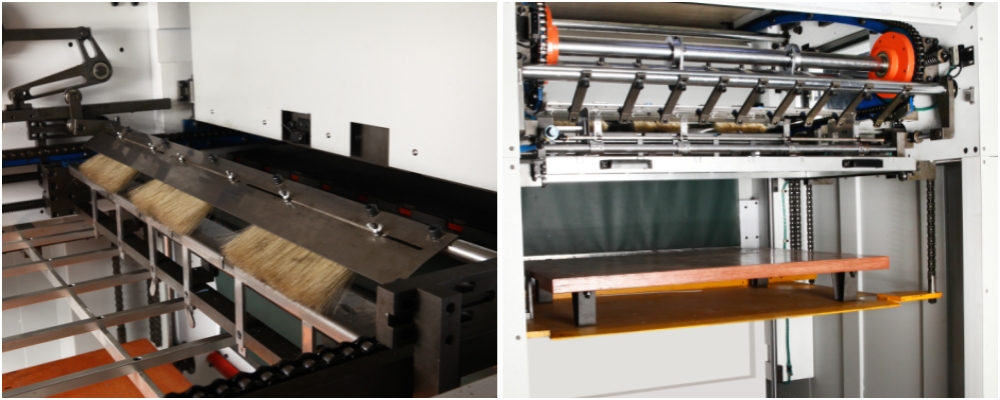

Delivery section
★Automatic arrange device, 2 blowing devices ensure all the paper could be well collected whether thin or thick.
★Delivery section with control panel, more human-friendly.
★Optoelectronic sensor ensure better delivery.
★Automatic delivery board control system.
★Manual delivery device
★Main chain protection device
★Rolling back preventing device
Heating plate for plastic sheet(OPTIONAL)
For die cutting the plastic sheet, like PVC, PP, PET sheet
1.Separate setting temperature for independent heating zones, thermostatic control.
2.Heating plate is made by heat-resisting and high strength casting iron RTCr0.8.
Stripper Section(OPTIONAL)
1.Stripper is composed of three frames (upper, middle, and bottom frame) which can be pulled out for installation of pins.
2.Stripper bar with pins or male-female plate for waste stripping.
Max paper size: | 1320 x 980 mm |
Min paper size: | 320 x 470 mm |
Max cutting size: | 1300 x 970 mm |
Die frame inner size | 1330 x 992 mm |
Cutting plate size: | 1320 x 982 mm |
Cutting precision: | ≤±0.3 mm |
Max cutting pressure: | 250 N/cmPP2 |
Max cutting speed: | 5000 s/h |
Pre-stacking height: | 1400 mm |
Delivery stack height: | 1200 mm |
Application: | Cardboard: 0.25~2 mm |
Corrugated paper: <8 mm | |
Main motor power: | 11 KW |
Total power: | 13.5 KW |
Dimension: | 3300(+2800)x2350(+1900)x2250 mm |
Weight: | 15Ton |
No | Name | Brand | Origin | No | Name | Brand | Origin |
1 | Shell, main structure | QT500-7 ductile iron | China | 16 | bearing | NSK | Japan |
2 | Mold pressing plate | 75Cr1alloy steel | China | 17 | Linear guide rail | HIWIN | Taiwan,China |
3 | Worm, Worm gear | XINGTANG | China | 18 | Fastener | GEM YEAR | Taiwan,China |
4 | Crankshaft material | Ni-Cr-Mo alloy | China | 19 | Inverter | Delta | Taiwan,China |
5 | Gripper | Aluminum alloy | China | 20 | Man-machine interface | TAISEE | Taiwan,China |
6 | Gripper needle | Imported manganese steel | China | 21 | Sensor | Panasonic | Japan |
7 | Cam indexing unit | HANDEX | Taiwan,China | 22 | PLC controller | FATEK | Taiwan,China |
8 | Main transmission chain | TYC | Taiwan,China | 23 | Encoder | KUBLER | Germany |
9 | Secondary chain | KMC | Taiwan,China | 24 | Oil pressure, pressure switch | AIRTAC | Taiwan,China |
10 | Rotary joint | SMC | Japan | 25 | Proximity switch | FOTEK | Taiwan,China |
11 | Pneumatic solenoid valve | AIRTAC | Taiwan,China | 26 | Relay | SCHNEIDER | France |
12 | Air volume regulator | AIRTAC | Taiwan,China | 27 | Optoelectronic switch | Panasonic | Japan |
13 | Main motor | TECO | Taiwan,China | 28 | Button | SCHNEIDER | France |
14 | Delivery lift motor | DUNGLEE | Taiwan,China | 29 | AC contactor | SCHNEIDER | France |
15 | Vacuum pump | BECHER | Germany | 30 | Circuit breaker | SCHNEIDER | France |
Note: According to the needs of product optimization configuration, the supplier/origin of some components will be adjusted appropriately without prior notice. The seller guarantees that the parts are of the same grade before and after the adjustment, and will not have a negative impact on the goods under the contract. Thank you!
★ Complete design, accurate installation, high stability, high security, low noise.
★ Pre stacking device can shorten the assisting time to improve the efficiency.
★ Pneumatic auxiliary flip the aluminum alloy paper frame, help reduce the labor intensity.
★ The pressure bearing part is made of special process treated high strength ductile iron. It has good rigidity and high strength.
★ Worm and worm gear are made of super wear-resisting material, low noise and high durability.
★ The crankshaft is made of Ni-Cr-Mo alloy with special heat treatment process. It has high cutting pressure and high strength.
★ High precision interval mechanism, high cutting precision, running steadily .
★ The gripper bars are made of hardening treated high strength Ti-Al alloy, it is light and durable.
★ Imported gripper chain was pre-stretched to ensure the precision and durability.
★ Double protection for torque force controller and main chain protection switch can avoid damaging the movement parts.
★ Pneumatic fast lock device can make installation and uninstallation faster and safer.
★ An easy setting counting monitor in delivery section.
★ User can set a random number on the separation counter to insert a separate tag.
★ Delivery optoelectronic sensor coordinate with the delivery device, make the stack neat, when the stack is full, the alarm will turn on.
★ Electrical control module, imported electrical components, ensure the precision and reliability.
★ Touch screen man-machine interface, real-time monitor the running situation, makes machine adjustment, trouble shooting more convenient.
★ Cycling cooling lubrication system, ensure the movement parts get adequately lubricated to ensure the durability.
★ Automatic lubricating oil supply system ensures the movement parts get adequately lubricated to ensure the durability.
Host machine section
★Pressure-bearing part is made of high ductile iron QT500, high strength, never deform.
★Alloy crankshaft with special process treatment.
★Wear resisting worm, worm gear.
★Convenient die flipping device.
★Cycling lubrication oil supply system with high pressure oil pump from Taiwan
★High precision interval mechanism.
★Pneumatic brake clutch device from Italy
★Japanese SMC rotary joint.
★Import gripper bar chain.
★Pneumatic die locking device.
★High hardness, strength Ti-Al alloy gripper.
★Precise pressure adjust device.
★PLC and man-machine interface from Taiwan.
Delivery section
★Automatic arrange device, 2 blowing devices ensure all the paper could be well collected whether thin or thick.
★Delivery section with control panel, more human-friendly.
★Optoelectronic sensor ensure better delivery.
★Automatic delivery board control system.
★Manual delivery device
★Main chain protection device
★Rolling back preventing device
Heating plate for plastic sheet(OPTIONAL)
For die cutting the plastic sheet, like PVC, PP, PET sheet
1.Separate setting temperature for independent heating zones, thermostatic control.
2.Heating plate is made by heat-resisting and high strength casting iron RTCr0.8.
Stripper Section(OPTIONAL)
1.Stripper is composed of three frames (upper, middle, and bottom frame) which can be pulled out for installation of pins.
2.Stripper bar with pins or male-female plate for waste stripping.
Max paper size: | 1320 x 980 mm |
Min paper size: | 320 x 470 mm |
Max cutting size: | 1300 x 970 mm |
Die frame inner size | 1330 x 992 mm |
Cutting plate size: | 1320 x 982 mm |
Cutting precision: | ≤±0.3 mm |
Max cutting pressure: | 250 N/cmPP2 |
Max cutting speed: | 5000 s/h |
Pre-stacking height: | 1400 mm |
Delivery stack height: | 1200 mm |
Application: | Cardboard: 0.25~2 mm |
Corrugated paper: <8 mm | |
Main motor power: | 11 KW |
Total power: | 13.5 KW |
Dimension: | 3300(+2800)x2350(+1900)x2250 mm |
Weight: | 15Ton |
No | Name | Brand | Origin | No | Name | Brand | Origin |
1 | Shell, main structure | QT500-7 ductile iron | China | 16 | bearing | NSK | Japan |
2 | Mold pressing plate | 75Cr1alloy steel | China | 17 | Linear guide rail | HIWIN | Taiwan,China |
3 | Worm, Worm gear | XINGTANG | China | 18 | Fastener | GEM YEAR | Taiwan,China |
4 | Crankshaft material | Ni-Cr-Mo alloy | China | 19 | Inverter | Delta | Taiwan,China |
5 | Gripper | Aluminum alloy | China | 20 | Man-machine interface | TAISEE | Taiwan,China |
6 | Gripper needle | Imported manganese steel | China | 21 | Sensor | Panasonic | Japan |
7 | Cam indexing unit | HANDEX | Taiwan,China | 22 | PLC controller | FATEK | Taiwan,China |
8 | Main transmission chain | TYC | Taiwan,China | 23 | Encoder | KUBLER | Germany |
9 | Secondary chain | KMC | Taiwan,China | 24 | Oil pressure, pressure switch | AIRTAC | Taiwan,China |
10 | Rotary joint | SMC | Japan | 25 | Proximity switch | FOTEK | Taiwan,China |
11 | Pneumatic solenoid valve | AIRTAC | Taiwan,China | 26 | Relay | SCHNEIDER | France |
12 | Air volume regulator | AIRTAC | Taiwan,China | 27 | Optoelectronic switch | Panasonic | Japan |
13 | Main motor | TECO | Taiwan,China | 28 | Button | SCHNEIDER | France |
14 | Delivery lift motor | DUNGLEE | Taiwan,China | 29 | AC contactor | SCHNEIDER | France |
15 | Vacuum pump | BECHER | Germany | 30 | Circuit breaker | SCHNEIDER | France |
Note: According to the needs of product optimization configuration, the supplier/origin of some components will be adjusted appropriately without prior notice. The seller guarantees that the parts are of the same grade before and after the adjustment, and will not have a negative impact on the goods under the contract. Thank you!
