K21A
KOTEN
K21A
negotiate
1
T/T, L/C at sight.
10sets/month
By strong seaworthy packaging.
Within 30 days after get the deposit.
China
1680
| Quantity: | |
|---|---|

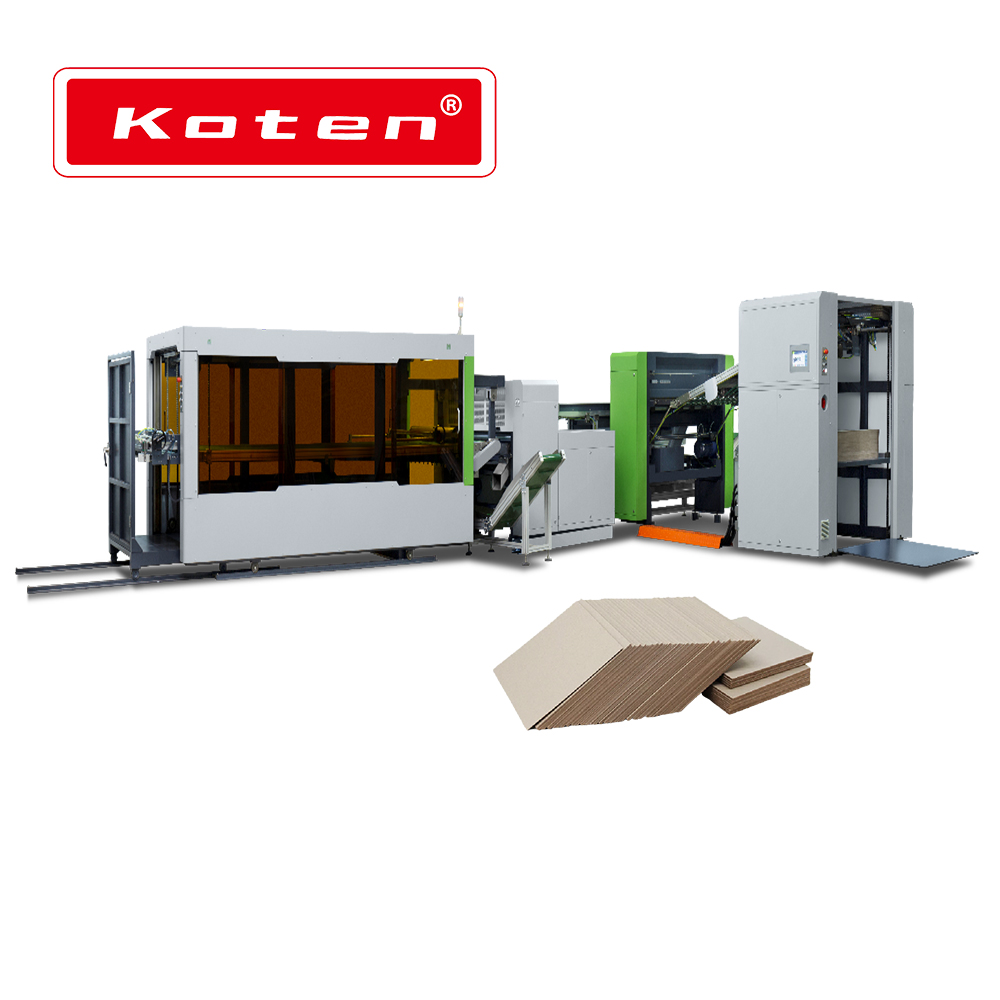

Board Slitting Machine K21A (Automatic)
Automatically complete vertical board cutting and horizontal board cutting, only one person is required to operate, which can reduce 3-5 persons, reduce the intermediate handling links, automatically discharge and concentrate transporting the scraps, and automatically complete the finished products stack.
• With digital rualer adjustment scale function, computer input size to improve accuracy.
• The whole tray of boards is fed automatically.
• The long-bar board is automatically conveyed to the horizontal cutting after the first cutting is completed;
• After the second cutting is completed, the finished products are stacked into the whole tray;
• The scraps are automatically discharged and concentrated to an outlet to convenient scraps disposal;
• Simple and user-friendly operation process to reduce prodection process.
• The automatic centralized oil supply device is used to timely and quantitatively lubricate every part.
• It adopted the PLC and HMI controller, which makes it more vivid and friendly in its operation.

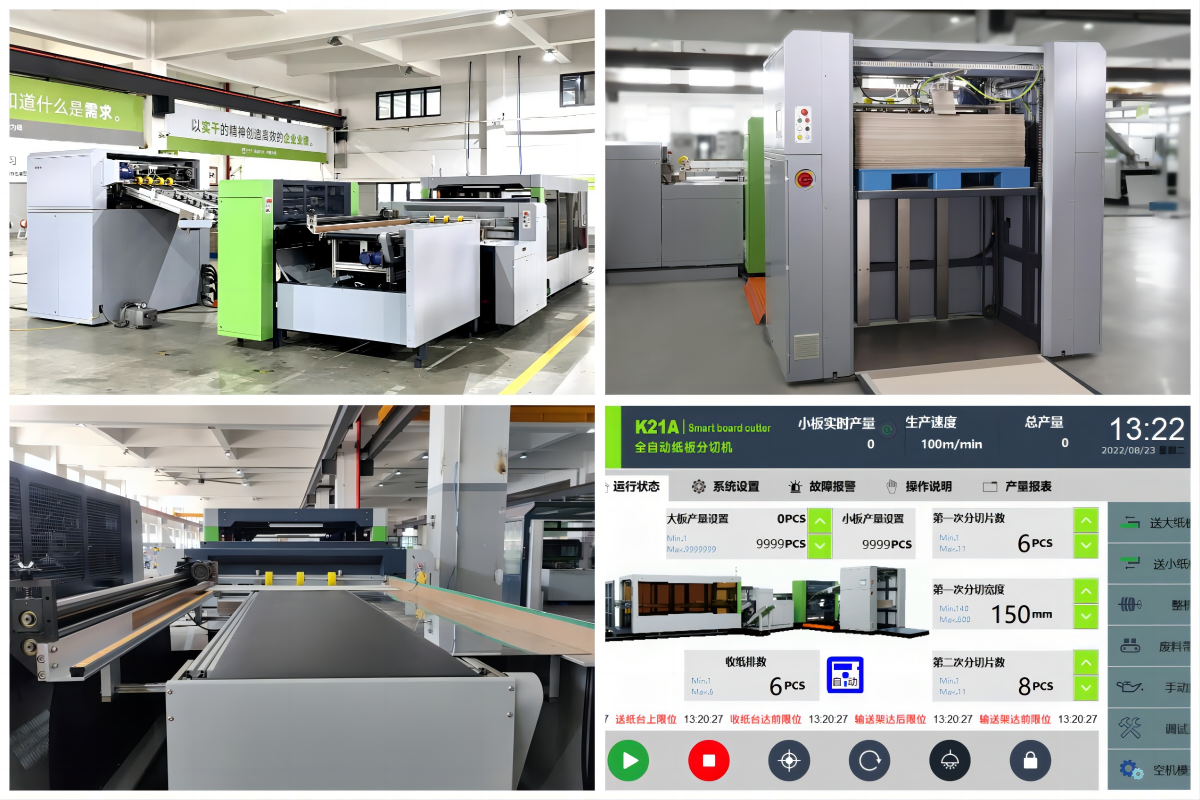

Machine Workflow

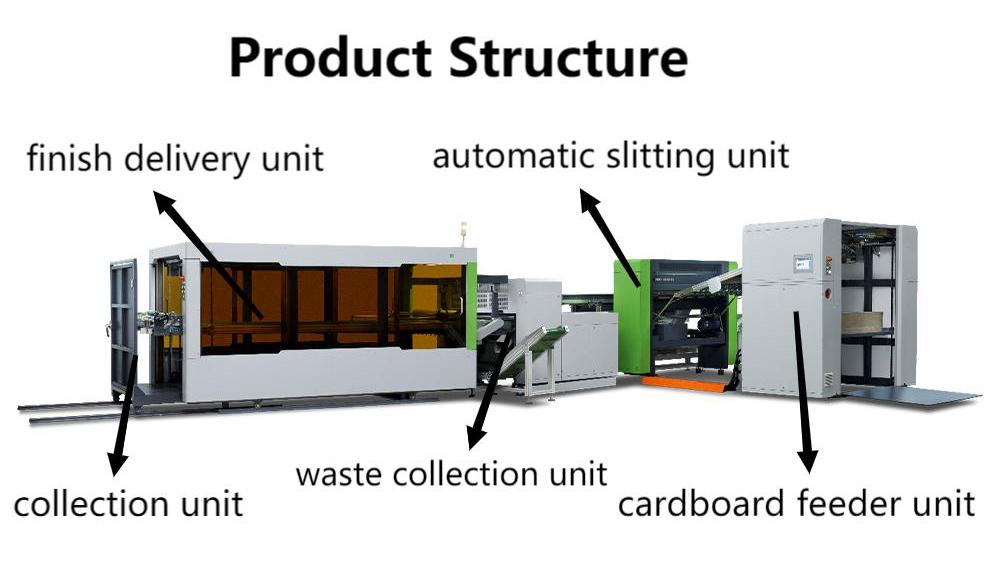

Machine Advantage
Product parameters
Model | K21A |
Original Cardboard Size | First Cutting: Min. 750*750mm, Max. 1350*1150mm |
Second Cutting: Min. 750*150mm, Max. 1150*450mm | |
Finished Size | Width: Min. 85mm, Max. 600mm |
Length: Min. 150mm, Max. 450mm | |
Board Thickness | 1-4mm |
Machine Speed （Capacity of the Board Feeder） | Max. 30sheets/min |
Machine Speed （Capacity of the Strip Feeder） | Max. 100m/min |
Accuracy | ±0.1mm |
Voltage | 380V / 50HZ / 3P |
Machine Dimensions (L*W*H) | 11000 × 6700 × 2200 mm |
| Note: Machine speed depends on size, material, etc. | |
Configuration
Configuratio | Origin | Brand Model |
| Switching power supply | Taiwa | Delta |
Relays | Japan | Omron |
| Speed reducing motor | Taiwan | TUNGLEE |
Low voltage apparatus | America | Eaton |
Photoelectric switch | Germany | SICK |
| Proximity switch | Germany | TURCK |
Vacuum pump | Japan | Orion |
Screws/guide rail | Taiwan | TBI |
Pneumatic cylinder | Taiwan | AirTAC |
Bearing | Germany | Igus |
Application
