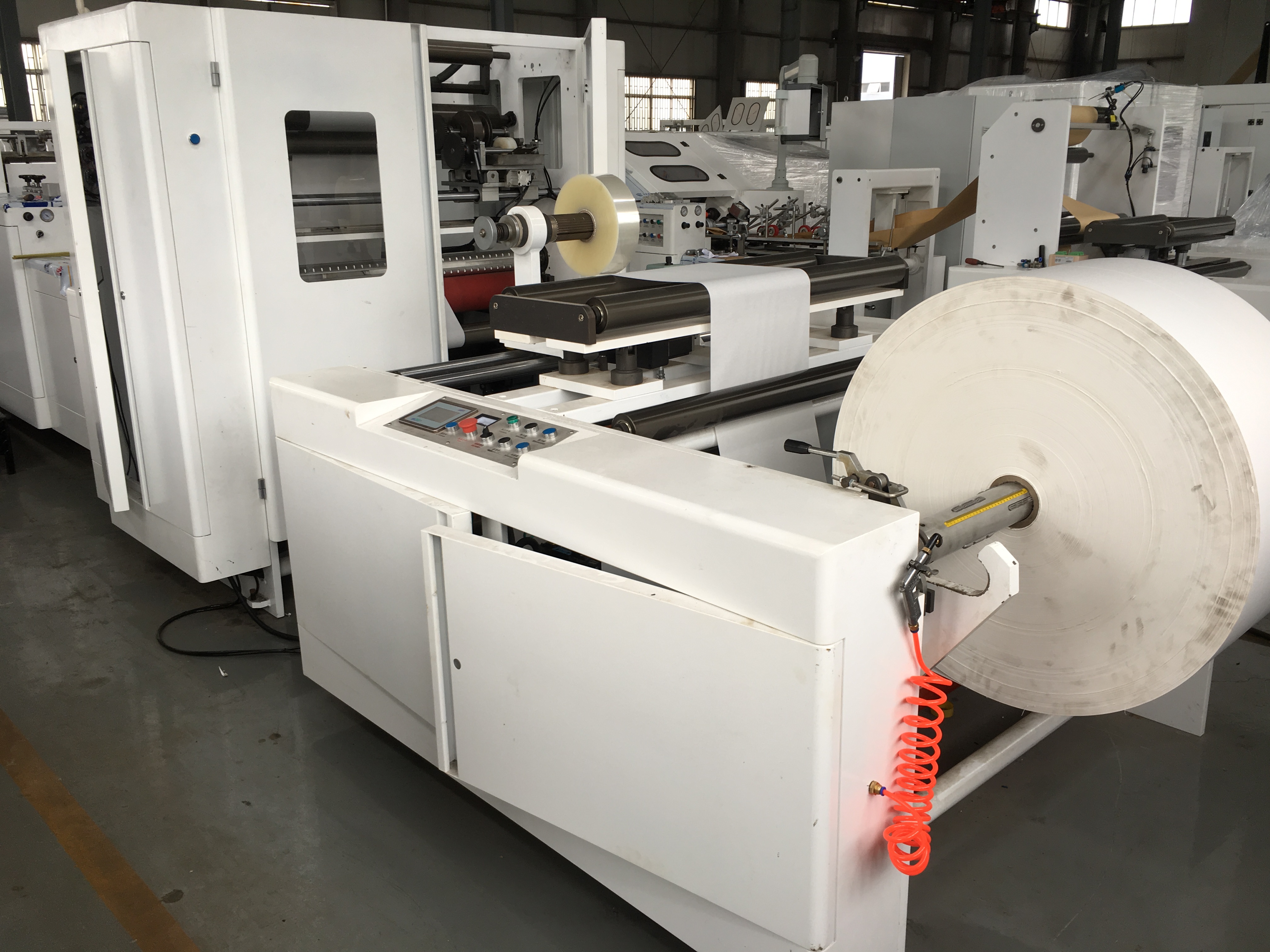

This machine is designed to manufacture square bottom paper bags from paper roll in blank or printed.
Side gluing, tube forming, cutting, bottom creasing, bottom gluing, bottom forming and final product out feed can be completed within one time by this machine. It is ideal equipment for making paper bag for foodstuff bag, shopping bag and so on. Controlled by PLC system, equipped with in-touch screen and servo motor for bag length control, this machine can produce different size paper bag.
Width of Paper: 600-1300mm
Bag width: 220-460 mm
Bag length: 150-510 mm
Bag bottom width: 60-180mm
Paper weight: 60-180G/M2
Max. Diameter of Paper Roll: 1200mm
Internal Diameter of Roll Core: 76mm
Max. Speed: 200PCS/min
Total Power: 15Kw
Weight of Machine approx: 11000 kg
Overall Dimension: L9000mm X W3500mm X H1800mm
1. Introduce PLC and In-touch screen human-machine interface centralized control system, with reliable performance, easy for operation and maintenance. English/Chinese language can be changed easily.
2. Shaft less hydraulic material loading system with chuck, hydraulic up/down system
3. Automatic constant tension control for unwinding, EPC web guider system, motor for material feeding with inverter
Wheel type gusset unit with motor driving.
4. Servo motors for main feeding and bag length control
Closed type automatic glue application and forming system
Paper impress, bottom folding, gluing and bag formation can be completed automatically.
5. Side lay working table, easy operation.
