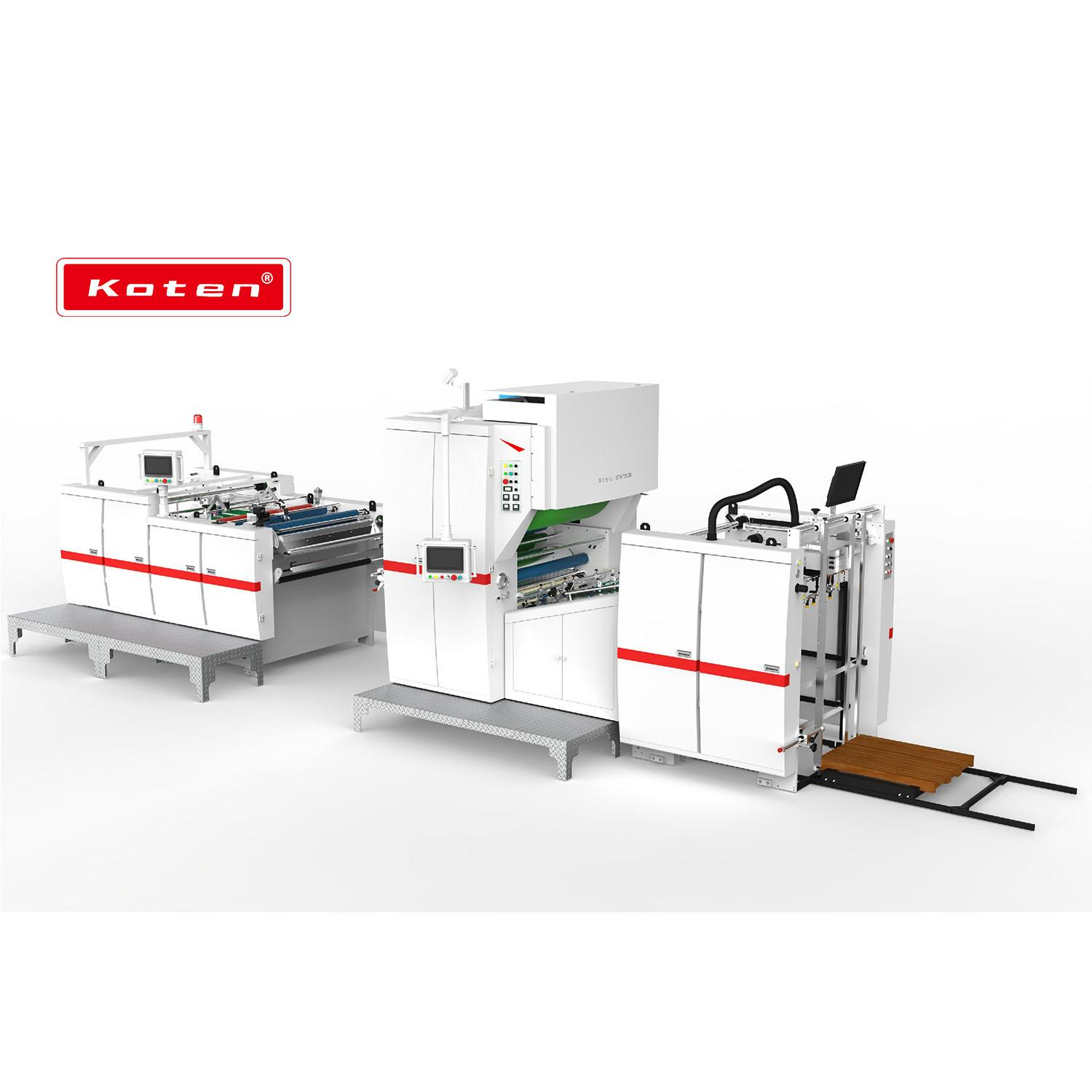

The Automatic Film Laminating Machine KT-1350A

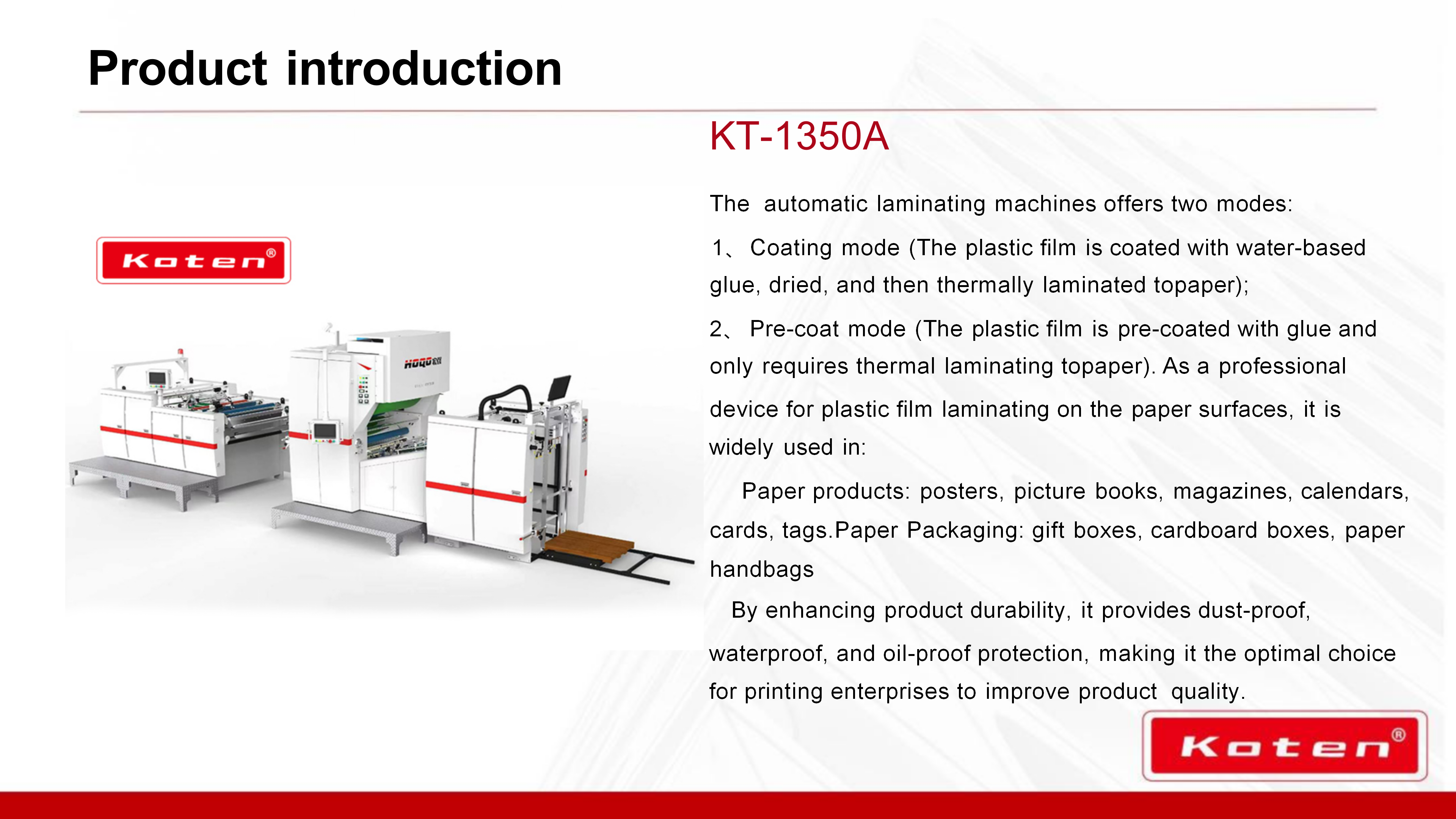

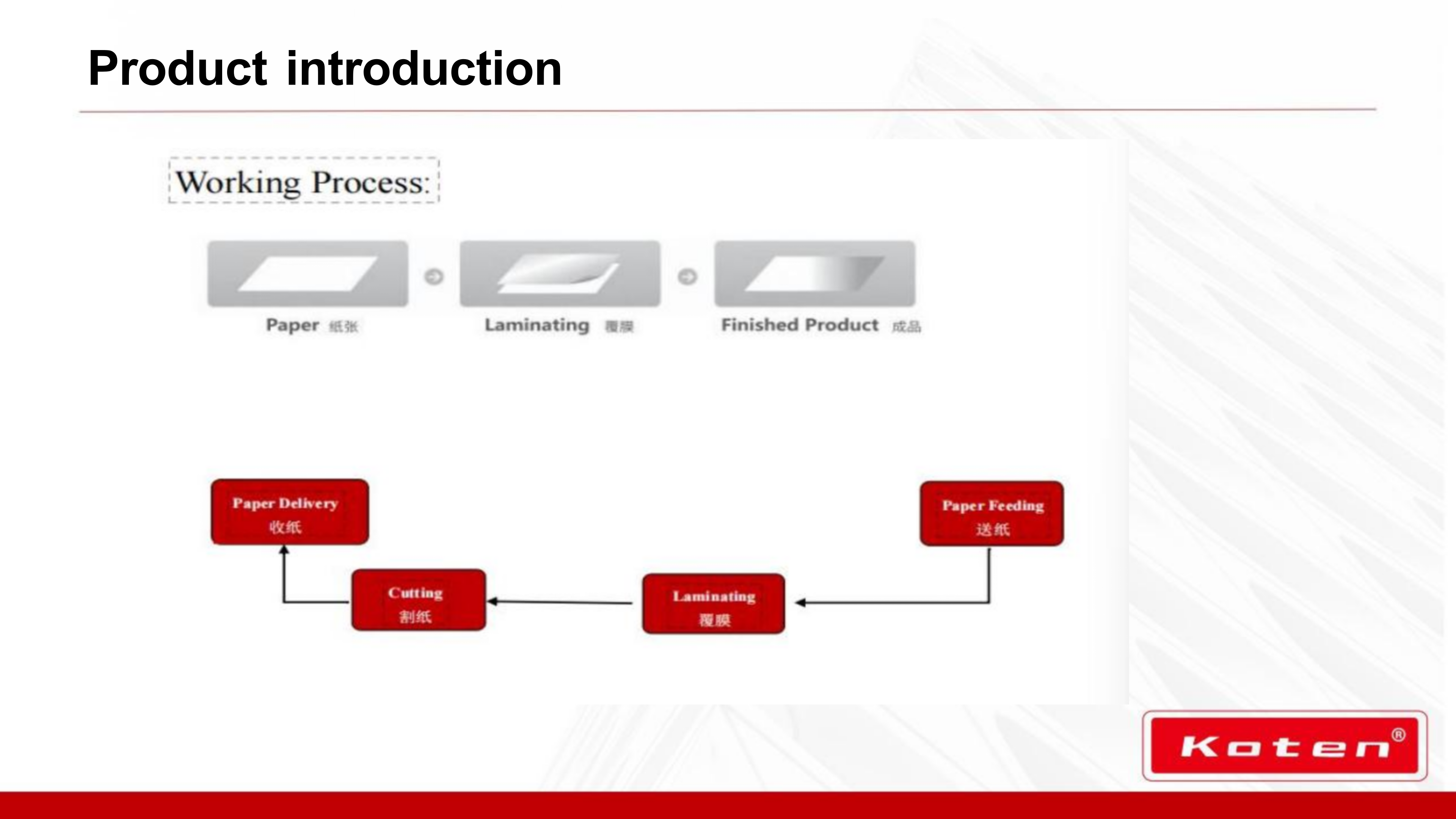

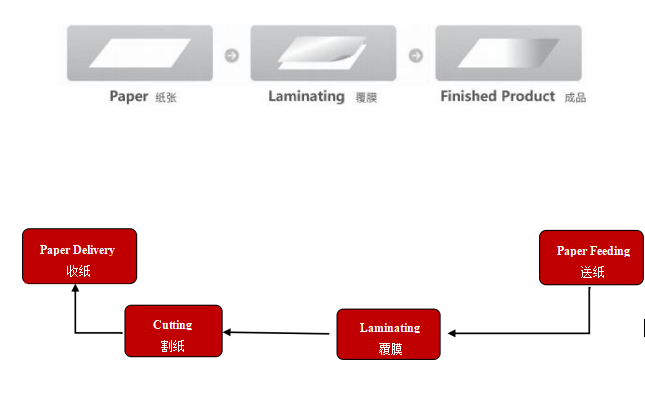

This series of automatic laminating machines offers two modes:

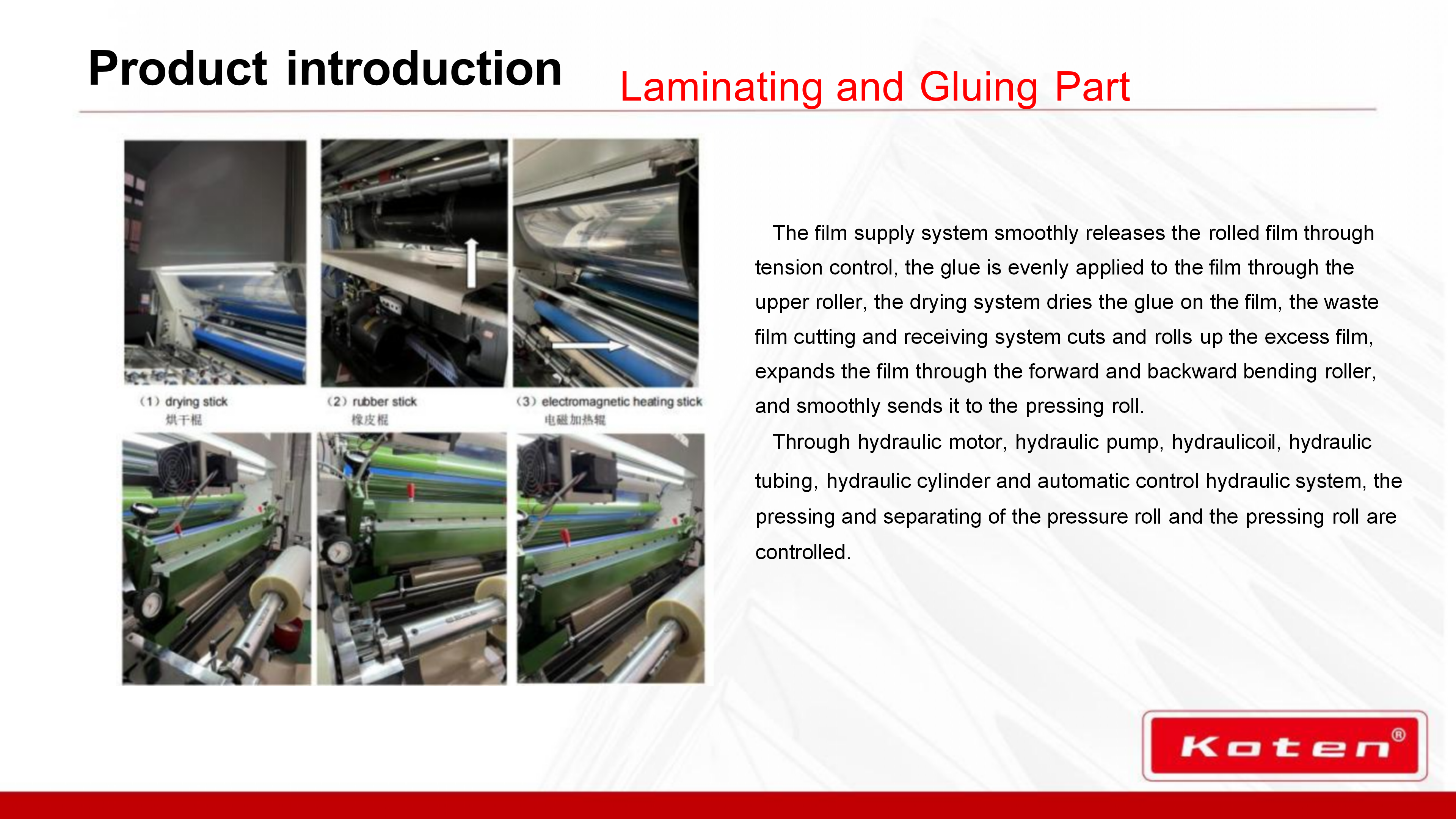

1、Coating mode (The plastic film is coated with water-based glue, dried, and then thermally laminated to paper);
2、Pre-coat mode (The plastic film is pre-coated with glue and only requires thermal laminating to paper).
As a professional device for plastic film laminating on the paper surfaces, it is widely used in: Paper products: posters, picture books, magazines, calendars, cards, tags .
Paper Packaging: gift boxes, cardboard boxes, paper handbags By enhancing product durability, it provides dust-proof, waterproof, and oil-proof protection, making it the optimal choice for printing enterprises to improve product quality.

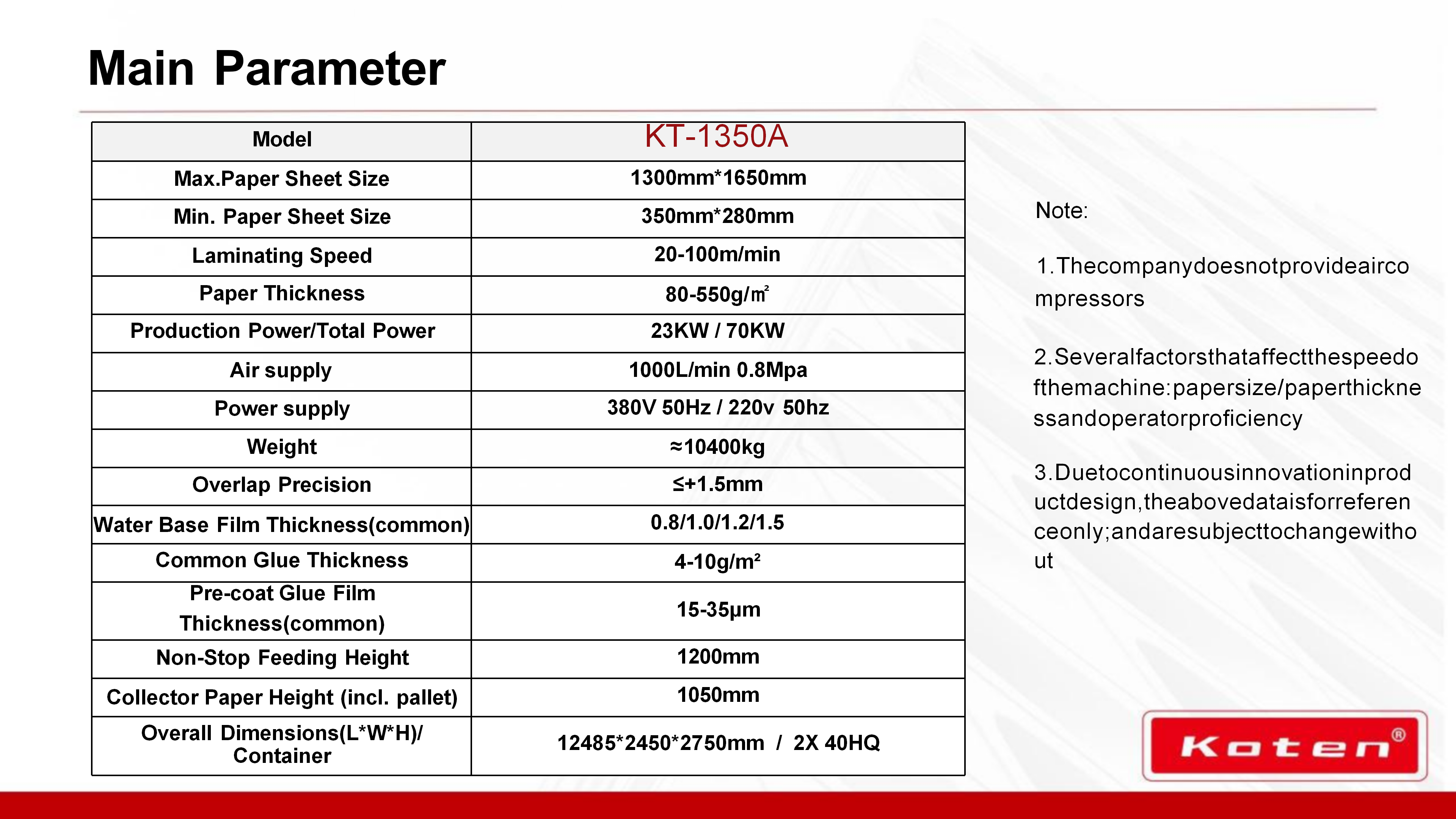

型号 | Model | KT-1350A |
最大纸张尺寸 | Max.Paper Sheet Size | 1300mm*1650mm |
最小纸张尺寸 | Min. Paper Sheet Size | 350mm*280mm |
覆膜速度 | Laminating Speed | 20- 100m/min |
纸张厚度 | Paper Thickness | 80-550g/㎡ |
生产功率 | Production Power | 23KW |
总功率 | Total Power | 70KW |
气源 | Air supply | 1000L/min 0.8Mpa |
电源 | Power supply | 380V 50Hz / 220v 50hz |

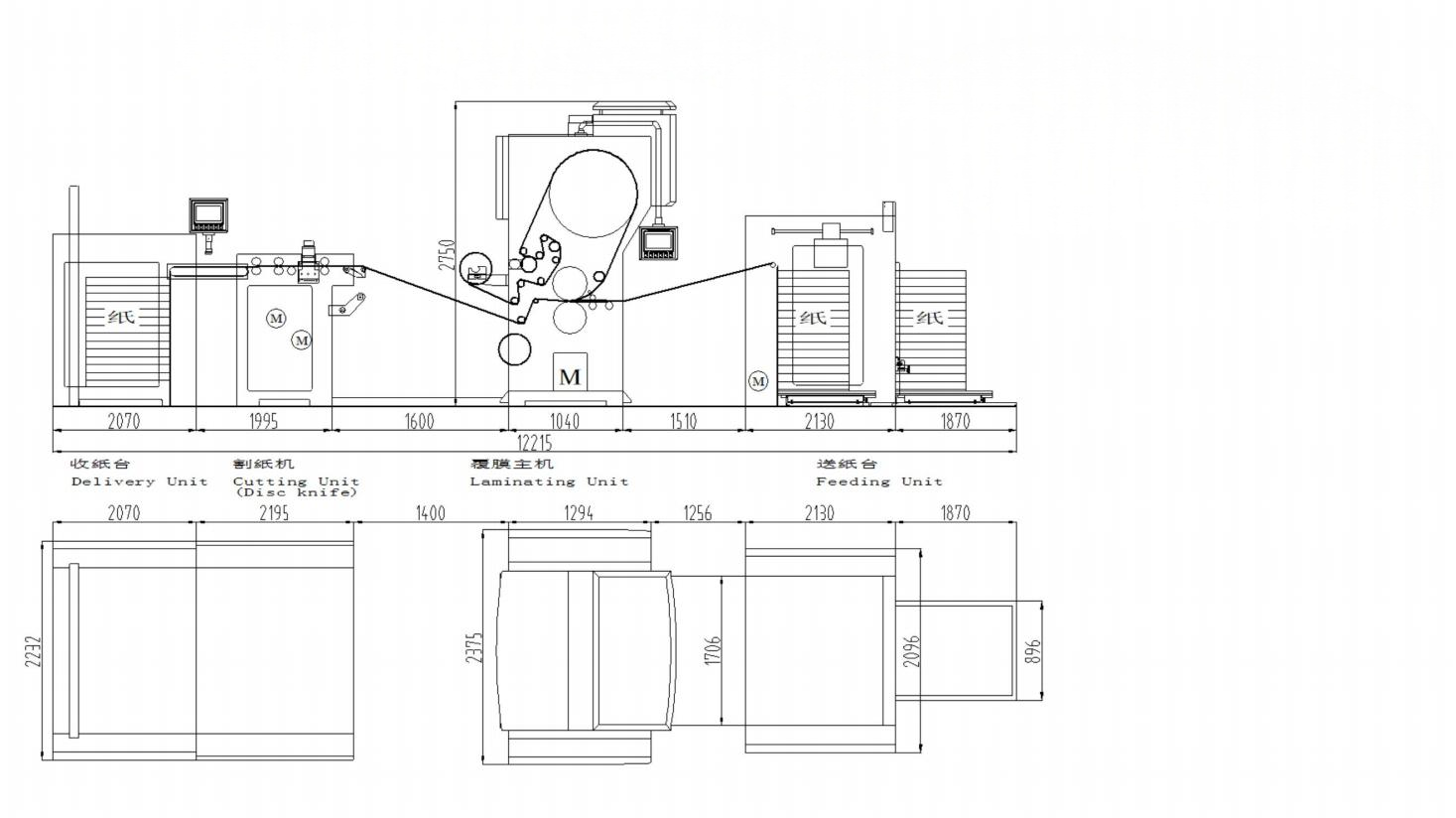

外观尺寸 | Overall Dimensions(L*W*H) | 12485*2450*2750mm |
重量 | Weight | ≈ 10400kg |
搭口误差 | Overlap Precision | ≤+1.5mm |
水基膜厚度 | Water Base Film Thickness(common) | 0.8/1.0/1.2/1.5 |
涂胶厚度 | Common Glue Thickness | 4- 10g/m² |
预涂膜厚度 | Pre-coat Glue Film Thickness(common) | 15-35μm |

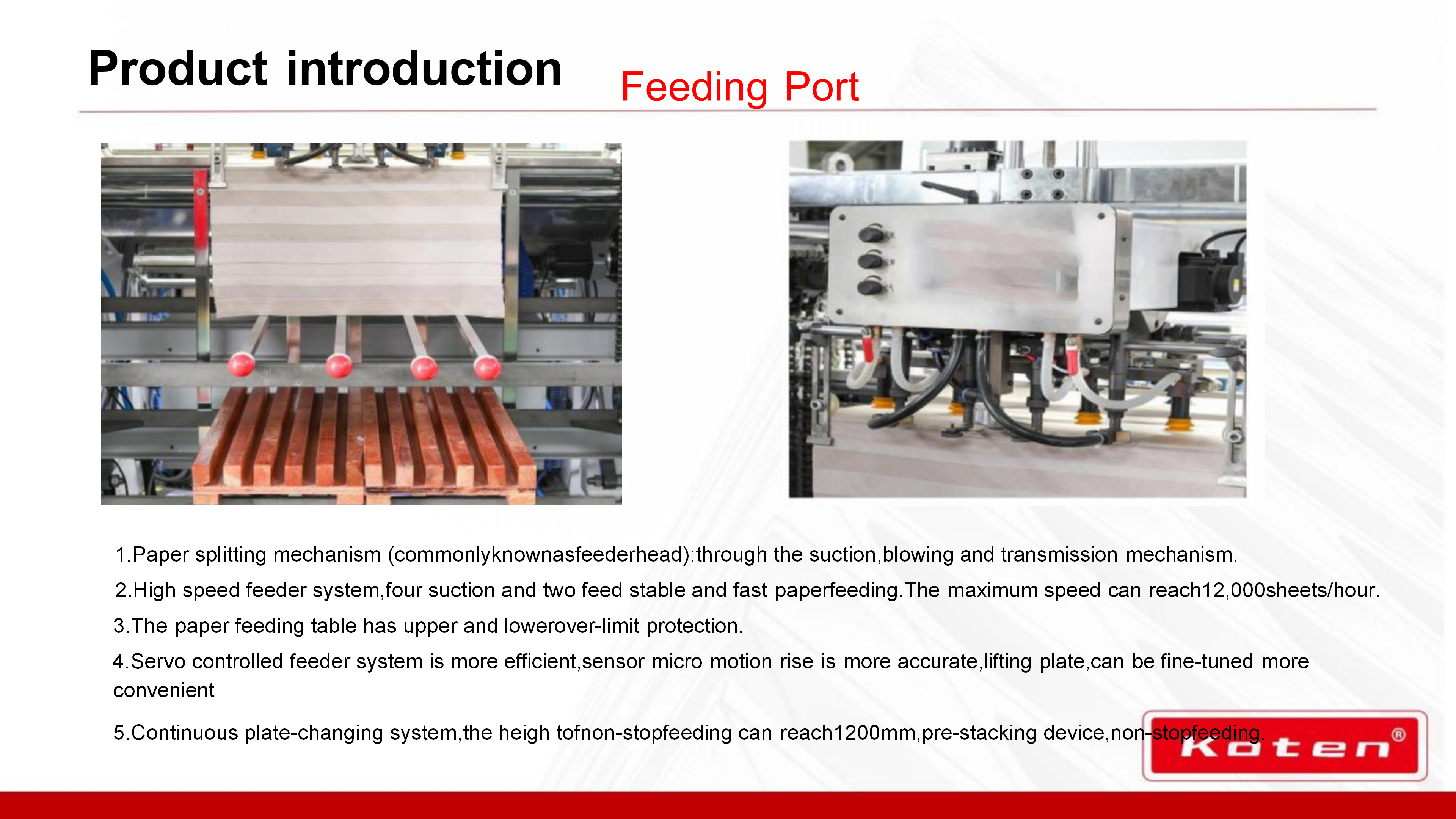

不停机送纸高度 | Non-Stop Feeding Height | 1200mm |

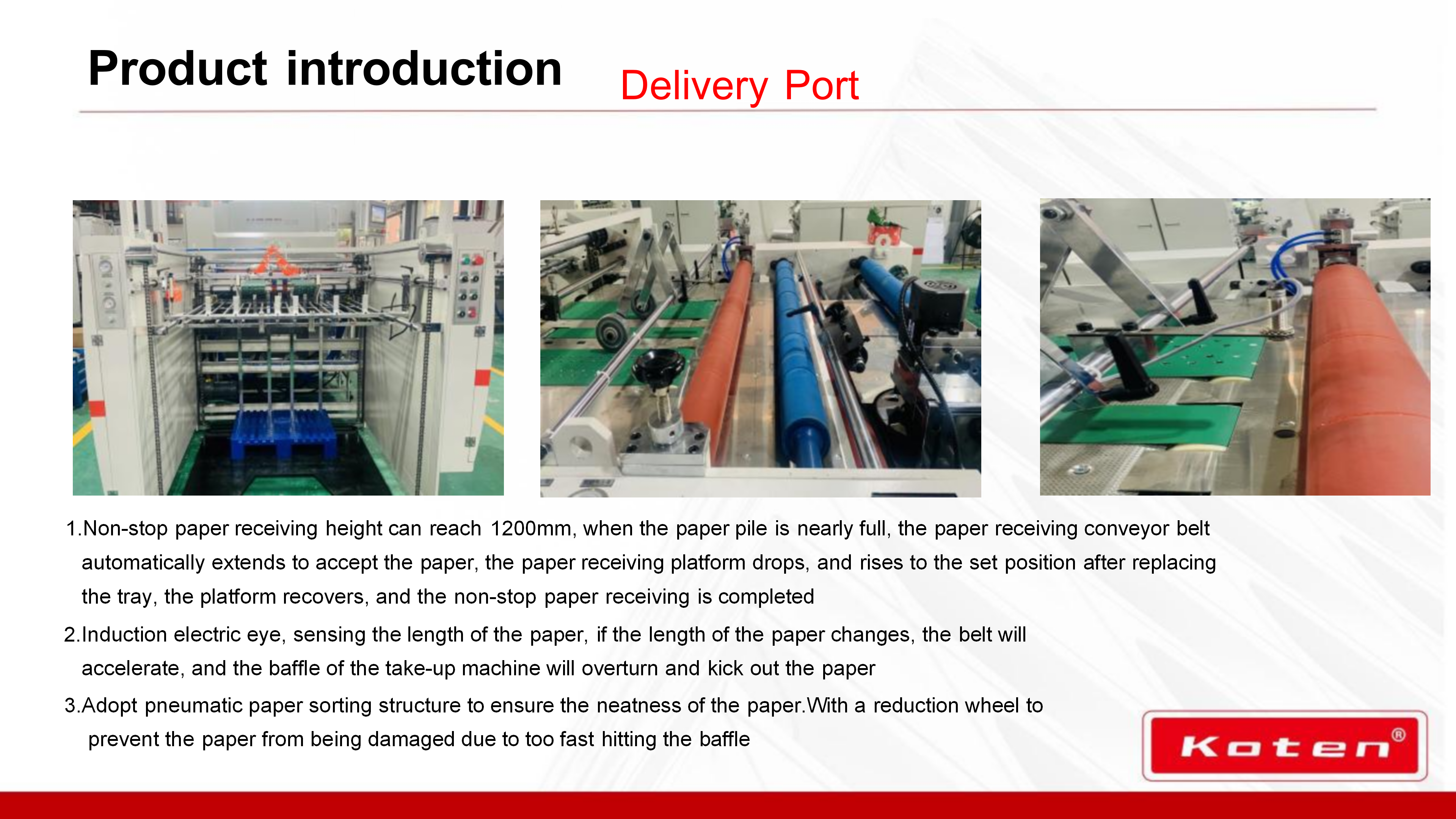

收纸高度 | Collector Paper Height (incl. pallet) | 1050mm |
装柜 | Container | 2X 40HQ |
HS 编码 | HS code | 8439300000 |
