ZDFM-1100J
KOTEN
Negotiable
1
T/T, L/C at sight.
10sets/month
By strong sea worthy package
after received 30% deposit.
China
3724
| Quantity: | |
|---|---|

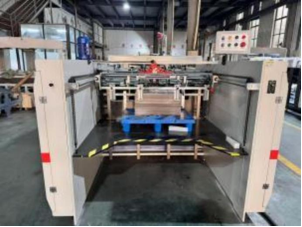

The Automatic Water Soluble Laminating Machine
ZDFM-1100J
Function and Features :
1. National Standard Compliance
Full-range mechanical design with safety protocols & components certified by China's High-Tech Industrial Standards.
2. Unshakable Stability
Cast iron mainframe ensures vibration-free, ultra-stable operation even under heavy-duty cycles, more than 20 years lifespan.

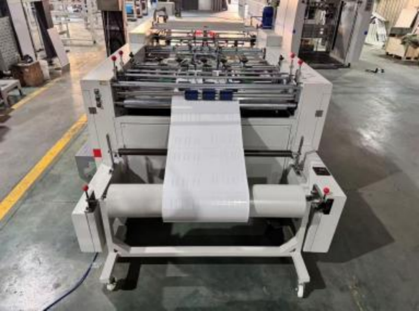

3. Precision Paper feeding
Servo-controlled feeder system guarantees smooth, jam-free paper transport with automatic adjustment.
4. Smart Alignment Technology
Servo-driven paper alignment mechanism achieves ± 1.5mm positioning accuracy for flawless edge matching.
5. Core components from world leaders
Electrical systems: Schneider Electric (FR), Omron (JP).
Model | ZDFM-1100J |
Max.Paper Sheet Size | 1050mm*880mm |
Min. Paper Sheet Size | 350mm*290mm |
Laminating Speed | 10-90m/min |
Paper Thickness | 120-400g/㎡ |
Production Power | （6.6KW）+（2.8KW） |
Total Power | 10.3KW |
Air supply | 1000L/min 0.8Mpa |
Power supply | 380V 50Hz / 3P4W |

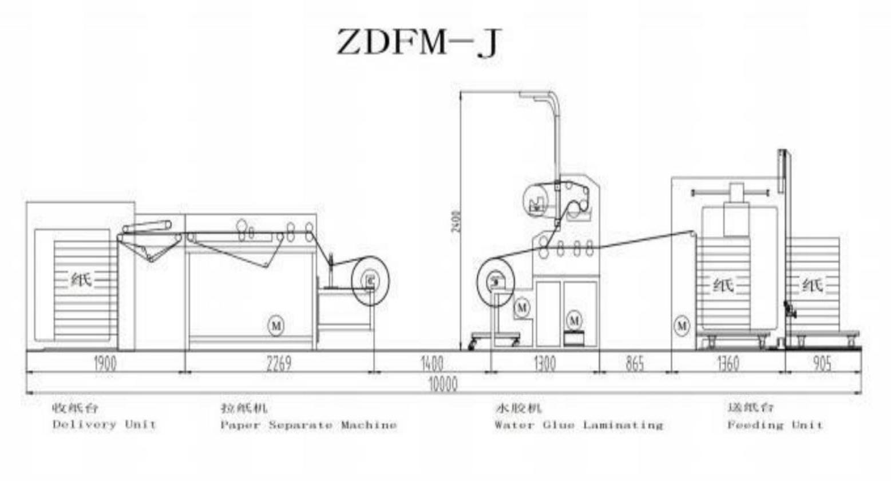

Overall Dimensions(L*W*H)-Part1 | 4700* 1800*2400mm |
Overall Dimensions(L*W*H)-Part2 | 4500* 1800* 1750mm |
Weight | ≈5000kg |
Overlap Precision | ≤+1.5mm |
Water Base Film Thickness(common) | 0.8/1.0/1.2/1.5 |
Common Glue Thickness | 4-10g/m² |
Non-Stop Feeding Heighten | 1100mm |
Collector Paper Heighten (incl. pallet) | 1000mm |
Container | 40HQ |
HS code | 8439300000 |
