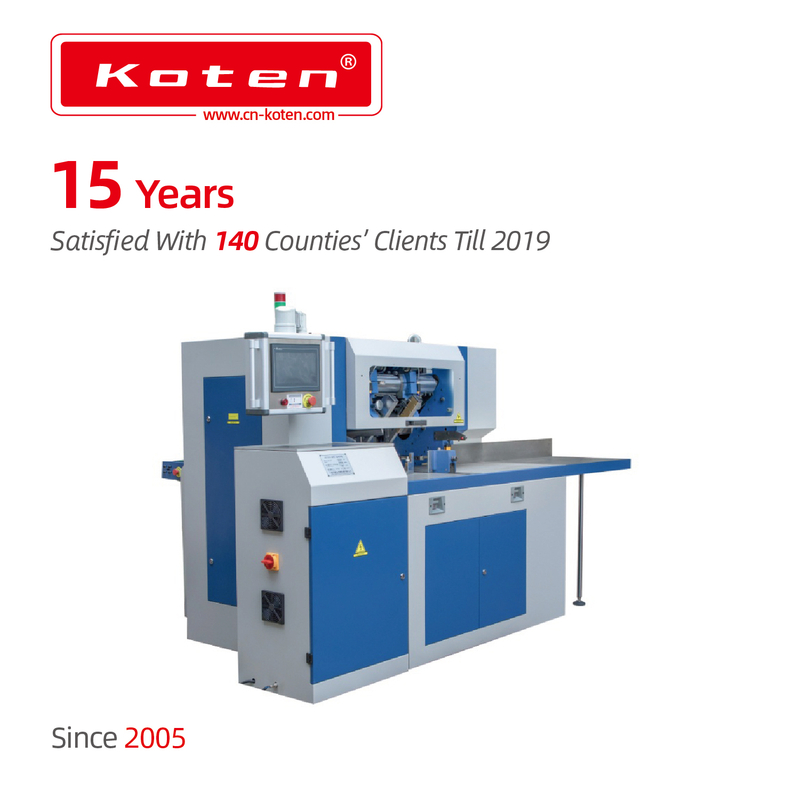

Three Knife Trimmer

Three Knife Trimmer

Outstanding Features:

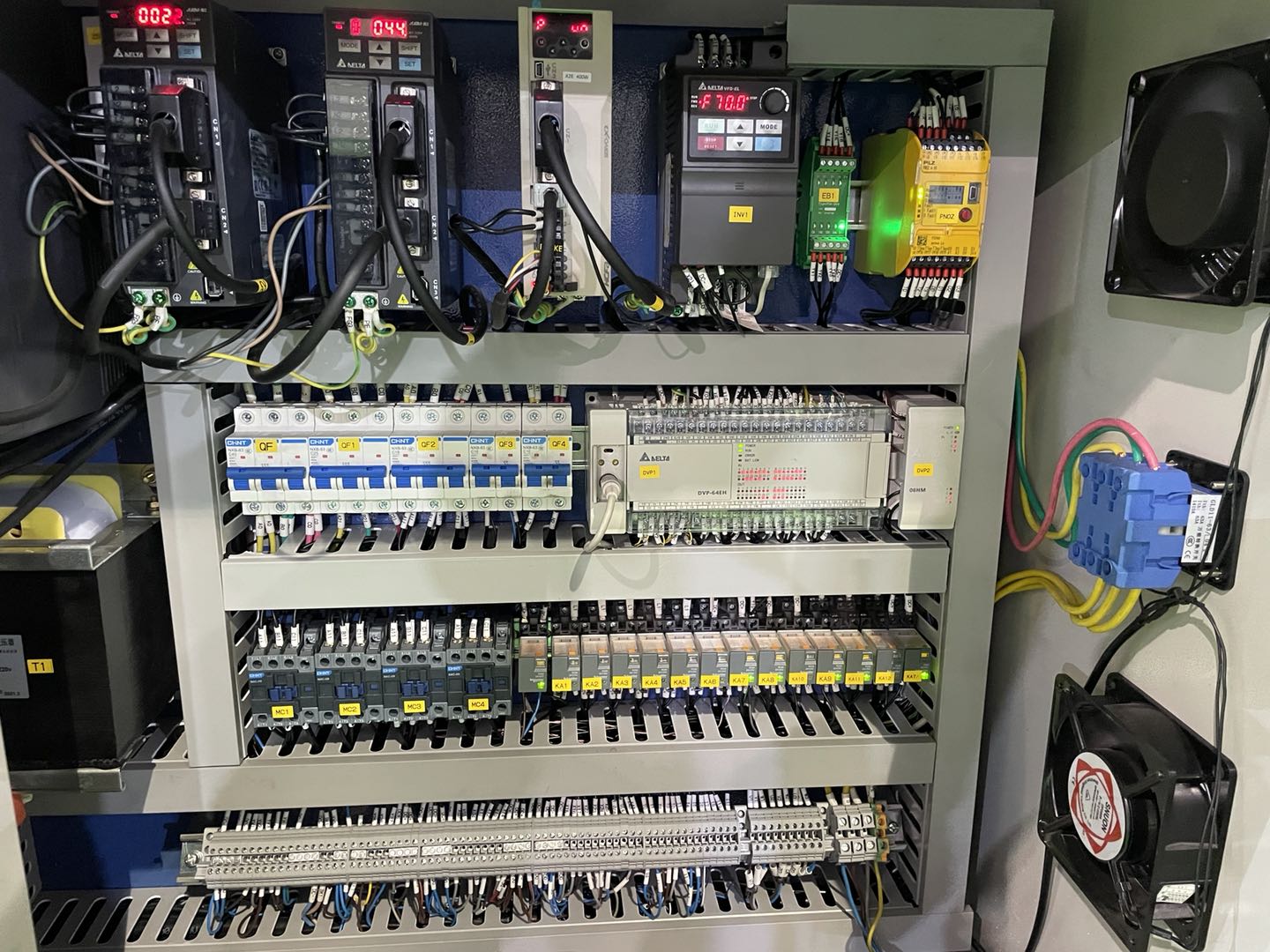

1: The host adopts a servo transmission system, which can accurately match the operation accuracy of other parts of the machine and the protection of torque setting, greatly improving the cutting accuracy and service life of the machine.

2: choose high-precision two-track tracks for the operation of the book delivery car(infeed of book), which greatly improves the service life and accuracy. Servo system work for transmission of the book delivery car, which can automatically adjust the distance to the front knife, completing the cutting size on the touch screen, which is convenient, accurate and durable.

3: The active part of the book delivery car(infeed of book) is completed by high-precision track, which is accurate and durable. The book clip power is controlled by Festo cylinder and program control.

4: The side knife is controlled by the motor, encoder and ball filament rod, which can be set on the touch screen to complete the automatic adjustment of the side knife. It is equipped with automatic loosening side knife function and automatic locking side knife function (patent).

5: Plate is drawer plate, the bottom is equipped with a straight rail, and the replacement specifications are extremely convenient and efficient. And it is equipped with an automatic induction recognition system, which can avoid the risk of not matching the spelling and cutting specifications when automatically adjusting specifications. It is equipped with the touch screen reminder function and locking machine protection in case of error.

6: Press of books can be automatically adjusted on the touch screen.

7: The mechanical book arranger is controlled by a high-precision rail and servo system.Can automatically adjust the specification on the touch screen. The adjustment is convenient, accurate and durable.

8: The book pressing device is equipped with an upper pressure device, which is durable, stable, and the pressure spring is not easy to damage. (patent)

9: The touch screen interface is equipped with a trial program, which is the self-inspection function of the debugging stage. The risk of the impact knife is minimized.

10: The machine has a single-person operation mode and multi-person operation mode, which can be freely converted. ( Single-person operation mode means that books and periodicals are sent in the machine operation surface and sent back to the operation surface after cutting. Suitable for small-volume product production).

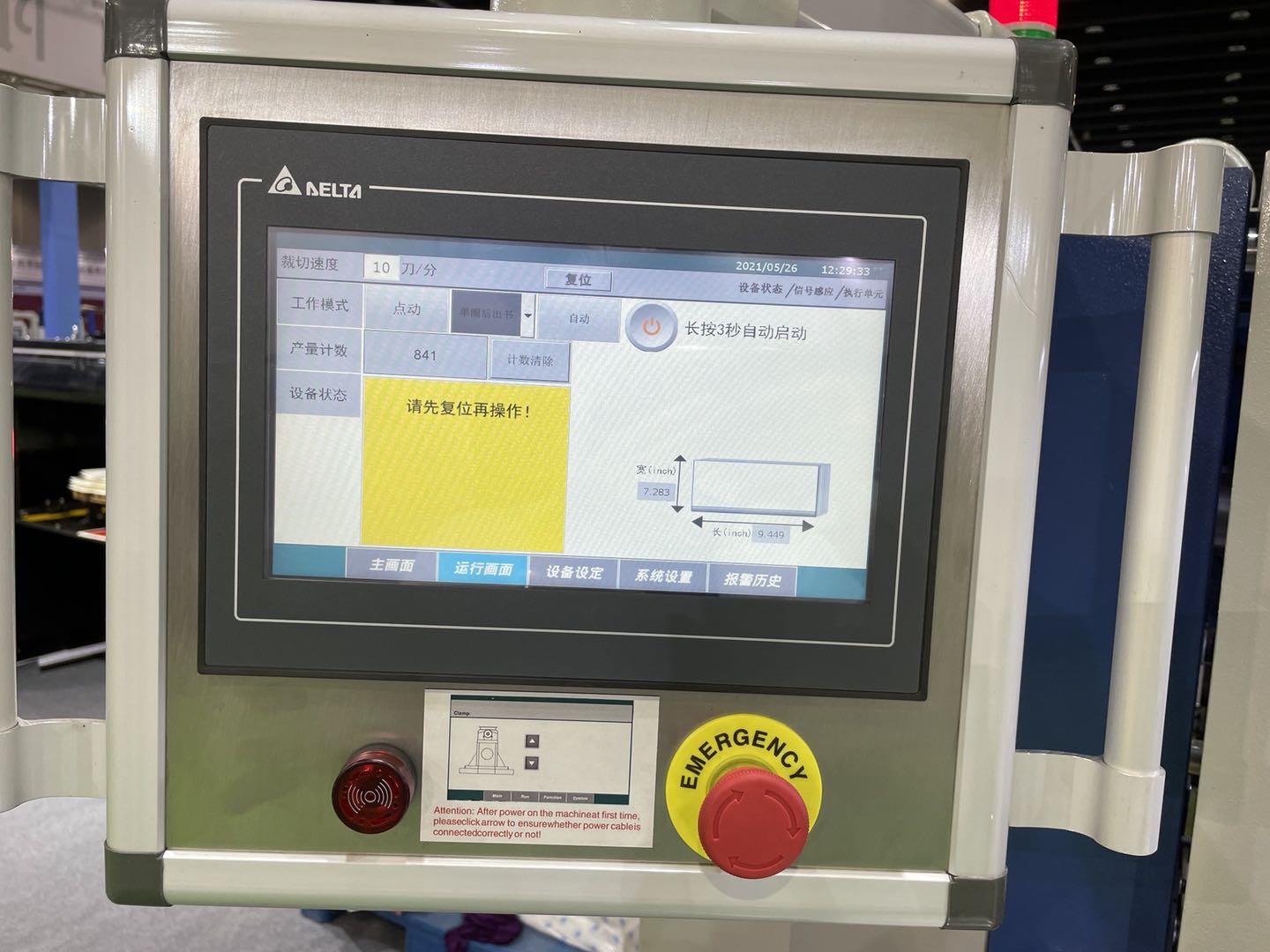

11: Use touch screen can fully automatically adjust the specifications of the front knife, side knife and mechanical book arranger. And it has the function of order memory, which can be freely saved or deleted, and the number and note name can be freely set so that it can be efficiently transferred and used the next time the same order is made.

12: The machine is equipped with sensor for automatic continuous cutting, and the sensual time can be freely set according to the operator's willing.

13: Equipped with a front knife quick knife installation device and side knife quick knife installation device.

14: Equipped with a device to prevent the broken spine of the book. (more than 150mm is effectively).

15: front knife waste paper blowing device, side knife waste paper blowing device.

16: The machine is equipped with a gas supply pressure detection system. When the air pressure cannot reach the  pressure required by the machine, the touch screen display reminder and stop.

17: the finished cut product is output by a book transfer device.

18: The whole machine is equipped with an automatic fuel supply system.

19: The whole machine is equipped with a oil pallet, which avoids the occurrence of external droplets and leakage of lubricants from the ground.

20: Each door is equipped with a protective switch, and the machine automatically stops running when the cover door is opened.

21: the operating surface is equipped with photoelectric protection or grating protection device.

Process.

Technical Parameter:

Model	QS-100B	New QS-100C	QS-1020
Max. Cutting Size	380x300mm	420x300mm	1020x300mm
Min. Cutting Size	80x80mm	80x80mm	360x130mm
Cutting  Height	5-100mm	5-100mm	5-15mm
Speed	17-25times/min	20-28times/min	60times/min
Power	3.5kw	6.2kw	5.5kw

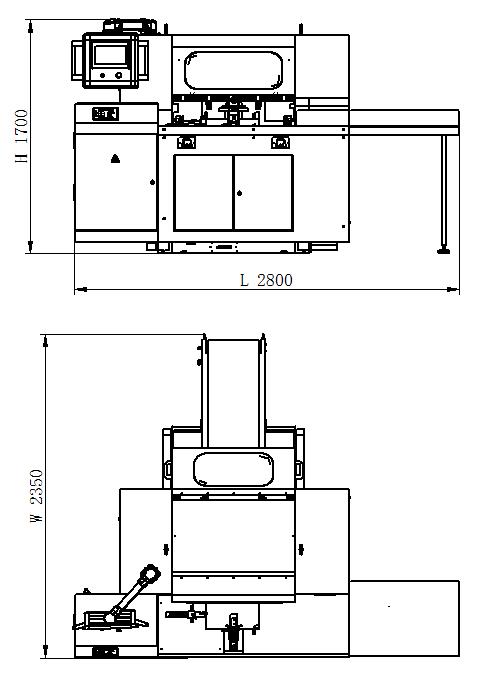

Dimension	1.94x2.17x1.6m	2.3x2.05x1,7m	4.3x2x1.7m
Net Weight	1950kgs	3000kgs	5500kgs
