Water Based Film Laminating Machine

Name: Water Based Film Laminating Machine
Brand: Koten
Rating: 5.0 (83 reviews)

Model:
SFM-1200B
Brand:
Koten
Model:
SFM-1200B
FOB Price:
Negotiate
Min.Order Quantity:
One set
Payment Terms:
T/T, L/C At Sight.
Supply Ability:
100sets/month
Packaging:
By strong seaworthy wooden cases.
Delivery Time:
Within 30 days after get the deposit.
Place Of Origin:
China
Views:
234

Quantity:
Availability:





Inquire Add to Basket

Details

Introduction.

SFM-B of laminating machine is a environmental protective glue and BOPP film laminator which is designed and manufactured according to the market needs.

The product after being compounded and pressed, has the merits of high degree of transpn-bubble etc.

And is equipped with an imported transverter, self-cutting and a quick finishes rolling-up and pushing-out processing system. Stable in performance, high speed and energy-saving.

Application Scope.

The machine adopts pre-glued film for the lamination of packing bags, books,retroperitoneal press work,advertising film, maps and drawings etc.

Function.

The laminated products will be water-proof, durable, of clear picture and spatial effect.

Paper Thickness.

This machine is suitable for lamianting paper with thickness range 105-500gsm.

Main Specifications.

Model	SFM-1000B	SFM-1200B
Max. Paper Size	950mm	1050mm
Temperature	60-130	60-130
Paper Thickness	105-500g/m2	105-500g/m2
Max. Laminating Speed	0-45m/min	0-45m/min
Main Power	5.5kw	5.5KW
Total Weight	150kg	170kg
Dimensions	2750x1550x1450mm	2750x1650x1450mm

Parts.

Film Laminating Machine

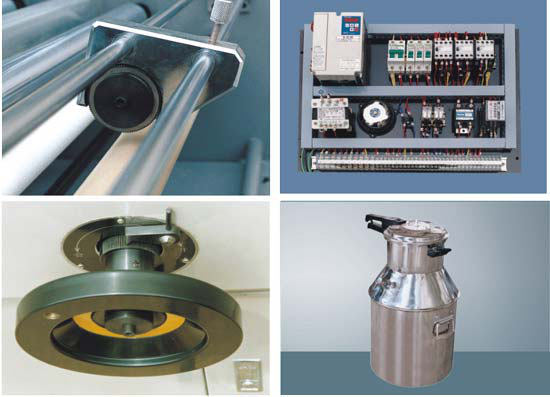

Elements Picture.

Film Laminating Machine

Main Features

1. CE certificate

2. Manual paper feeder,Oil heating,

3. Paper regulating plate is adjustable upon paper size.

4. Heating method: Electrical tube heater makes temperature rise quickly, and the temperature is adjustable upon laminating requests.High accuracy intelligent homothermal heating system guarantees even temperature of heating roller.

5. Pressuring method: Automatic penumatic system provides big pressure, and the pressure is adjustable upon laminating requests.

6. Film cutter: If width of film roll is longer than paper’s width or length, then film cutter can cut the redundant film.

7. Perforating wheel perforates holes on film edge for automatic cutting to laminated paper.

8. Paper receiving table: Cut paper is sent to paper receiving table. Height of the table is adjustable.

The BOPP Cold Laminating Machine are used for laminating aquo-solvable environmental protective glue and BOPP film. The product after being compounded and pressed, has the merits of high degree of transpn-bubble etc. And is equipped with an imported transverter, self-cutting and a quick finishes rolling-up and pushing-out processing system. Stable in performance, high speed and energy-saving.

Equipment--AUTOMATIC PAPER CUTTING MACHINE

LZ series Separating and Cutting Machine is a kind of corollary product for laminating machine and is suitable for automatically separating and cutting

various papers laminated on singlepaper laminating machine.With such characteristics as compact structure, high speed, high efficiency,simple and reliable

operation and smooth running, etc,This machines a kind of accessory equipment used in printing plant for improving laminating efficiency.

Technical Variables.

Model	LZ-1000	LZ-1200
Max. Cutting size	950x1000mm	1120x1000mm
Min. Cutting length	400mm	400mm
Speed	80m/min	80m/min
Power	1.5kw	1.5kw
Machine weight	500kgs	600kgs
Machine size	3.35x1.45x1.1m	3.35x1.65x1.1m

Koten Machines Container Loading.

Film Laminating Machine packaging
140 Countries Clients Who Has Koten Brand Machines Till 2019.
Film Laminating Machine customers

FAQ.

1. Why choose us to cooperate?

Factory prices, flexible payment terms and professional quality inspection team which has the guarantee for machines, in time after sales service, and more than 15 years experience for exporting. Reputation and quality is what we are considering all the time.

2. Guarantee.

There is 12 month guarantee of each Koten brand Machines since customer got the machine. Within one year, the damaged spare parts can be changed for free, and we provide lifetime technology support on line.

3. Delivery Time.

Within 7-30 days after get the deposit. Depends on different machines.

4. What is your package?

What the package we use is strong seaworthy wooden cases. Each machine will be protected by anti-rusted oil before put into the case and there are desiccants will be packed into the machine together.

5. Do you have Installation and Training service if we bought the machines from your company?

The training service will be done by our agency dealer in some countries. If customers request us to dispatch our engineer to their country for installation and training, customers should take all necessary cost, like return flight tickets, hotel, food and salary USD100/day. If customer dispatch their engineer to our factory for training, it is free.

6. Have you sold any machines to our country?

We have to say that there are 140 countries' customers who have the "KOTEN" brand machines till 2019. Pls check with the sales manager to get more information if you need the machines' feedback.

7. What is your payment terms?

T/T. If the amount less than USD30,000.00, 30% paid in advance as a deposit, 70% balance paid before shipment.

L/C. If the sales amount above USD30,000.00, 30% paid by T/T as a deposit, 70% balance paid by irrevocable L/C at sight.

By Cash, by western union, credit cards are acceptable.

Special country like Bangladesh or Algeria can be available for 100% by irrevocable L/C at sight.

8. What your company can offer?

Exercise Books Making Solutions.
Soft Cover Books Making Solutions.
Hard Cover Books Making Solutions.
Spiral Books Making Solutions.
Postpress and Paper Converting Solutions.
Paper Box Making Solutions.
Rigid Box Making Solutions.

Paper Bag Making Solutions.

Exhibitions and Customers'Meeting.

Factory Production.
Film Laminating Machine factory
